Heavy-duty DN500 Ball Joint Released for Cutter Suction Dredger

DEYUAN proudly announces the successful production of its DN500 dredger ball joint, engineered for heavy-duty slurry pipeline systems in modern dredging operations. Designed for high-pressure and abrasive environments, the ball joint provides a flexible and reliable connection that ensures smooth rotation, stable sealing, and long-term performance even under continuous movement, pump vibration, or uneven terrain.

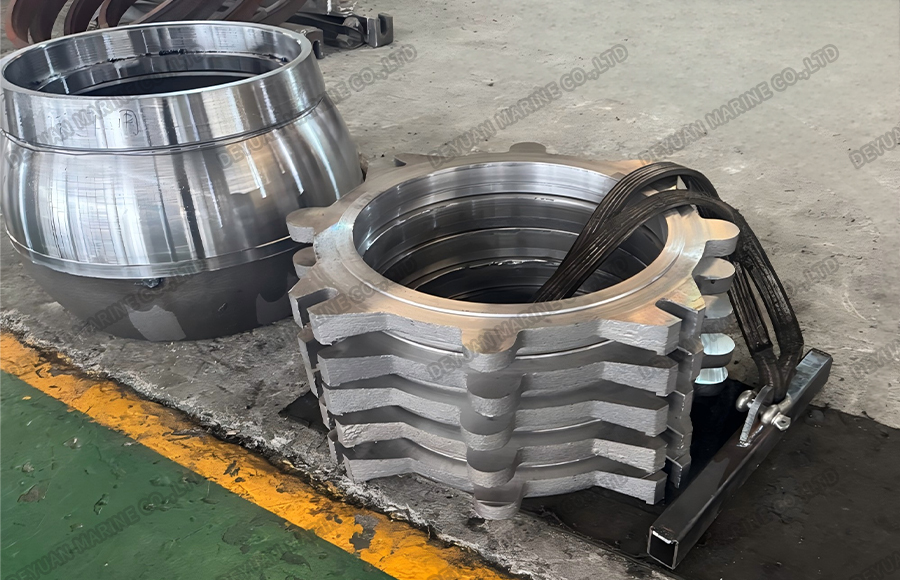

Dredger ball joint is a critical component for cutter suction dredgers, floating pipelines, side discharge lines, and booster station connections. It consists of three main parts: the female part, the male part, and a retaining ring that securely locks the male component in the female housing while allowing controlled angular movement.

The spherical structure minimizes stress concentration, and the internal contact surfaces are made of wear-resistant material to withstand erosion from sand, gravel, and slurry flow. Precision-machined sealing surfaces ensure reliable performance under high pressure and extended operation.

Main Technical Specifications:

• Inside pipe diameter range: 400 – 1200 mm

• Standard size: DN500

• Working pressure: 10 – 30 Bar (Standard 10 Bar)

• Tilting angle of male part: 15°, 18°, or 22.5° (Standard 15°)

• Connection type: Welding / Flange connection available

• Structure type: Spherical ball and socket with retaining ring locking system

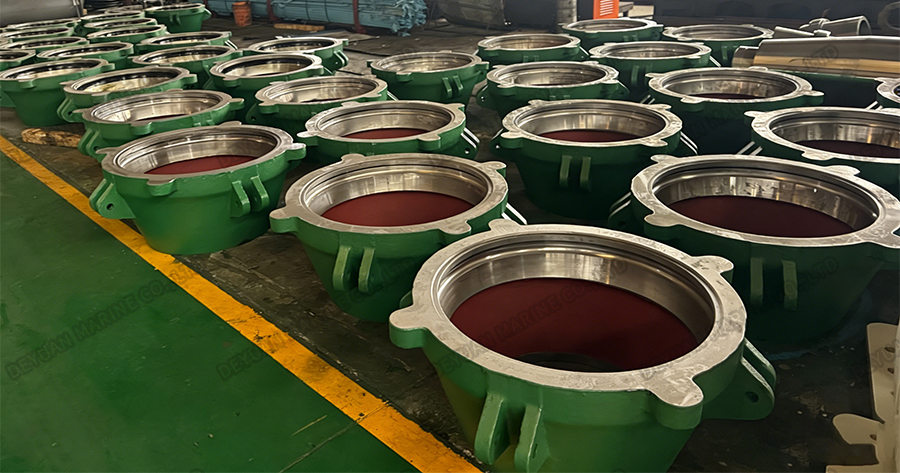

DEYUAN DN500 ball joint is manufactured through a complete production line, including mold preparation, precision machining, assembly, testing, and packing, with strict quality control at each stage. Special attention is given to retaining ring installation to guarantee both safety and angular flexibility, making dredger ball joint ideal for heavy-duty dredging pipelines where both strength and flexibility are essential.

Main production steps:

• Mold making for casting components – Preparing precise molds to ensure accurate geometry of the main body.

• Steel casting fabrication – Casting high-strength steel components to form durable rough parts.

• CNC machining of spherical surfaces – Precision machining of ball and socket surfaces for smooth rotation and uniform contact.

• Welding or flange end preparation – Processing connection ends to meet pipeline integration requirements.

• Installation of wear liner and sealing parts – Adding abrasion-resistant liners and high-performance sealing elements.

• Assembly of male, female, and retaining ring – Carefully assembling all components to ensure correct fit and function.

• Rotation adjustment and alignment – Testing and adjusting movement to guarantee smooth angular operation.

• Pressure testing – Verifying sealing performance under working pressure conditions.

• Surface treatment and packing – Applying corrosion protection and preparing for safe delivery.

Built from high-strength cast steel, DEYUAN DN500 dredger ball joint is engineered to withstand heavy loads and harsh operating conditions. Combined with precision machining and careful assembly, each unit meets rigorous quality standards, ensuring smooth rotation, reliable sealing, and long-term performance in demanding dredging, floating pipeline, and slurry transport operations.

Each ball joint is tested before delivery, including:

• Dimensional inspection

• Rotation test

• Pressure test

• Sealing inspection

• Final appearance check

These procedures ensure reliable performance in demanding dredging environments.

Typical Applications:

The ball joint is widely used in dredging and marine pipeline systems, including:

• Connection between floating pipelines

• Connection between pontoons

• Ship-to-shore pipeline connection

• Side discharge pipeline

• Pipeline installation on mountainous or uneven terrain

• Dredger outlet and booster station connection

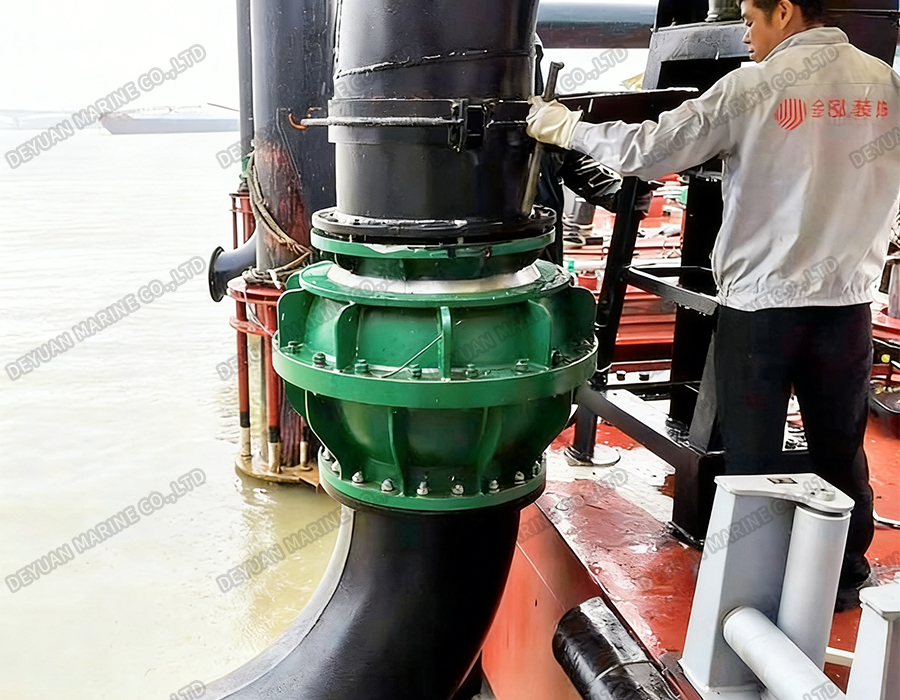

The DN500 dredger ball joint can be quickly integrated into floating pipelines, pontoons, or ship-to-shore connections. Its spherical design accommodates movement and vibration from floating platforms or uneven terrain, while the retaining ring and precision sealing ensure secure, leak-free operation.

Real-World Example：

For example, in a recent Russian tender project, 36pcs ball joints were required for a dredging pipeline system within a tight schedule. After receiving the order, drawings were prepared without delay and a dedicated production line was arranged to keep the manufacturing progress stable. Production continued even during holidays to make sure the delivery time would not be affected.

We strictly followed our standard production procedure, including casting, machining, assembly, and inspection. During the whole project, we carried out 36 tests before shipment to make sure each joint met the required performance, as we always put quality in the first place.

Weekly photos and videos were shared with client, who is closely monitoring progress and expresses confidence in the quality and timely delivery, with further cooperation expected in the next project stage.

Committed to quality and innovation, DEYUAN provides DN500 dredger ball joints for global slurry pipelines and welcomes customers to inspect production and verify standards firsthand.
