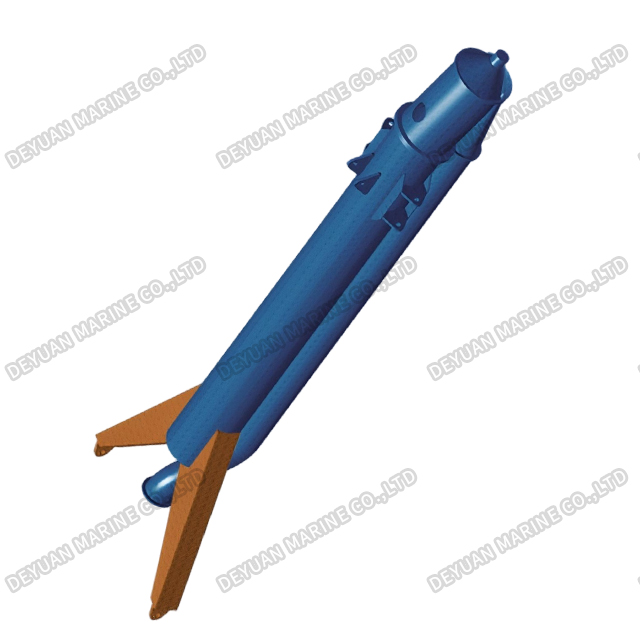

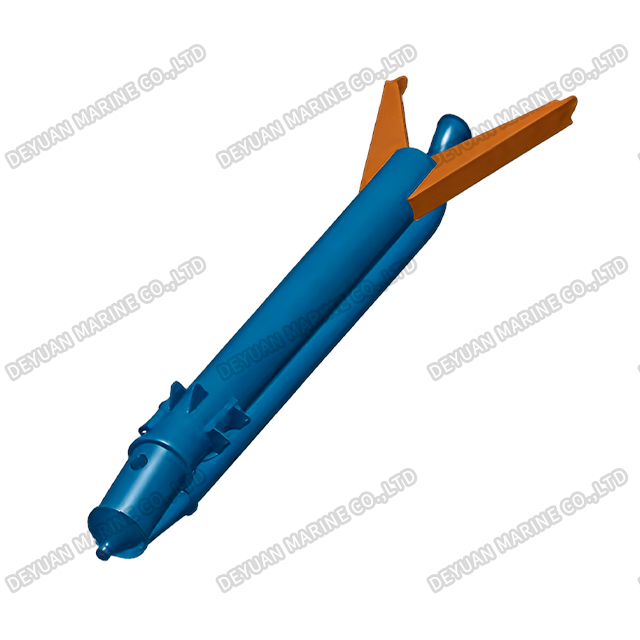

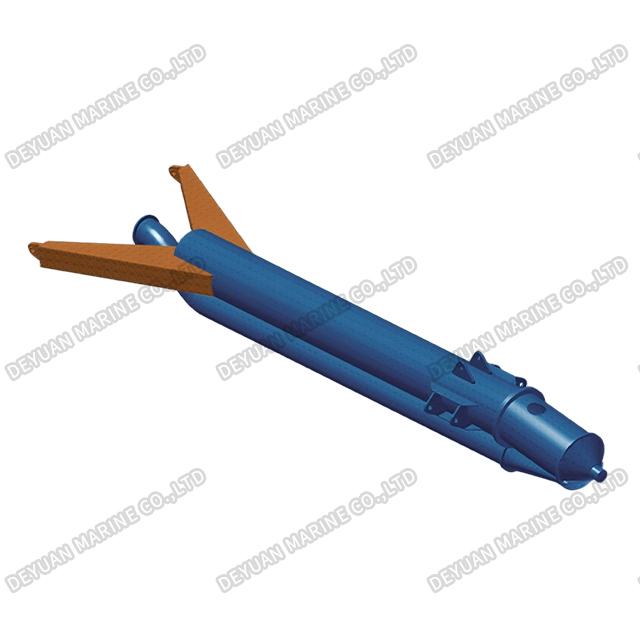

Cutter Ladder System For Cutter Suction Dredger
Product Introduction
Cutter ladder system includes driving system of cutter head, ladder, suction pipeline, etc. The cutter ladder system is provided with a rotating hinge point, which is connected with the fixed hinge point of the CSD. The cutter ladder system can rotate up and down with the hinge point.
The structure and form of cutter ladder system will be different according to different pump power and excavation depth.
The cutter head drive system can be divided into motor drive and hydraulic drive. According to different working power, single machine drive or multi machine drive can be adopted, no matter which method is adopted, the final output speed of the drive system is 0 ~ 30 r/min.

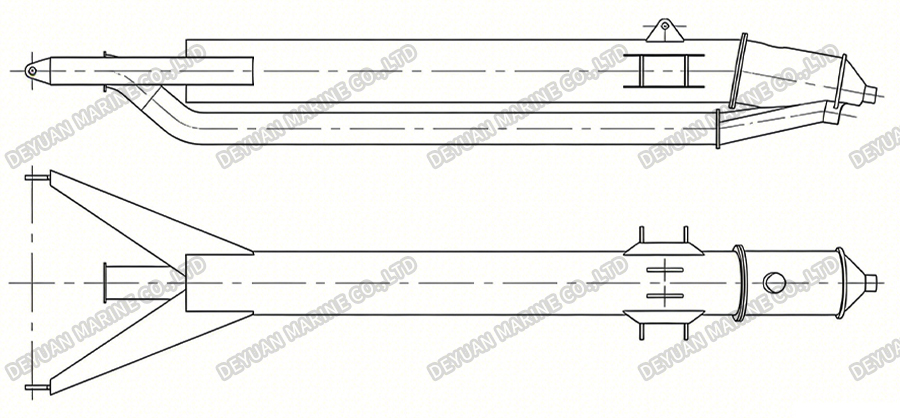

Drawing
Key Features & Benefits
*Robust Structural Design: Fabricated from high-strength steel with reinforced box-section construction, engineered to resist bending and torsional forces encountered during heavy-duty cutting operations.
*Integrated Suction Pipeline: Internally houses the suction pipe with optimized curvature to minimize flow resistance and prevent clogging, ensuring maximum slurry transport efficiency.
*Precision Bearing Mounts: Machined mounting surfaces for ladder pivot bearings and sheave systems, ensuring smooth articulation and precise cutter head positioning.
*Vibration Dampening: Reinforced internal stiffeners and strategic weld placement reduce operational vibration, extending component life and improving operator comfort.
*Modular Construction: Designed for transport and assembly convenience, with flanged connections allowing for length adjustments or replacement of damaged sections.
*Comprehensive Corrosion Protection: Multi-layer marine coating system with sacrificial anode protection for extended service life in saltwater environments.
Applications
Cutter Suction Dredgers (CSD)
Channel deepening and maintenance
Land reclamation projects
Offshore sand mining
Harbor and port construction
Hard rock and coral excavation
