Suction Mouth For Cutter Suction Dredger

Suction Mouth For Cutter Suction Dredger

Product Introduction

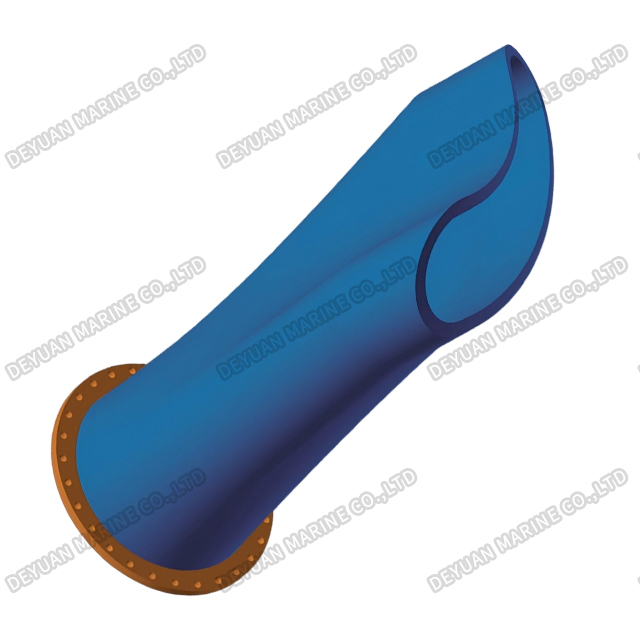

The Suction Mouth is a critical wear part attached to the suction pipe of Trailing Suction Hopper Dredgers (TSHD) or Cutter Suction Dredgers (CSD). Designed to maximize intake density while minimizing water intake, this component directly dictates the efficiency and profitability of your dredging operation. Engineered for the most demanding offshore construction and land reclamation projects, our suction mouth ensures optimal excavation of sand, gravel, and compacted soils.

Suction mouth can be welded or wear-resistant casted version

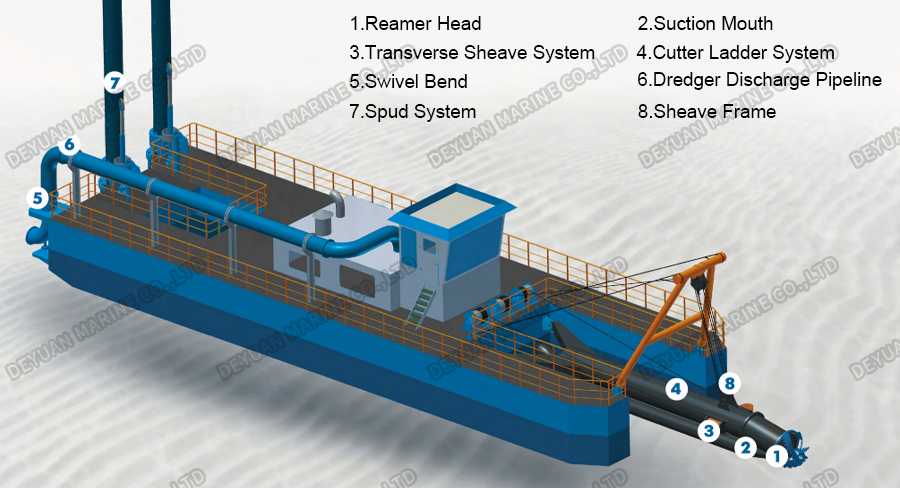

It is a cutter suction dredger component positioned behind the cutter head and on the front side of the cutter ladder of a CSD during extraction of non-cohesive material from the sea bottom.

The dredge suction mouth is produced with customized design for anti-wear resistance

The dredge suction mouth is produced with high accuracy and precise dimensions to fit in the cutter head and the suction pipe

The design of the dredge suction mouth is highly adaptable to the requirements of production allowing shorter delivery times

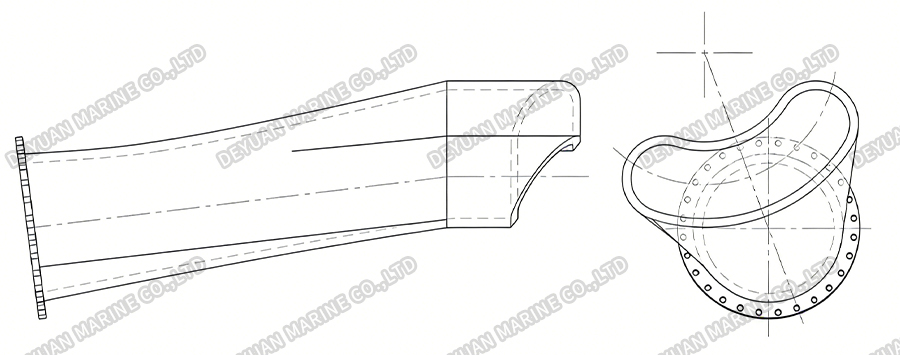

Drawing

Key Features & Benefits

*Optimized Flow Dynamics: The hydrodynamic design ensures a smooth flow of mixture into the suction pipe, reducing turbulence and pressure loss. This allows for higher slurry concentrations and faster loading times.

*Reinforced Wear Resistance: Constructed from Hardox 400/500 or equivalent high-strength wear-resistant steel, it withstands severe abrasion from continuous contact with the seabed. Reinforcement ribs and wear liners extend the service life significantly.

*Customizable Visor/Lip System: Equipped with a robust, replaceable visor (or cutting teeth depending on configuration). The visor regulates the intake opening to prevent clogging and optimize the water-to-soil ratio.

*Advanced Jetting Technology: Integrated high-pressure water jets fluidize compacted materials, increasing suction efficiency and preventing "sand boiling" around the mouth.

*Universal Compatibility: Designed to fit standard suction pipe diameters (ranging from 500mm to 1200mm+). Can be adapted to match IHC, Damen, or custom-built dredging installations.

Applications

Trailing Suction Hopper Dredgers (TSHD)

Cutter Suction Dredgers (CSD) – Suction Trunnion

Land Reclamation

Channel Deepening and Maintenance

Offshore Sand Mining

Heavy Mineral Mining
