Product Description

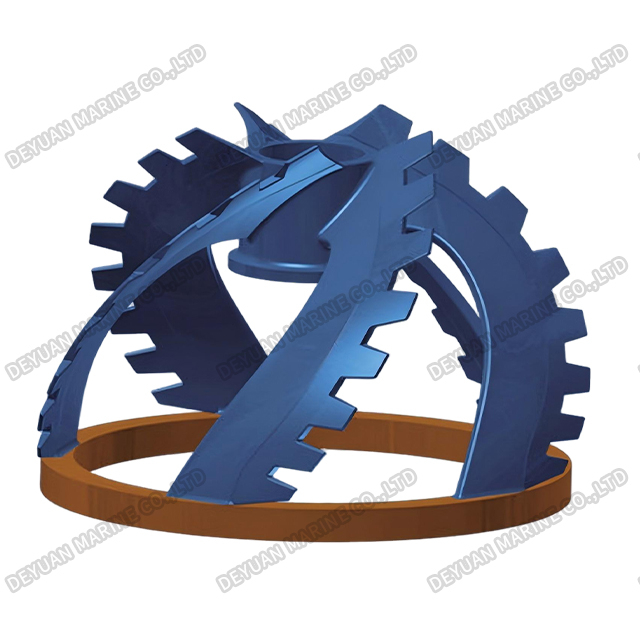

Cutter Suction Dredger Cutter Head
Product Introduction:

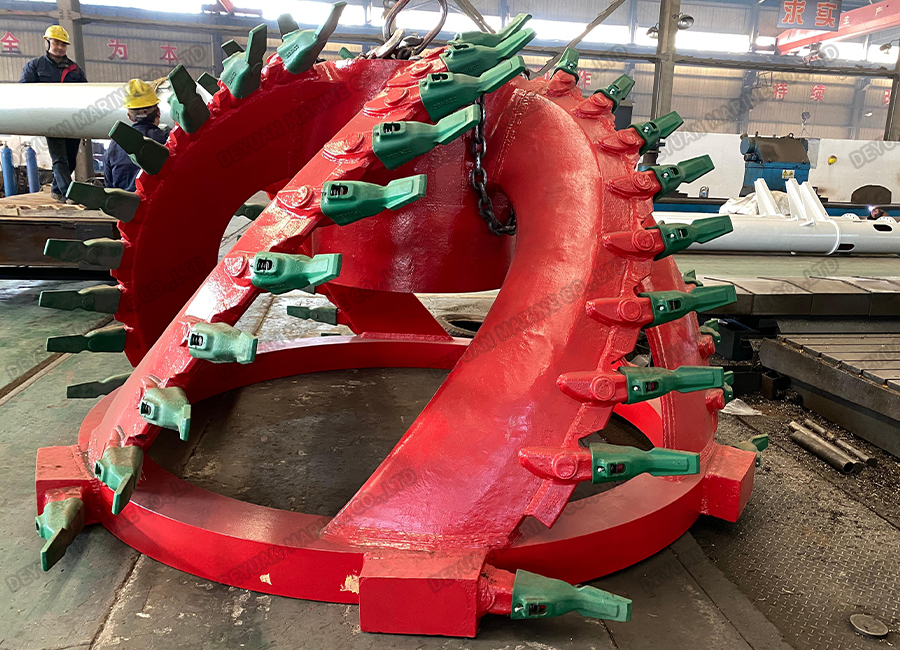

The cutter head is the core excavation component mounted at the forefront of a cutter suction dredger (CSD) . Its primary function is to rotate and cut through various types of soil and rock, breaking the material into fragments that are then drawn into the suction pipe as a slurry . Engineered for high productivity and minimal downtime, our cutter heads feature a refined tooth design and exceptional wear resistance . The replaceable tooth system allows for easy maintenance and quick replacement of worn parts, ensuring continuous operation in demanding dredging environments .
Cutter heads in the range of 30 kW up to 3,000 kW and for soil varying from sticky clay to rock.
Cutter head is one of the most important construction equipment of cutter suction dredger. The line shape of cutter head & the distribution and angle of cutter teeth have a great impact on the construction efficiency and production progress. The cutter head can be divided into five blades and six blades, and equipped with replaceable cutter teeth which can be replaced according to different soil conditions in order to improve production efficiency
The cutter heads can be tailor made to customer requirements or selected from the wide range of models available.

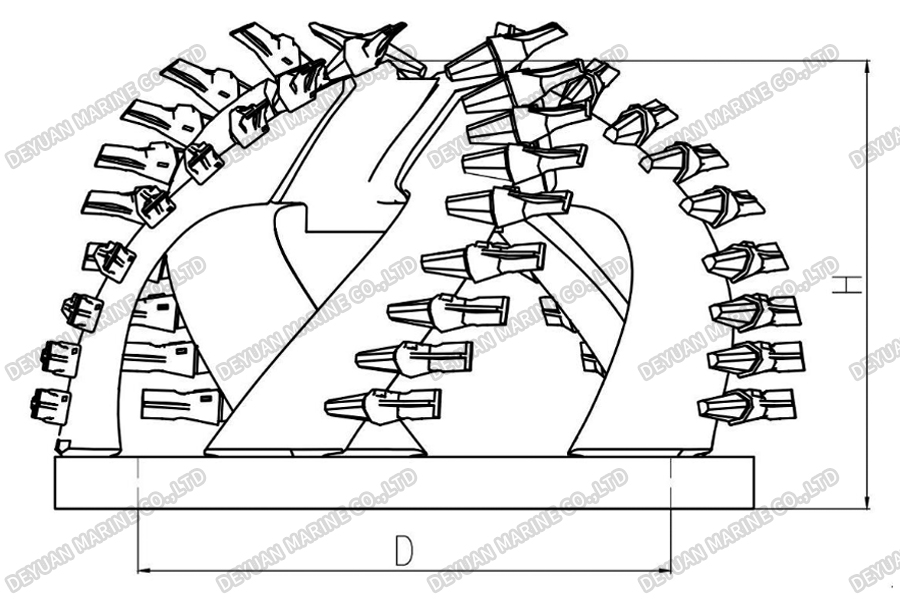

Drawing:
Specification parameters:
| Cutter Power | 30kw-3000kw |
| Cutter Rotating Speed | 0-30 or 40 r/min |
| Suction diameter | 300-1000mm |
| Cutter Head Diameter | 910-2730mm |
| Cutter Head Height | 810-1970mm |
| Cutter Head Blades Quantity | 5 or 6 |
| Any other dimension is available on request. | |
Key Features:
*High Cutting Efficiency: Designed to deliver a high output of dredged material, with cutting forces tailored for specific soil conditions from loose sand to hard rock .
*Robust Construction: Manufactured with high-strength steel arms and heavy-duty components to withstand extreme loads and abrasive environments .
*Customizable Configurations: Available in various diameters and power ratings (from 22kw to over 1000kw) to match different dredger sizes and project requirements . Types include multi-purpose, loose-sand, and light-duty rock cutter heads .
*Hydraulic Drive: Driven by a low-speed, high-torque hydraulic motor for reliable and powerful operation .
Applications:
Ideal for river dredging, land reclamation, port and channel maintenance, sand mining, and offshore construction projects .
