Product Introduction

The Bottom Door System is a fundamental unloading mechanism on any Trailing Suction Hopper Dredger (TSHD), designed for the rapid and efficient discharge of dredged materials directly to the seabed. Whether operating in open water disposal areas or for rainbowing applications, our heavy-duty bottom doors are engineered to provide reliable sealing, controlled opening, and complete material release under the most demanding conditions.

Bottom door is a dedicated loading bay dredged material (commonly known as the hopper) dump device

The form and amount of bottom door is generally based on the size of its hopper and the hopper unload speed.

Bottom door is generally installed in the bottom of the hull of a vessel can be opened and closed through human or mechanical (electrical, hydraulic). Different types of bottom door its control, opening and closing time (speed), the degree of opening of the open, dredged material by ability has its own characteristics.

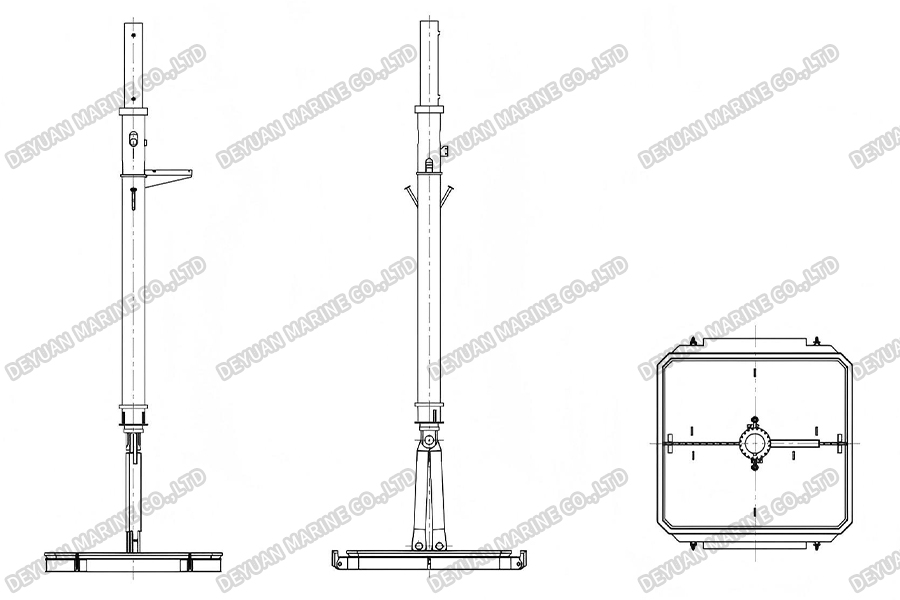

Drawing

Key features include

*Heavy-Duty Hydraulic Actuation: Powered by robust, corrosion-resistant hydraulic cylinders, the doors provide smooth, controlled opening and closing cycles. The system is designed for both quick-dump operations and partial openings for regulated material release, ensuring versatility for various dredging projects .

*Leak-Proof Sealing Design: Precision-machined sealing surfaces, combined with high-abrasion rubber seals, ensure a watertight closure during loading and transit. This prevents the loss of fine materials and maintains the vessel's draft stability while sailing to the disposal site .

*High-Strength Structural Integrity: Fabricated from high-tensile marine-grade steel (such as AH36), the doors are designed to withstand the immense hydrostatic pressure of a fully loaded hopper and the dynamic stresses of repeated opening cycles. Hinge mechanisms are engineered for long-term reliability with self-lubricating bearings to minimize maintenance .

*Corrosion & Wear Resistance: All exposed components are treated with advanced marine coating systems (epoxy-based) for protection against seawater corrosion. Hinge pins and critical moving parts are manufactured from stainless steel or high-strength alloy steel with chrome plating for extended service life .

*Customizable Configurations: Bottom doors can be designed in various configurations—including clamshell-type, sliding, or hinged designs—to match specific hopper geometries and material discharge requirements. The number, size, and arrangement of doors are optimized for the vessel's capacity and operational profile .

*Integrated Control & Safety Systems: Fully integrated with the vessel's hydraulic power unit and control system, the doors feature position sensors, pressure monitoring, and emergency manual override functions. Interlock systems prevent accidental opening during transit or when the vessel is in shallow water .

By providing reliable material retention during transport and rapid, controlled discharge at the disposal site, our Bottom Door System is essential for maximizing the turnaround efficiency and profitability of your trailing suction hopper dredger operations.
