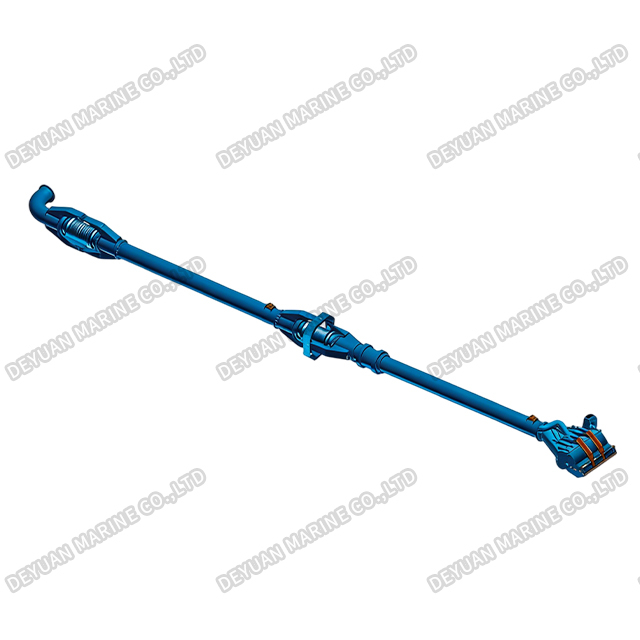

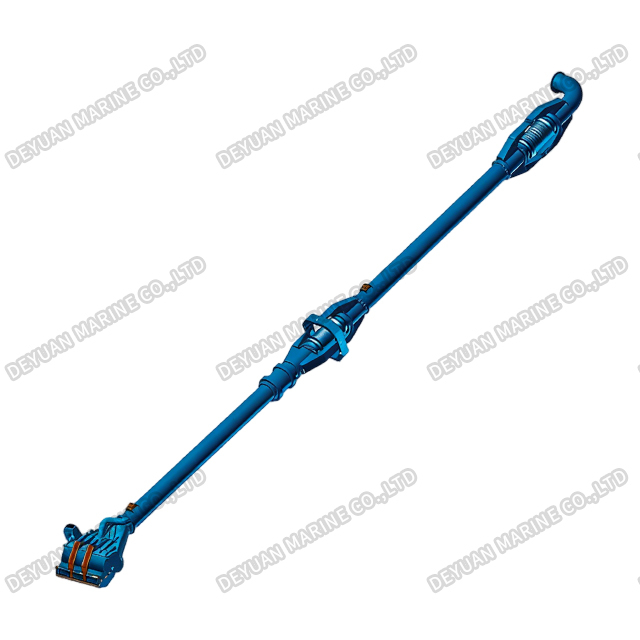

Suction System For Trailing Suction Hopper Dredger

Suction System For Trailing Suction Hopper Dredger

Product Introduction

The Suction System is the fundamental component of any Trailing Suction Hopper Dredger (TSHD), responsible for the efficient excavation and intake of seabed materials. This integrated system—comprising dragheads, suction pipes, dredge pumps, and associated control technology—determines the vessel's production capacity, operational flexibility, and overall profitability. Our suction systems are engineered to deliver superior performance across all soil types, from loose sands to compacted clays.

Designed and manufactured to the highest marine standards, our TSHD Suction System incorporates advanced technology and robust construction for reliable, high-output dredging operations.

Key features include

*High-Efficiency Dragheads: Equipped with the latest generation of active or passive dragheads, our systems optimize soil excavation. Features such as adjustable visors, wear-resistant teeth, and optimized inlet geometries ensure maximum intake of solids while minimizing water intake, significantly improving loading efficiency . Designs like the "Mighty dragon" draghead provide easy adaptability to all kinds of soil conditions .

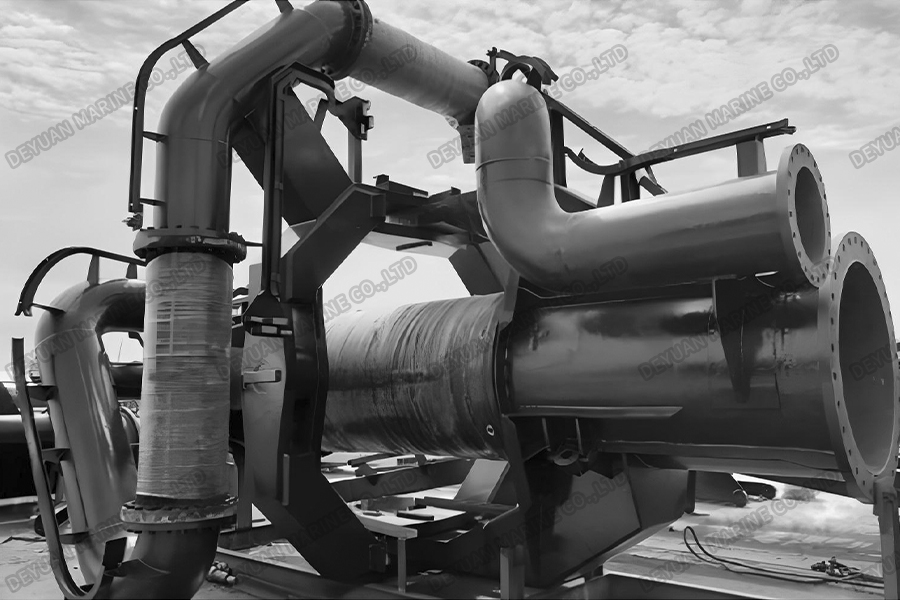

*Heavy-Duty Suction Pipes: Fabricated from high-strength marine steel, the suction pipes are designed to withstand the dynamic stresses of trailing operations in challenging sea conditions. Pipe diameters are available in a wide range (e.g., 600mm to 900mm or larger) to match vessel capacity and production requirements, with operating depths capable of reaching 25 meters, 30 meters, or even deeper configurations up to 65 meters .

*High-Performance Dredge Pumps: At the core of the suction system, our dredge pumps deliver exceptional wear resistance and hydraulic efficiency. Utilizing advanced technologies such as Curve® technology, these pumps maximize production and service life even when handling highly abrasive slurries . Pump configurations can be tailored for specific head and flow requirements, ensuring optimal performance for both loading and discharge duties.

*Advanced Control & Monitoring: Fully integrated with the vessel's central control system, our suction systems feature real-time monitoring of critical parameters including mixture concentration, flow rate, suction pressure, and pump speed. Intuitive operator interfaces and graphic position indicators allow precise control of the suction pipes, enabling the dredge master to optimize production in varying conditions . Systems like the Intuitive Hopper Control Chair (IHCC) provide advanced controllers specifically developed for demanding dredging environments .

*Jet Water System Integration: To enhance excavation in compacted soils, the system can be integrated with a high-pressure jet water system. Jets located at the draghead or along the suction pipe fluidize the seabed material, increasing the density of the incoming mixture and boosting overall production rates .

*Modular and Customizable Design: Our suction system components are designed with modularity in mind, allowing for configuration flexibility to suit specific vessel designs and operational profiles. Options include single or twin suction pipe arrangements, various pipe diameters, and specialized draghead configurations for particular soil types .

By integrating advanced hydraulic design, robust mechanical construction, and intelligent control systems, our Suction System ensures that your Trailing Suction Hopper Dredger delivers maximum productivity, reliability, and return on investment across all dredging applications.
