Spud System For Cutter Suction Dredger

Spud System For Cutter Suction Dredger

Product Introduction

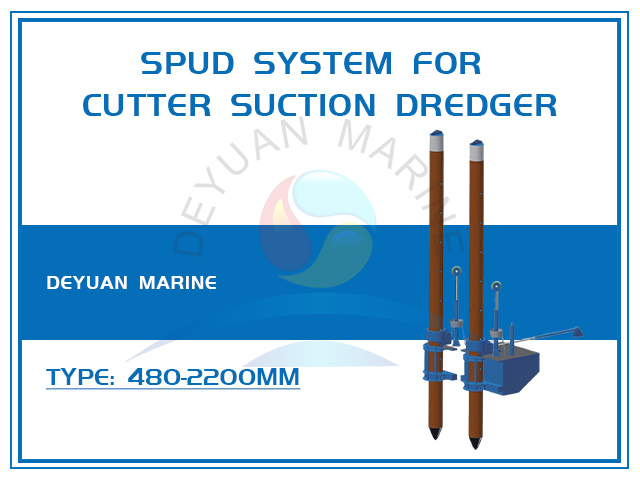

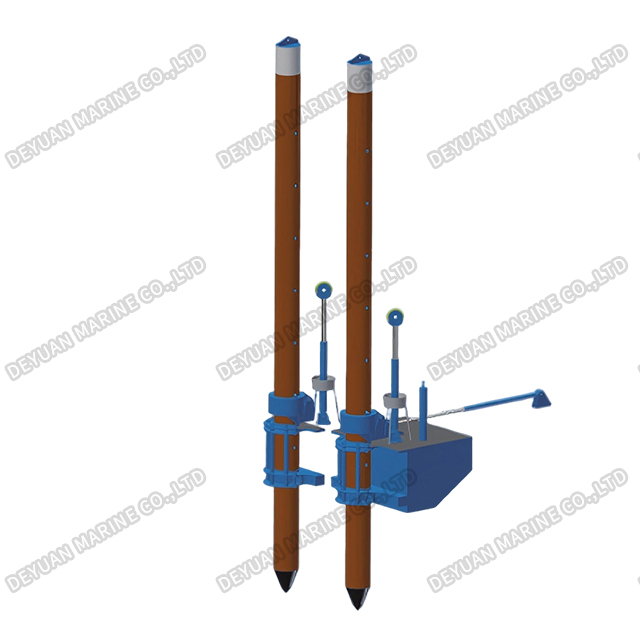

Spud system is composed of working spud system and vice spud system, including trolley rail, trolley, drive cylinder, positioning balance cylinder (if any), trolley sliding piece or roller, lifting cylinder, lifting clamp, locking clamp, hydraulic system, etc.

The trolley is installed on the slide in the middle of the bow, the trolley moves forward and backward under the drive of drive cylinder, when the cutter suction dredger is working, two spuds insert the sea alternatively, one is main pile, always aligned pocket centerline and the other is vice pile used forward exchange, to meet dredger back and forth and meet dredging work.

The lifting and descending of the spud is controlled by the lifting cylinder, the top of the lifting cylinder is equipped with a sheave system which equipped with lifting steel rope. The steel rope and the spud adopt the cross-winding method to ensure that the spud will not fall down during the lifting process. can produce spud systems of various specifications and sizes, and can customize according to customer requirements.

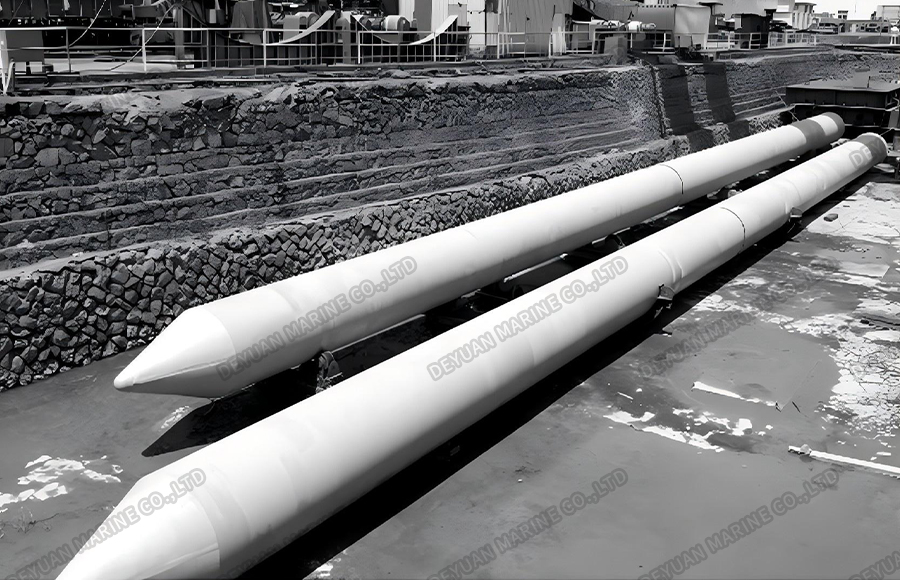

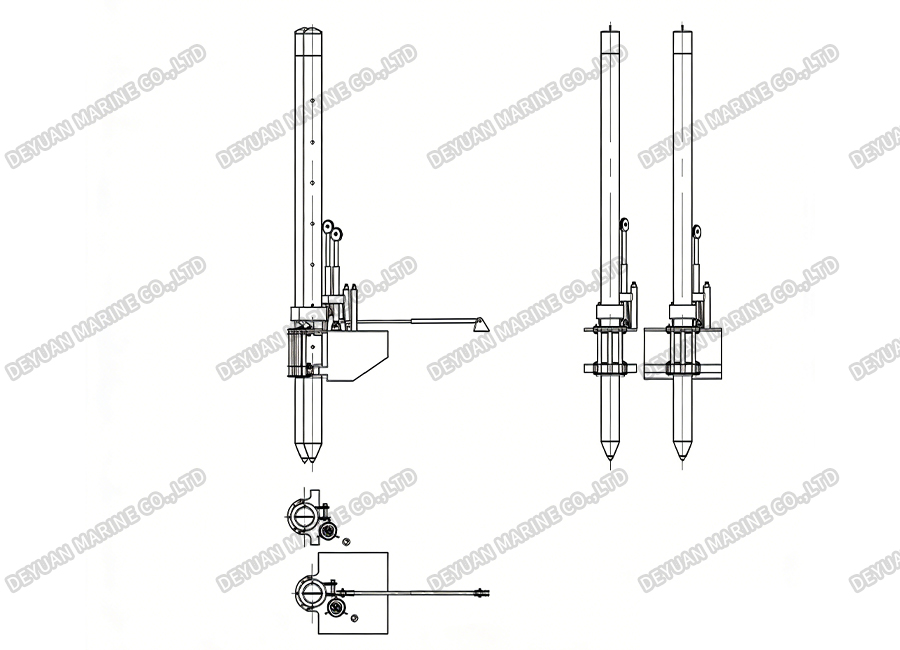

Drawing

Key Features & Benefits

*Ultimate Positioning Stability: Provides a rigid pivot point that resists lateral forces during cutter head excavation, ensuring precise swinging control and consistent dredging accuracy.

*High-Strength Construction: Manufactured from premium high-strength steel with reinforced wall thickness, engineered to withstand extreme bending moments and compressive loads during deep penetration and heavy cutting operations.

*Smooth Lifting & Lowering: Hydraulic cylinder or winch-operated hoisting mechanism provides controlled, reliable spud deployment and retrieval, even under significant load conditions.

*Secure Locking System: Heavy-duty spud lock/clamping mechanism positively secures the spud at the desired penetration depth, preventing unintended slippage during operation.

*Walking Capability (Dual Spud Configuration): In twin-spud arrangements, the system enables "walking" of the dredger forward by alternating spud placement, allowing continuous advancement without tug assistance.

*Corrosion Protection: Multi-layer marine coating system with sacrificial anode protection ensures long-term durability in saltwater environments.

*Low Maintenance Design: Robust construction with minimal moving parts reduces maintenance requirements and maximizes operational uptime.

Applications

Cutter Suction Dredgers (CSD)

Channel deepening and maintenance

Land reclamation projects

Harbor and port construction

Canal and waterway excavation

Mining and aggregate dredging
