Cutter Suction Dredger Transverse Sheave System

Cutter Suction Dredger Transverse Sheave System

Product Introduction

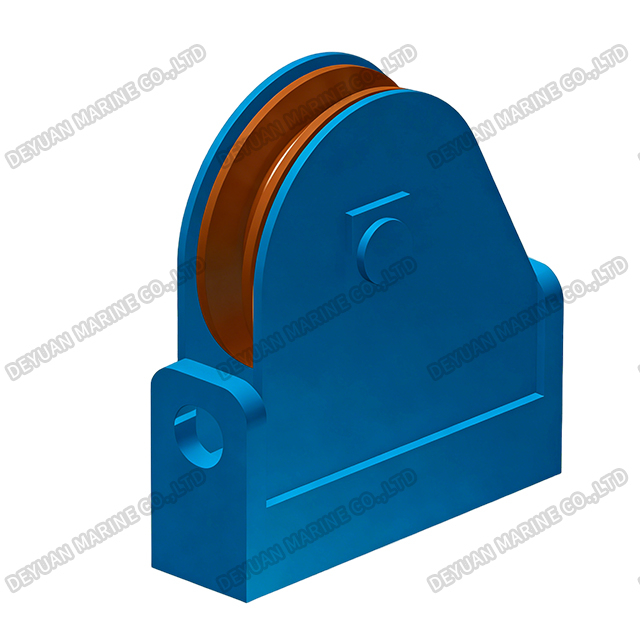

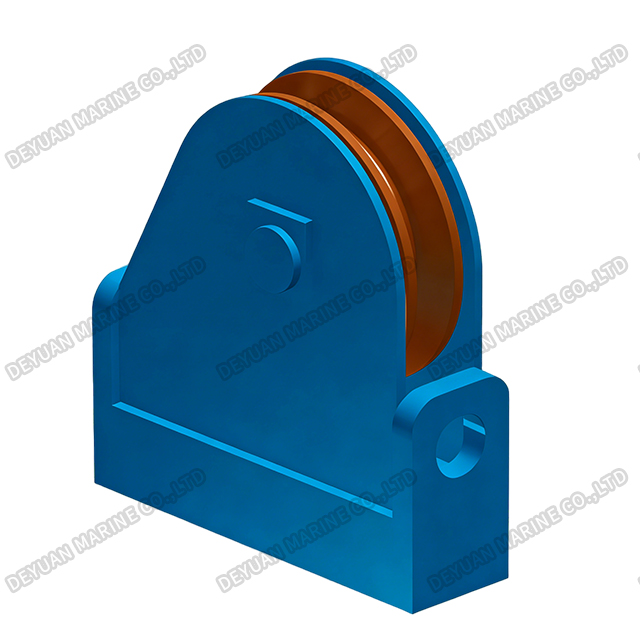

The Transverse Sheave Block Set (also known as the Side Winch Sheave Assembly) is a fundamental component of a Cutter Suction Dredger's positioning system. This pulley system guides the steel wire ropes from the side winches, enabling the precise lateral (side-to-side) swinging motion of the dredging ladder. Engineered to endure continuous dynamic loading, severe abrasion from sand-laden water, and harsh marine environments, this sheave block set ensures accurate dredging performance and long-term operational reliability.

Transverse sheave system is installed on the left and right sides of the cutter ladder.

During the working of cutter suction dredger, the traverse winch pulls the traverse anchor through the steel wire rope, and the rope passes through the transverse sheave. When the CSD is working to the left, the left transverse sheave bears the transverse tension. When the CSD is working to the right, the right transverse sheave bears the transverse tension.Can produce transverse sheave systems of various specifications and sizes.

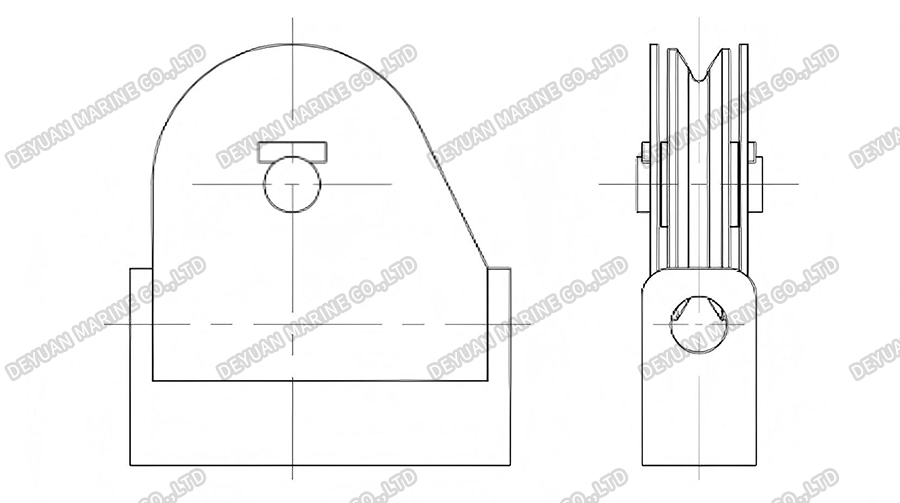

Drawing

Key Features & Benefits

*Robust Construction: Manufactured from high-strength cast steel or heavy-duty fabricated steel, designed to withstand the extreme pulling forces generated during ladder swinging operations.

*Optimized Rope Interface: Precision-machined sheave grooves ensure proper wire rope seating, minimizing friction, reducing rope wear, and extending service life of both the sheave and the wire.

*Superior Corrosion Resistance: Treated with a multi-layer marine-grade anti-corrosion coating system (epoxy/zinc-rich primer) to resist saltwater spray, humidity, and continuous immersion.

*Heavy-Duty Bearing System: Equipped with high-capacity spherical roller bearings, protected by advanced labyrinth seals and grease channels that prevent the ingress of abrasive sand, silt, and seawater.

*Low Maintenance Operation: Designed for extended service intervals with centralized lubrication points and a robust sealing system that minimizes downtime for maintenance.

*Modular Design: The block set is typically configured for easy installation and replacement, with options for different rope diameters and load classes.

Applications

Cutter Suction Dredgers (CSD)

Ladder swinging control systems

Side winch rope guidance

Offshore dredging positioning

Anchor handling systems on dredgers
