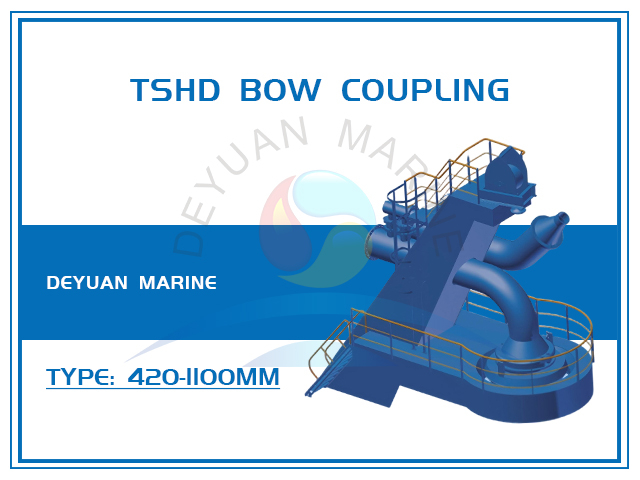

Bow Coupling For Trailing Suction Hopper Dredger

Bow Coupling For Trailing Suction Hopper Dredger

Product Introduction

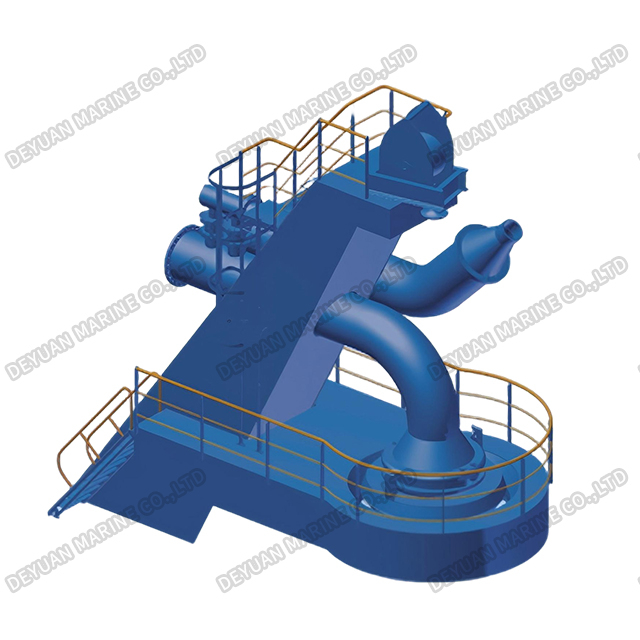

The Bow Coupling is a critical discharge component mounted at the bow of a Trailing Suction Hopper Dredger (TSHD), serving as the primary interface between the vessel's internal discharge pipeline and external floating or shore-based pipelines. This heavy-duty connection point enables dredged materials to be efficiently pumped from the hopper to reclamation areas, beach nourishment sites, or remote disposal locations, making it indispensable for modern dredging projects.

Engineered to withstand the high pressures and abrasive nature of slurry transport, our Bow Coupling system delivers reliability, safety, and operational flexibility.

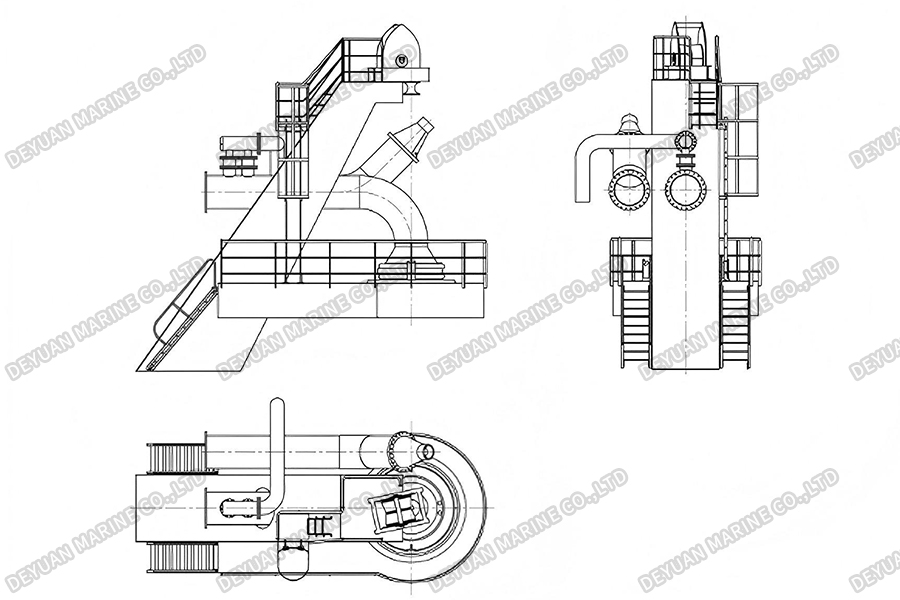

Drawing

Key features include

*High-Pressure Capability: Designed to handle the full discharge pressure of the vessel's dredge pumps, our bow couplings are rated for continuous operation under high-pressure slurry flow, ensuring efficient transport of materials over long distances to shore .

*Abrasion-Resistant Construction: The internal flow passages are lined with high-hardness wear-resistant materials (such as Hardox or ceramic tiles) to withstand the constant abrasion of sand, gravel, and rocks. This significantly extends the service life of the coupling and reduces maintenance downtime .

*Quick-Connect / Disconnect Mechanism: Equipped with a robust, user-friendly locking system (often hydraulic or manual), the coupling allows for rapid connection and disconnection to floating hoses or shore pipelines. This minimizes vessel maneuvering time and maximizes operational efficiency during discharge cycles .

*360° Swivel Capability (Optional): Many bow coupling designs incorporate a swivel feature that allows the connected pipeline to rotate freely, accommodating vessel movement due to tides, waves, or changes in draft without stressing the connection point or the pipeline .

*Leak-Proof Sealing: Precision-machined sealing surfaces combined with high-quality elastomeric seals ensure a watertight connection, preventing slurry spillage during discharge operations and protecting the marine environment .

*Corrosion-Resistant Design: Fabricated from high-grade marine steel and protected by advanced anti-corrosion coating systems, the bow coupling is built to withstand the harsh saltwater environment and continuous exposure to dredged materials .

*Customizable Configurations: Available in various diameters to match pipeline sizes (typically from 500mm to 1200mm) and with flange standards to suit global requirements (ISO, ANSI, DIN, JIS). The coupling can be tailored for specific vessel designs and operational needs .

By providing a reliable, high-performance connection point between vessel and shore, our Bow Coupling system ensures that your TSHD can efficiently deliver dredged materials exactly where they are needed, maximizing project productivity and profitability.
