Deyuan Hatch Cover

Marine hatch covers are essential components used primarily in marine and shipping industries to seal cargo hold openings on vessels such as bulk carriers, container ships, and general cargo ships, ensuring watertight integrity and protection of goods from seawater, weather, and contamination during transit. They are typically manufactured from high-strength marine-grade steel, in some lightweight designs, aluminum alloys, offering durability and corrosion resistance. Based on their operation and construction, hatch covers are classified into several types:

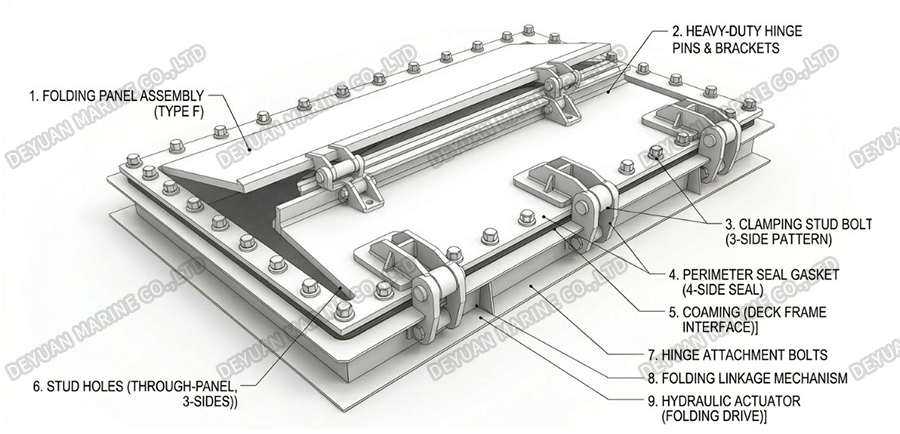

1. Folding Hatch Covers: Marine folding hatch covers consist of multiple panels that can be folded or unfolded to allow easy access to the hatch.They are commonly used for cargo holds and other large openings on vessels.

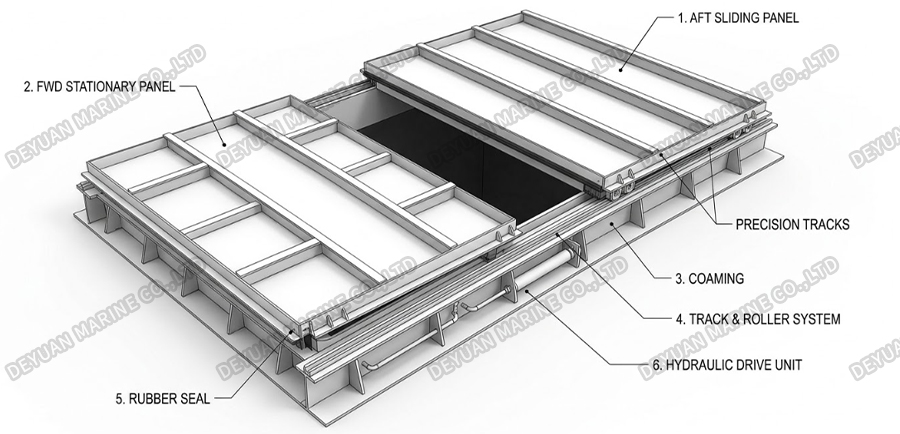

2. Sliding Hatch Covers: Sliding hatch covers are designed to slide horizontally to uncover an opening. They are typically used in areas with limited vertical clearance, such as machinery spaces or store rooms.

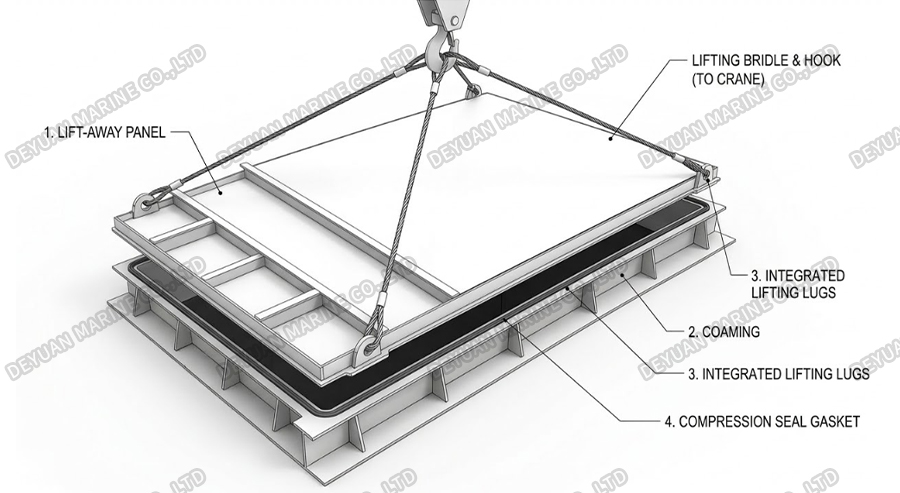

3. Lift-away Hatch Covers: Lift-away hatch covers are removable covers that can be lifted from the opening and completely removed. They are generally used in areas requiring full access and clearance, such as engine rooms or large equip ment compartments.

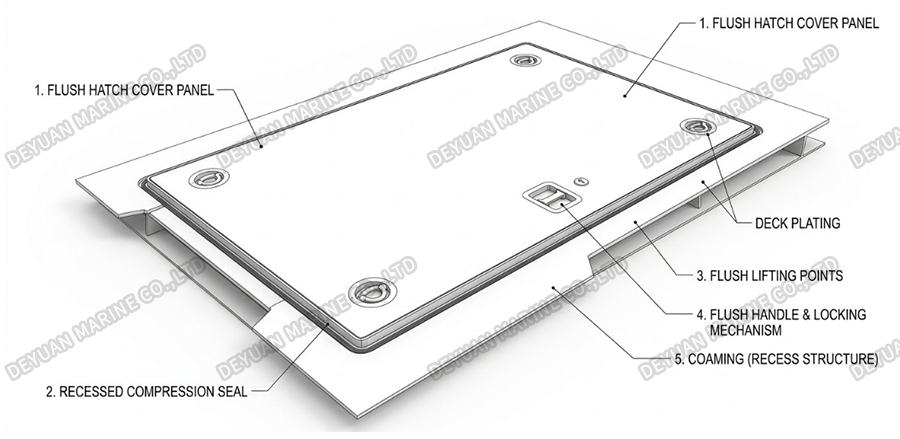

4. Flush Hatch Covers: Flush-mounted marine hatch covers are designed to be level with the deck when closed, creating a smooth and seamless surface.

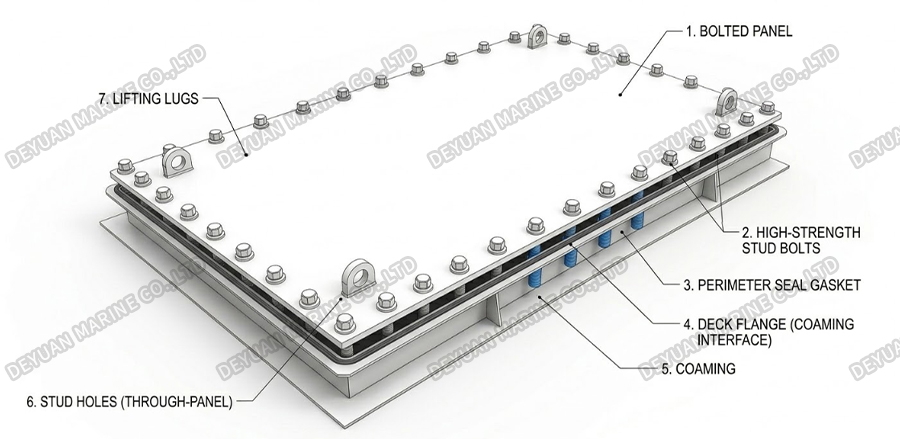

5. Bolted Hatch Covers: Bolted hatch covers consist of panels secured to the opening using bolts or specialized locking mechanisms.

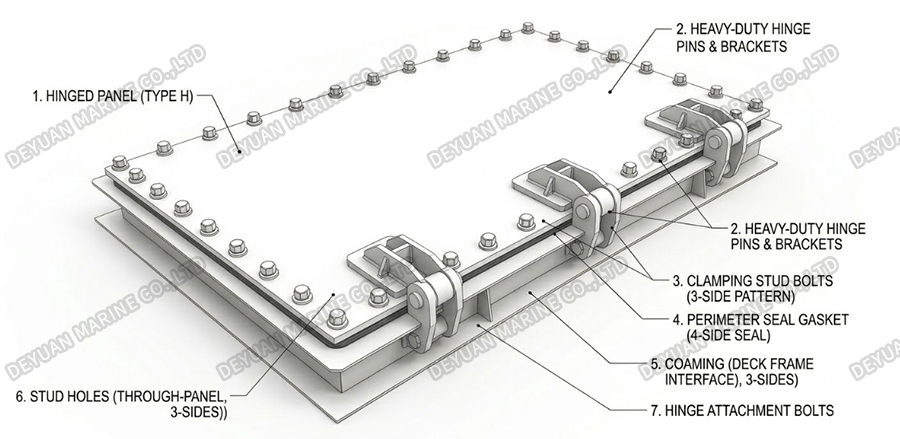

6. Hinged Hatch Covers: Hinged hatch covers are connected to the opening via hinges and can swing open or closed.

Each type of hatch cover serves specific ship design and cargo handling requirements, striking a balance between accessibility, sealing efficiency, and deck space utilization.

General Technical Specifications

Materials and Coating:

1. Material: High-strength marine grade steel AH32 / AH36 is used.

2. Corrosion Protection: Surface treatment involves Sa2.5 grade shot blasting, followed by the application of over 200um epoxy zinc-rich primer and finish coating.

Drive System Options:

1. Manual Drive: Suitable for small hinged or bolted types, equipped with power-assisted levers.

2. Hydraulic Drive: Suitable for folding and sliding types, supporting remote control operations.

3. Electric Drive: Optional variable frequency control system (VFD) for smooth operation and easy maintenance.

Certification Standards:

1. Compliant with IACS member association specifications (such as CCS, BV, LR, ABS, DNV, NK).

2. Each unit undergoes a water pressure test of over 0.2bar or an equivalent hose test.

FAQ – Marine Hatch Covers

Q1. What is a marine hatch cover?
Ans – It’s a strong steel lid that closes the cargo hold on a ship. Its job is to keep water, rain, and moisture out so the cargo stays dry and safe.

Q2. What are the common types of hatch covers?
Ans – The most common are folding types, rolling types (side or end), and lift-away types (moved by crane). Each is used for different kinds of ships.

Q3. How do you check if a hatch cover is watertight?
Ans – You can use a simple hose test (spray water on the seals), a chalk test (check the seal impression), or an ultrasonic test (detect leaks with sound). The hose test is the most common.

Q4. What basic maintenance does a hatch cover need?
Ans – Keep the rubber seals clean and replace them when worn. Lubricate the hinges, wheels, and chains regularly. Also, keep the drain channels and sealing surfaces free of dirt and rust.

Q5. What safety rules should you follow?
Ans – Never stand on a moving hatch. Always check that no one is in the way before opening or closing. Secure the hatch with locking pins when it’s fully open. And always wear a hard hat and safety boots.
