Model B Circular Handhole Cover

CABINET HANDHOLE COVER

CB*283-84

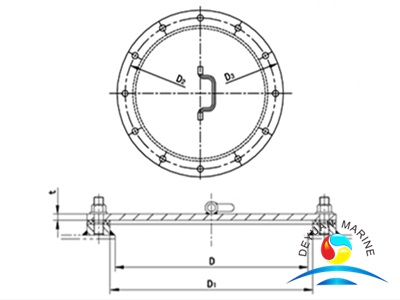

Model B Circular Handhole Cover

D	D3	D2	D1	t	Stud			Weight(kg)
					Diameter	Length	Quantity
150	220	190	160	5	M12	22	8	4.6
200	270	240	210	5	M12	22	12	6.2
				8		28		7.6
200	320	290	260	5	M12	22	14	8.3
				8		28		10.2
200	370	340	310	5	M12	22	16	11
				8		28		13
150	420	390	360	8	M12	28	16	15.7

Marked sample: Circular handhole cover D=200, t=5.

Marked as: HANDHOLE COVER  B 200*5 CB*283-84
