QL-403 Alummium Sunk Type Watertight Hatch Cover (With hinge)

Alummium Sunk Type Watertight Hatch Cover

QL-400 series



QL-403

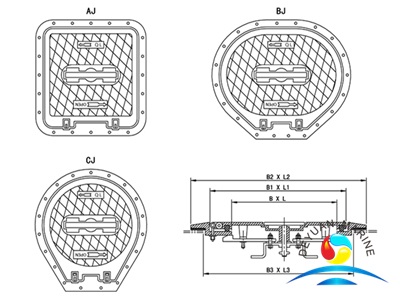

Model	Clear size	Cover plate size	Cover frame size	Cut-out size	Cover plate thickness		Weight(kg)
	B*L	B1*L1	B2*L2	B3*L3	E	F	E	F
AJ	500*500	600*550	740*670	700*590	12	6	26	17
	600*600	700*650	840*770	800*690	12	6	31	21
BJ	400*500	500*550	640*670	600*590	12	6	16	12
	450*600	550*650	690*770	650*690	12	6	23	19
CJ	Φ500	600*550	740*670	700*590	12	6	19	15
	Φ600	700*650	840*770	800*690	12	6	26	21

Marked sample: Aluminium sunk type watertight hatch cover with singe which clear size 500*500, cover plate tickness 12

Marked as :SUNK TYPE HATCH COVER AJ500*500 QL403
