Deyuan Marine Fuel Drip Sampler: Compliant with International Standards, Promoting Green Shipping

As global environmental requirements for the shipping industry continue to rise, ship fuel quality management has become a key industry focus. To meet the latest environmental regulations of the International Maritime Organization (IMO), Deyuan Marine Co., Ltd. officially launches its Fuel Drip Sampler, fully compliant with MARPOL 73/78 Annex VI, Regulation 18. This product provides an efficient, compliant, and reliable solution for ship fuel sampling.

Product Highlights: International Standards, Superior Performance

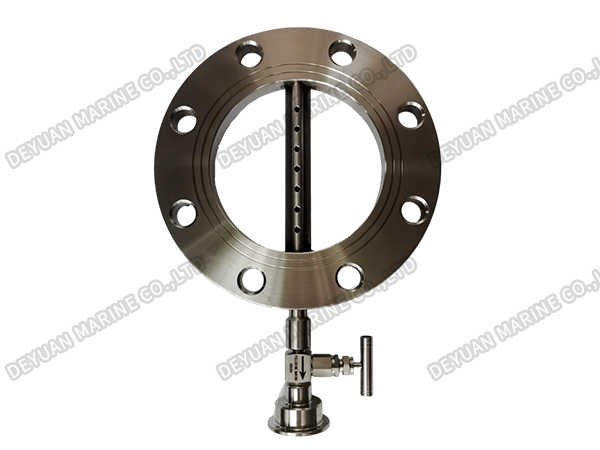

The Deyuan Marine Fuel Sampler is constructed from SUS304 or SUS316 stainless steel and is available in various specifications (DN80 to DN400). It is compatible with international standards such as DIN, GB/T, ANSI, and JIS. Each unit is equipped with a complete sampling assembly, including stainless steel flanges, a collection chamber, a flow control valve, sample bottle connectors, and locking devices, ensuring a stable and contamination-free sampling process.

Reference Parameter

Size	Standard Pressure	Outer Diameter	Pitch Diameter	Inner Diameter	Bolt Holes Quantity	Diameter
DN80(3")	DIN PN6	190	150	90	4	18
	DIN PN10	200	160	90	8	18
	ANSI 150lbs	190.5	152.4	90	4	19
	JIS 5K	180	145	90	4	19
	JIS 1OK	185	150	90	8	19
DN100(4")	DIN PN6	210	170	115	4	18
	DIN PN10	220	180	115	8	18
	ANSI 150lbs	228.6	190.5	115	8	19
	JIS 5K	200	165	115	8	19
	JIS 10K	210	175	115	8	19
DN125(5")	DIN PN6	240	200	140	8	18
	DIN PN10	250	210	140	8	18
	ANSI 150lbs	255	216	140	8	22
	JIS 5K	235	200	140	8	19
	JIS 1OK	250	210	140	8	23
DN150(6")	DIN PN6	265	225	170	8	18
	DIN PN10	285	240	170	8	22
	ANSI 150lbs	279.4	241.3	170	8	23
	JIS 5K	265	230	170	8	19
	JIS 1OK	280	240	170	9	23
DN200(8")	DIN PN6	320	280	220	8	18
	DIN PN10	340	295	220	8	22
	DIN PN16	340	295	220	12	22
	ANSI 150lbs	342.9	298.4	220	8	23
	JIS 5K	320	280	220	8	23
	JIS 1OK	330	290	220	12	23
DN250(10")	DIN PN6	375	335	280	12	18
	DIN PN10	395	350	280	12	22
	DIN PN16	405	355	280	12	26
	ANSI 150lbs	406.4	361.9	280	12	25.4
	JIS 5K	385	345	280	12	23
	JIS 10K	385	345	280	12	25
DN300(12")	DIN PN6	440	395	326	12	22
	DIN PN10	445	400	326	12	22
	DIN PN16	460	410	326	12	26
	ANSI 150lbs	482.6	431.8	326	12	25.4
	JIS 5K	430	390	326	12	23
	JIS 1OK	445	400	326	16	25

The sampler has received dual certification from Lloyd's Register (LR) and China Classification Society (CCS), fully complying with IMO MEPC.182(59) requirements. It is suitable for continuous drip sampling during fuel bunkering operations on various vessels, guaranteeing sample representativeness and legal validity.

Core Technology: Negative Pressure Design, Uniform Sampling

The Deyuan Sampler incorporates a special negative pressure design, enabling stable dripping and uniform sampling during fuel transfer, thereby preventing sample stratification or contamination. The device interfaces conform to internationally recognized standards, facilitating easy replenishment of sampling containers at ports worldwide for enhanced user convenience.

Complete Set, Flexible Options

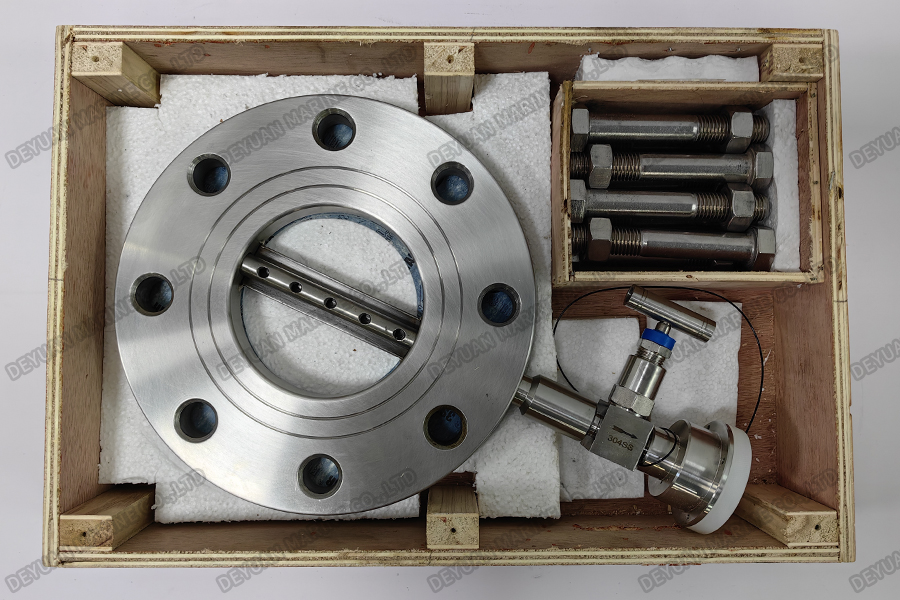

Each sampler set comes standard with ten 5-liter PE cubitainers and includes installation accessories such as non-asbestos gaskets, bolts, and nuts. Users can also opt for additional accessories like 750ml HDPE sample bottles and 2.5MPa pressure gauges to meet diverse sampling needs.

Comprehensive Certification, Compliant & Reliable

The product has obtained an LR Type Approval Certificate, ensuring its design, materials, and manufacturing processes adhere to the highest industry standards. Deyuan Marine guarantees that all products leaving the factory are certified and qualified, empowering shipowners to achieve green, compliant, and efficient operations.

About Deyuan Marine Co., Ltd.

Deyuan Marine Co., Ltd. is committed to providing safe, environmentally friendly, and efficient marine solutions for the global shipping industry.

For more product information or to request a quotation, please contact us.
