Product Description

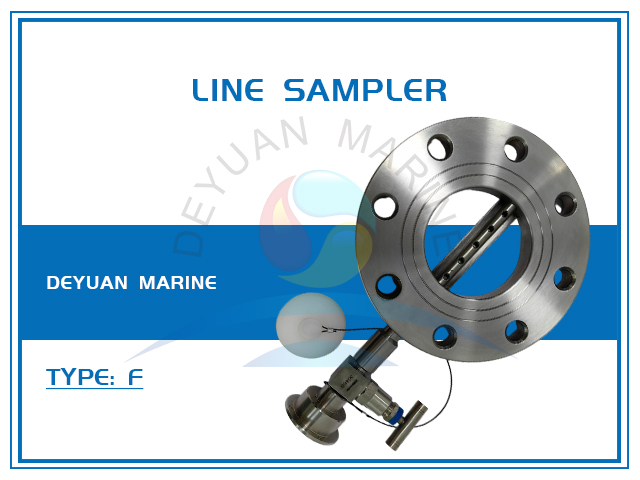

Line Sampler
Product Introduction
One of the most important aspects of any bunkering operation is ensuring a representative sample.The appropriate fuel oil sampling provides not only the evidence of the fuel oil quality and condition, but also follows the environmental protection norms.

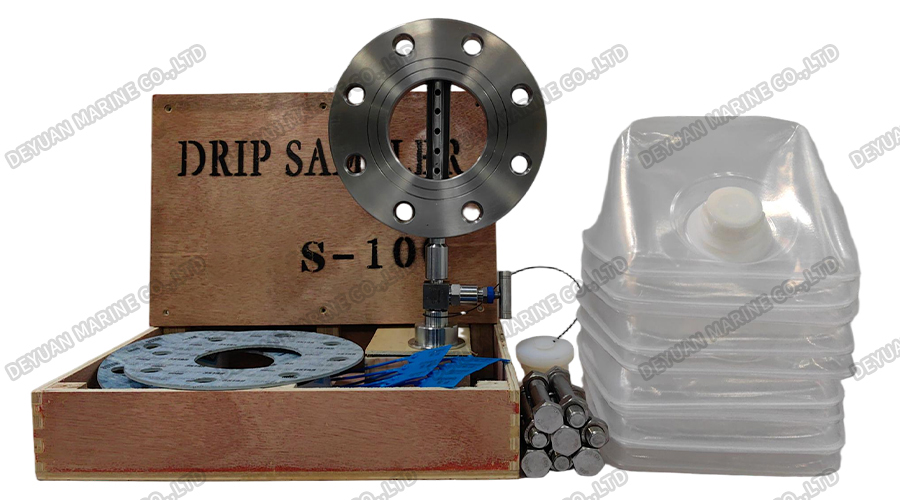

All our line samplers are manufactured in corrosion-resistant stainless steel and each sampler consists of a flange
assembly with its accessories of bolts, nuts, two gaskets and plastic cubitainers.
Installation is extremely simple within minutes using two specially fabricated long bolts, and they are widely used for fuel sampling on board of all vessels.
Drawing
Technical Data
Size | Standard Pressure | Outer Diameter | Pitch Diameter | Inner Diameter | Bolt Holes Quantity | Diameter |
DN80 ( 3” ) | DIN PN6 | 190 | 150 | 90 | 4 | 18 |
DIN PN10 | 200 | 160 | 90 | 8 | 18 | |
DN100 ( 4” ) | DIN PN6 | 210 | 170 | 115 | 4 | 18 |
DIN PN10 | 220 | 180 | 115 | 8 | 18 | |
DN125 ( 5” ) | DIN PN6 | 240 | 200 | 140 | 8 | 18 |
DIN PN10 | 250 | 210 | 140 | 8 | 18 | |
DN150( 6” ) | DIN PN6 | 265 | 225 | 170 | 8 | 18 |
DIN PN10 | 285 | 240 | 170 | 8 | 22 | |
DN200 ( 8" ) | DIN PN6 | 320 | 280 | 220 | 8 | 18 |
DIN PN10 | 340 | 295 | 220 | 8 | 22 | |
DN250 ( 10" ) | DIN PN6 | 375 | 335 | 280 | 12 | 18 |
DIN PN10 | 395 | 350 | 280 | 12 | 22 | |
DN300 ( 12" ) | DIN PN6 | 440 | 395 | 326 | 12 | 22 |
DIN PN10 | 445 | 400 | 326 | 12 | 22 | |
Supports Customization of Any Size | ||||||
