Product Description

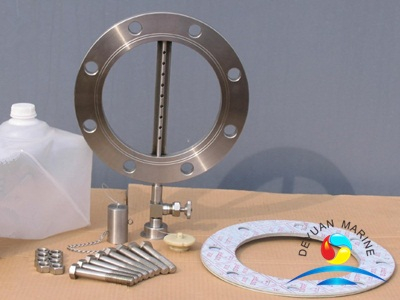

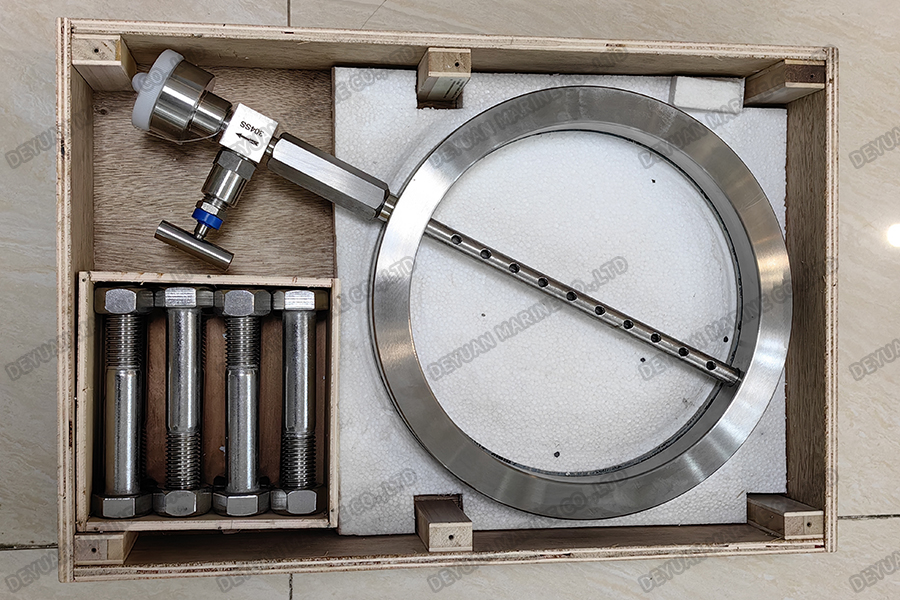

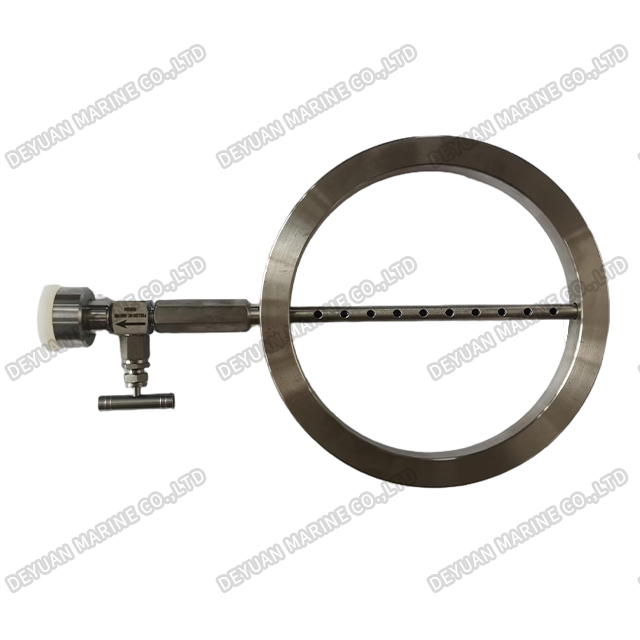

Fuel Drip Line Samplers
Product Introduction
Taking fuel samples during bunkering need not involve endless expenditure and can provide good evidence in the event of a problem.
All our Fuel Drip Line Samplers is designed as per the Regulation of 18 of MARPOL Annex VI , IMO Resolution MEPC.96(47).A wide range of fule drip line samplers are for option,available line diameter is 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 13 , 14 Inch,with 0.6 Mpa , 1.0 Mpa , 1.6 Mpa , 2.5 Mpa working pressure.
Drawing
Technical data
| Size | ID | OD | L | Thickness |
| 2"(DN50) | 63 | 95 | about190 | 25 |
| 3"(DN80) | 85 | 127 | about205 | 25 |
| 4"(DN100) | 110 | 157 | about220 | 25 |
| 5"(DN125) | 140 | 188 | about236 | 25 |
| 6"(DN150) | 170 | 216 | about250 | 25 |
| 7"(DN175) | 194 | 241 | about262 | 25 |
| 8"(DN200) | 220 | 266 | about280 | 26 |
| 9"(DN225) | 245 | 307 | about295 | 26 |
| 10"(DN250) | 272 | 328 | about306 | 26 |
| 11"(DN275) | 297 | 361 | about322 | 26 |
| 12"(DN300) | 325 | 401 | about342 | 26 |
For more product information or to request a quotation, please contact us.
