Bunker Sampler

  • DEYUAN MARINE

  • Item: Bunker Sampler
  • Standard: MARPOL Annex VI , IMO Resolution MEPC.96(47)
  • Material: Stainless Steel
  • Flange Standard: DIN , JIS , ANSI , GB2506
  • Line Diameter: DN80~DN350
  • Certificate: CCS,LR

Product Description

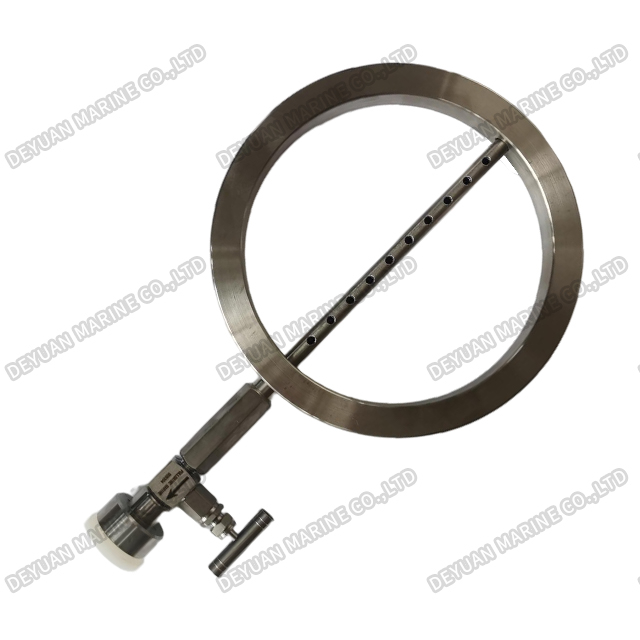

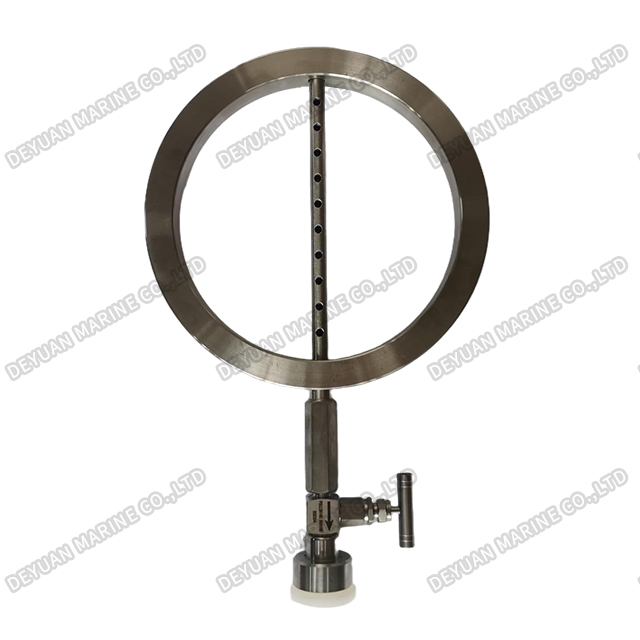

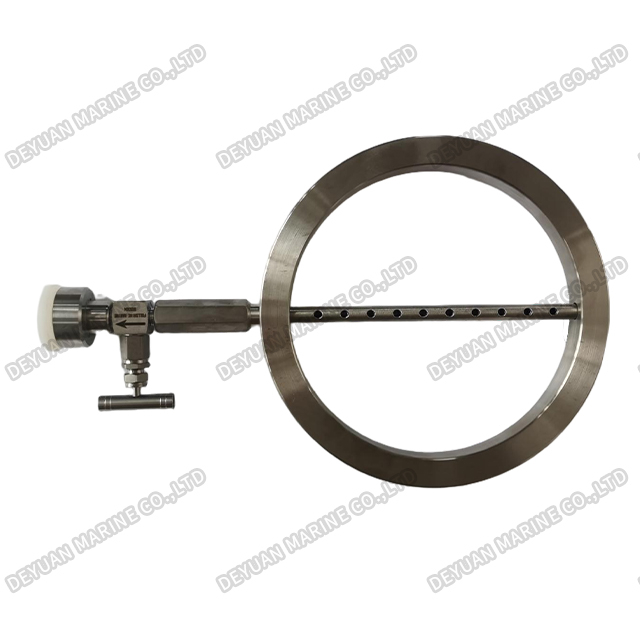

Bunker Sampler

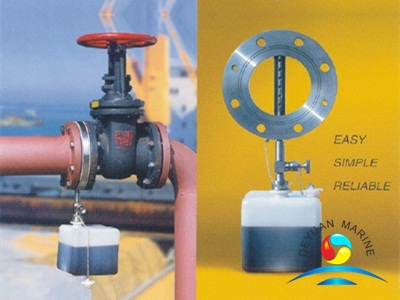

A variety size of bunker sampler can be provided,line diameter for option are 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 13 inch , Fuel Oil Drip Sampler can be custom-made to fit the  installation horizontal and vertical to the input end of the fuel manifold on  board, and it can be simply connected with the barge’s bunker manifold,  by using the gasket, bolts and nuts available in the packing wooden box.
All our bunker sampler is compliance with Regulation 18 of MARPOL Annex VI , IMO Resolution MEPC.96(47).

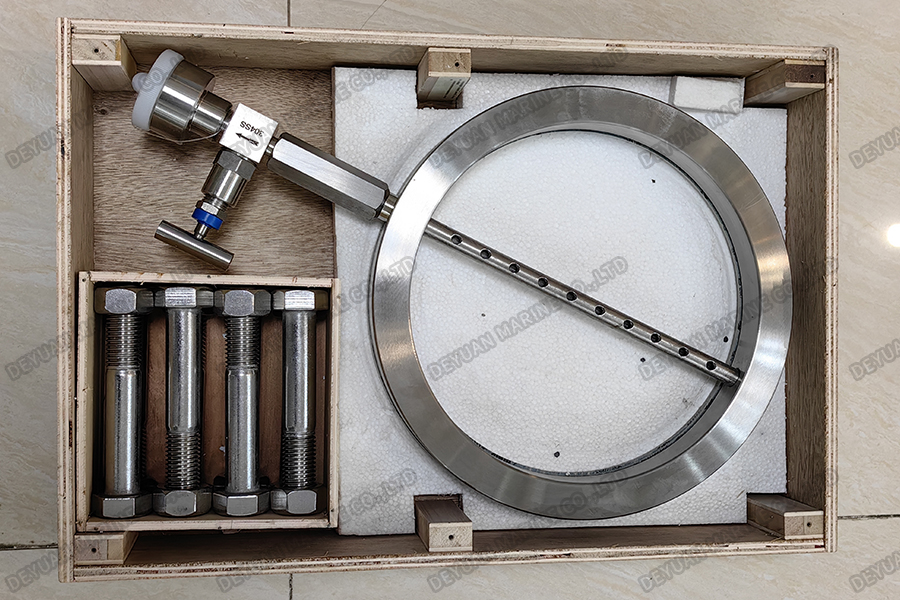

Each drip sampler includes:
* Stainless Steel Flange
* Purpose Built Probe With Baffle Plate
* Stainless Steel Valve
* Cubitainers Interface and Security Cap
* Stainless Steel Valve Locking Device
* 5 pieces of seal Strip
* Customised Long Nuts and Bolts
* 2 Pieces of Asbestos Free Gaskets
* 1 piece of wooden box

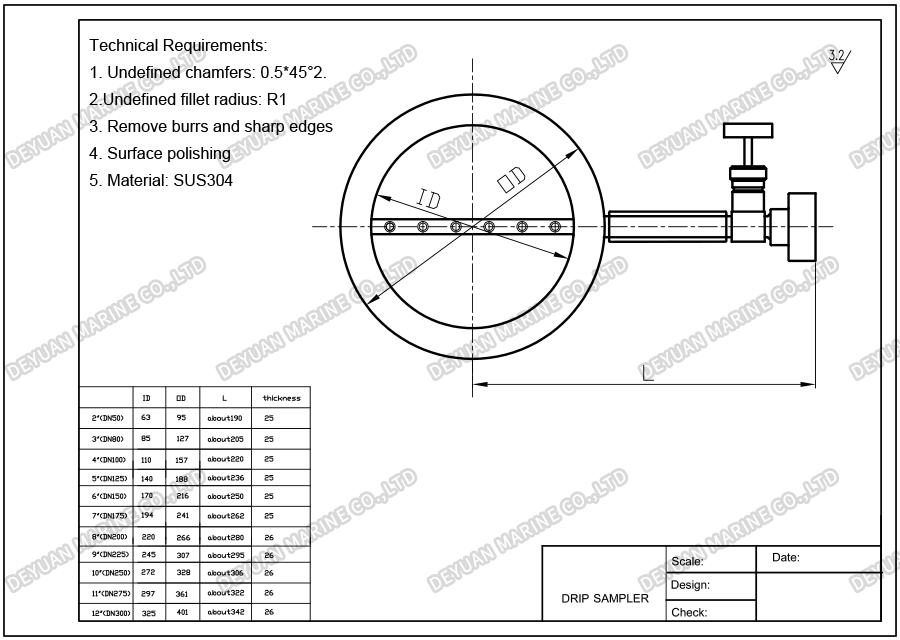

Type Pipe DN Standard of Flange Material of Flange
FODS-080F/R 80DN - Stainless steel
(SUS304/1Cr18Ni9)
FODS-100F/R 100DN -
FODS-125F/R 125DN ISO.ANSI.
FODS-150F/R 150DN DIN.JIS
FODS-175F/R 175DN PN1.6MPa
FODS-200F/R 200DN PN1.0MPa
FODS-225F/R 225DN PN1MPa
FODS-250F/R 250DN PN0.5Mpa
FODS-275F/R 275DN -
FODS-300F/R 300DN -
FODS-350F/R 350DN -
Fuel Drip Line Samplers China deyuan marine
