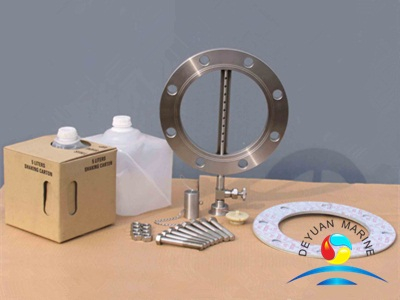

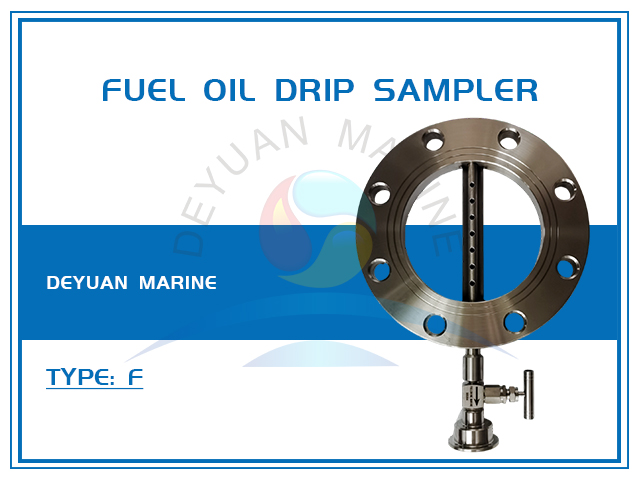

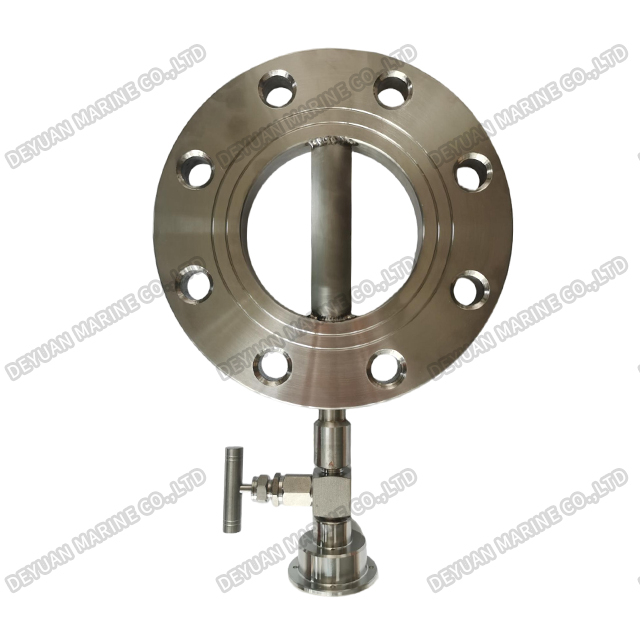

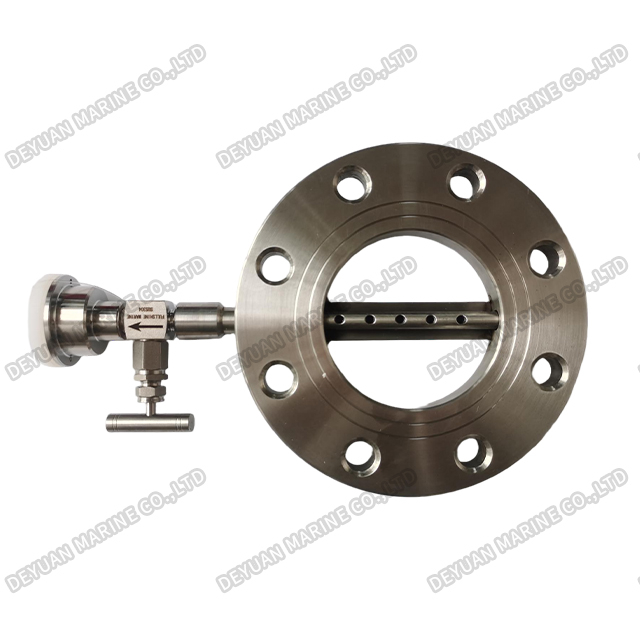

Fuel Oil Drip Sampler

Product Introduction

It is very important to obtain a representative fuel sample, which gives a good representation of the fuel quality and is acceptable to all

parties involved during a bunkering operation.

To obtain good representative fuel samples during bunkering operation,deyuan marine has designed a reliable and effective sampler that complies with MARPOL73/78 ANNEX VI.

Fuel Oil Drip Sampler quick details

Features: Fully Sealed , Continuous Drip , Easy Maintenance

Material: Stainless Steel , Bronze

Flange Standard: DIN , JIS , ANSI , GB2506

Working Pressure: 0.6 Mpa , 1.0 Mpa , 1.6 Mpa , 2.5 Mpa

Line Diameter: 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 13 , 14 Inch

Certificate: LR

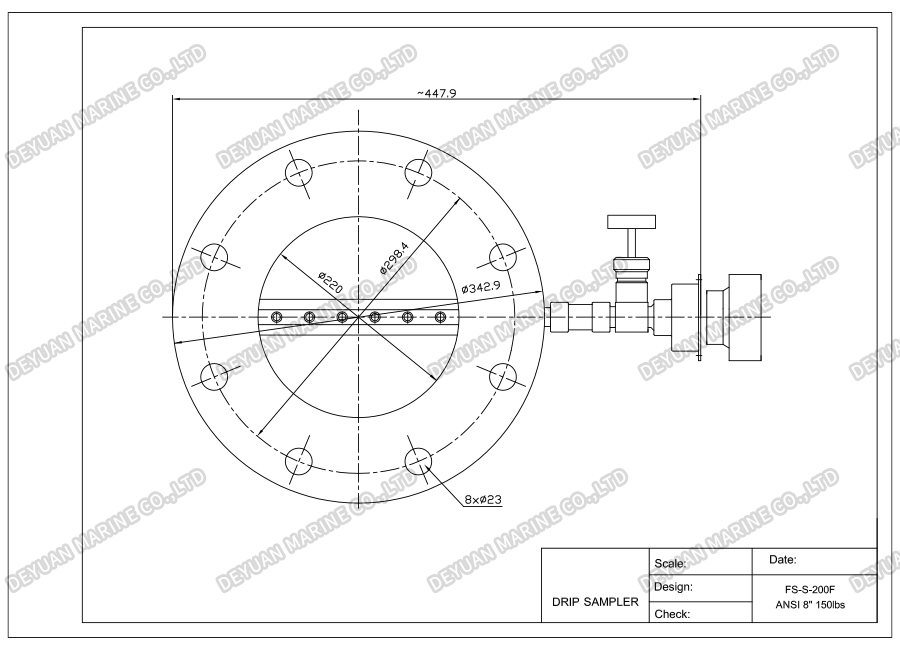

Drawing

Technical data

Size	Standard Pressure	Outer Diameter	Pitch Diameter	Inner Diameter	Bolts
DN80 ( 3” )	DIN PN6	190	150	90	4-Ф18
	DIN PN10	200	160	90	8-Ф18
	ANSI 150lbs	190.5	152.4	90	4-Ф19
	JIS 5K	180	145	90	4-Ф19
	JIS 10K	185	150	90	8-Ф19
DN100 ( 4” )	DIN PN6	210	170	115	4-Ф18
	DIN PN10	220	180	115	8-Ф18
	ANSI 150lbs	228.6	190.5	115	8-Ф19
	JIS 5K	200	165	115	8-Ф19
	JIS 10K	210	175	115	8-Ф19
DN125 ( 5” )	DIN PN6	240	200	140	8-Ф18
	DIN PN10	250	210	140	8-Ф18
	ANSI 150lbs	255	216	140	8-Ф22
	JIS 5K	235	200	140	8-Ф19
	JIS 10K	250	210	140	8-Ф23
DN150 ( 6” )	DIN PN6	265	225	170	8-Ф18
	DIN PN10	285	240	170	8-Ф22
	ANSI 150lbs	279.4	241.3	170	8-Ф23
	JIS 5K	265	230	170	8-Ф19
	JIS 10K	280	240	170	9-Ф23
DN200 ( 8" )	DIN PN6	320	280	220	8-Ф18
	DIN PN10	340	295	220	8-Ф22
	DIN PN16	340	295	220	12-Ф22
	ANSI 150lbs	342.9	298.4	220	8-Ф23
	JIS 5K	320	280	220	8-Ф23
	JIS 10K	330	290	220	12-Ф23
DN250 ( 10" )	DIN PN6	375	335	280	12-Ф18
	DIN PN10	395	350	280	12-Ф22
	DIN PN16	405	355	280	12-Ф26
	ANSI 150lbs	406.4	361.9	280	12-Ф25.4
	JIS 5K	385	345	280	12-Ф23
	JIS 10K	385	345	280	12-Ф25
DN300 ( 12" )	DIN PN6	440	395	326	12-Ф22
	DIN PN10	445	400	326	12-Ф22
	DIN PN16	460	410	326	12-Ф26
	ANSI 150lbs	482.6	431.8	326	12-Ф25.4
	JIS 5K	430	390	326	12-Ф23
	JIS 10K	445	400	326	16-Ф25
