WT-B150 MF/HF RADIO OPERATION INSTRUCTION

1. One-button distress alarm

1.1. How to one-button distress alarm?

       A distress alert process can be activated when the vessel or persons on board are in danger.One key distress alarm, can quickly send danger, step Flash is as follows:

       A. Open the "DISTRESS" button cover, press and hold the "DISTRESS" button for more than 4 seconds, the alarm will automatically sound, such as Figure 1.

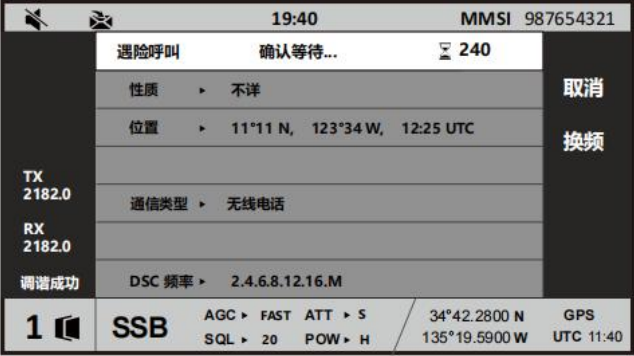

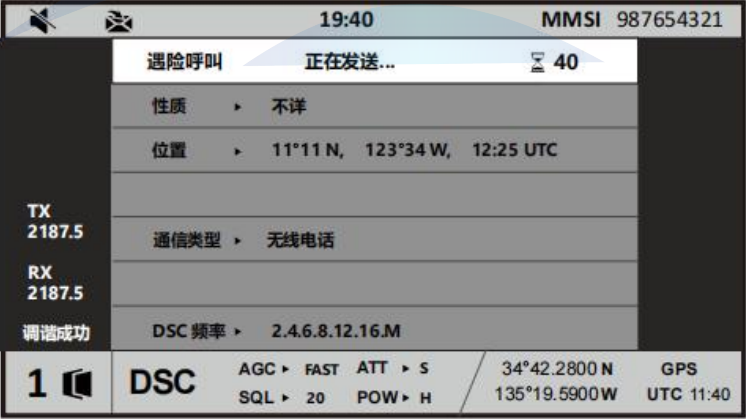

B. After sending the alarm, wait for the confirmation of distress and listen for the call situation, as shown in Figure 2.



If no distress acknowledgement is received in about 4 minutes, the system automatically resends the distress alarm until the distress acknowledgement is received.

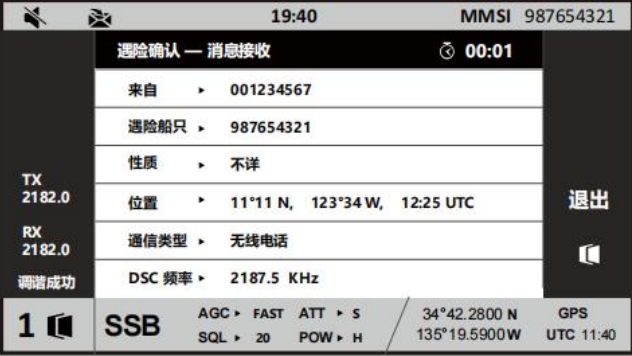

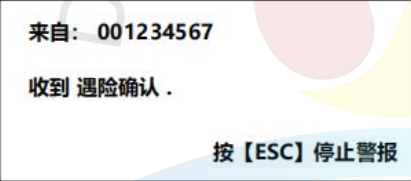

C. After receiving the confirmation of distress, the alarm sounds and a prompt box pops up, as shown in Figure 3.

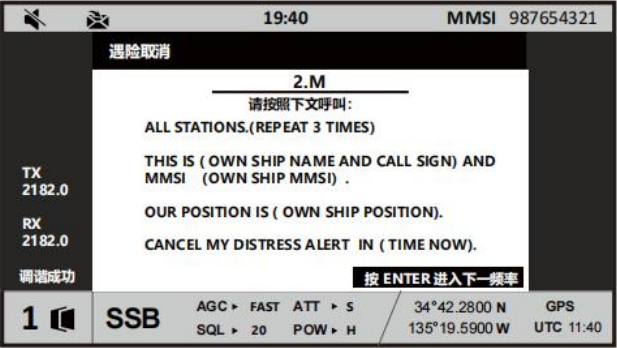

Press ESC as prompted to stop the alarm and exit the prompt box to display the message content, as shown in Figure 4.

D. Communicate with the coastal station by radio telephone, call as follows:

1) Ask for help three times;

2) Say your ship's name and your call sign three times;

3) Explain the nature of the distress and the help needed;

4) Describe the condition of your vessel (type, number of persons on board, etc.) and any other information that may assist in the rescue.

1.2. How to cancel the distress alarm?

      After sending the distress alarm, enter the confirmation wait, and cancel the distress alarm if necessary. The steps are as follows:

A. Select the soft function key "Cancel", and a selection box will pop up, as shown in Figure 5

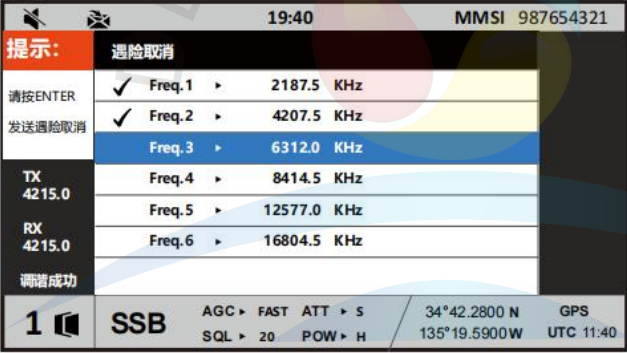

Select "Yes" to enter the distress cancellation interface, and the distress cancellation sending frequency is the same as the distress call frequency, as shown in Figure 6.

B. Select the frequency as prompted and press ENTER to send distress cancel.When the message is sent, call as prompted, as shown in Figure 7.

C. After the call is complete, press ENTER to ENTER the frequency list again. The frequency that has been called is marked with √.Repeat steps 2 to 3,Until all frequencies are transmitted.

2. Product Feature

     Wt-B150 MF/HF radio device applies the latest software radio technology, relying on its unique digital signal processing technology, perfect display of its excellent reception and transmission performance.The system adopts separate mainstream design of controller and host, in which the controller is matched with a 7-inch LCD screen, which improves the operability of users by optimizing key design and operating software design.The host has built-in DSC function (8 channels), and users can choose NBDP (narrow band printing) terminal according to the need.

◆ Provide SSB, AM and digital DSC three working modes

◆One button distress alarm, distress signal response and forwarding

◆Automatic noise function

◆ In full compliance with IMO regulations: IMO A.694(17), IMO A.804(19), IMO A.806(19), IMO MSC68(68), IMO A.813(19), ITU-R M.493-13, ITU-R M.541-9-200, ITU-R M.1173-1995, ITU-R M.1082-1-1997, IEC60945-2002, IEC61097-3/8/9.

◆ Six distress channels are on parallel duty, six routine channels are on scanning duty, and one SSB channel is on fixed-frequency duty.

◆ Provide automatic calibration function of clock frequency deviation to ensure excellent frequency error performance of the equipment.

◆Support internal and external GPS automatic switch.

◆Support desktop installation and embedded installation.

◆ Support software upgrade function.

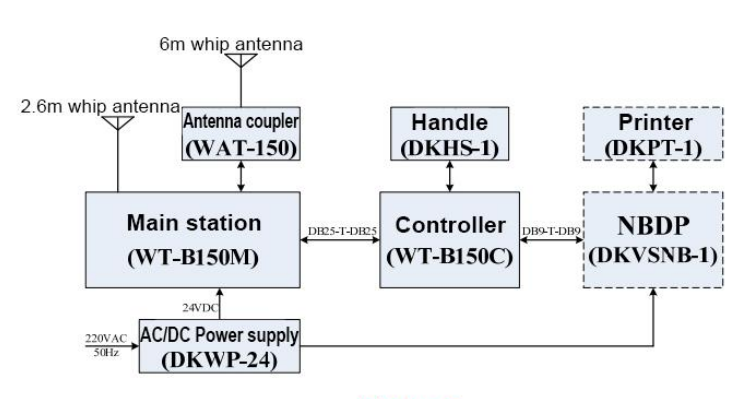

3. System configuration

4. Product specification

General indicators:

◆Communication mode: half duplex or simplex

◆ Emission types: J3E：SSB、J2B(F1B)：DSC and NBDP

◆ Working mode: SSB, DSC, AM, NBDP

◆ Operating temperature: -15°C to 55°C

◆Operating voltage: 24VDC +30%/-10%

◆ Operating current: receiving: ＜1.0 A; Launch:＜20A (Max)

◆ Protection: overvoltage, undervoltage, reverse, overcurrent, large standing wave protection

◆ Number of channels: 300 user channels, 9 fast channels, all ITU channels and 2182 fast channels

◆ External ports: RS422, network port and USB2.0

Emission index:

◆Frequency range: 1.605MHz to 27.5MHz

◆Frequency error: within 10Hz

◆Output power (PEP) : 200W/150W/100W

◆Sideband suppression: ≤ -60 DBC

◆Carrier suppression: ≤-60 DBC

◆Intermodulation: ≤ -28DBC

Reception index:

◆Frequency range: 0.5MHz to 30MHz

◆Sensitivity: ≤+5dBuV（SINAD=20dB）

◆Audio output: 4W/8Ω

◆Audio response: 350Hz~2700Hz, better than 1dB

◆AGC feature: ≥100dB

Antenna coupler:

◆Power supply: 12VDC to 30VDC, reverse connection protection

◆Frequency range: 1.5MHz to 30MHz

◆Current: ＜1.0 A

◆Input impedance: 50 Ohm

◆Operating temperature: -20℃ ~ +60℃

◆Tuning power: minimum 2W continuous wave

◆Interface: Control interface and RFI RF interface

◆Withstand power: 200W (PEP), 150W continuous wave

◆Channel capacity: 300 pcs

◆Tuning time: Initial tuning: ＜6S, maximum 15 seconds;Memory tuning: within 1s

◆Status indicator: tuning, tuning success, tuning failure

◆Tuned standing wave ratio: ＜2, typical value 1.5

◆Antenna matching: Can be equipped with 6 meters, 8 meters, 10 meters whip antenna, inverted V/ three wire antenna.

This product has also obtained a CCS product certificate. If you also need it, please feel free to contact DEYUAN MARINE.
