Product Description
Electric Movable Pilot Ladder Reel

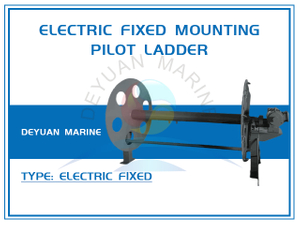

An Electric Fixed Mounting Type Pilot Ladder Reel is suitable fixed mounting on deck and drive by electric motor.
We produce privious version of Electric Pilot Ladder Reel as per CB/T 3727-1995 and also the current version as per CB/T 3727-2013.

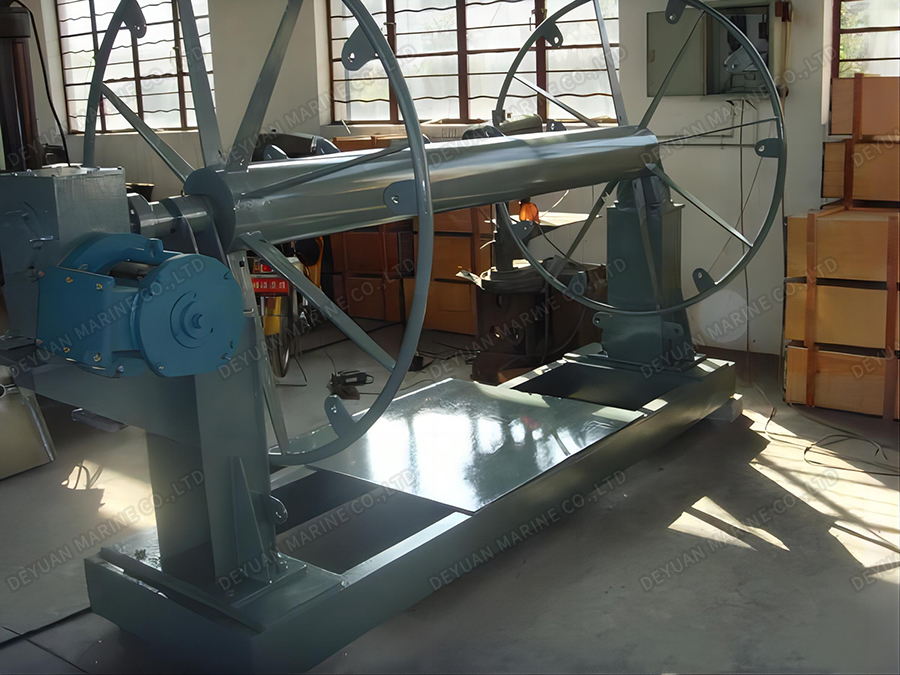

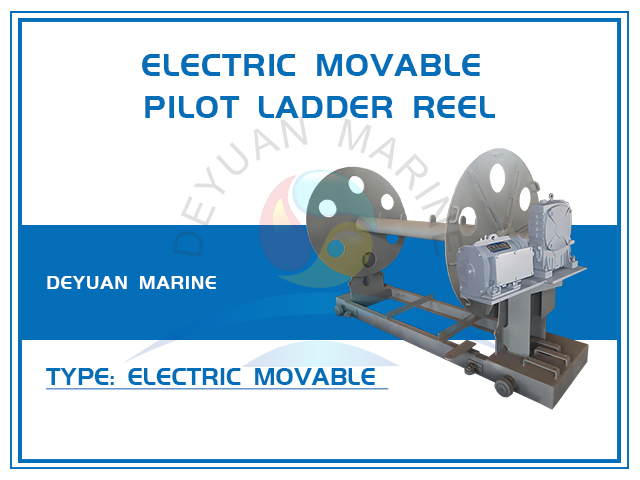

An Electric Movable Type Pilot Ladder Reel is driven by electric motor and it is not fixed on deck, it can adjust the location if necessary.
CB/T 3727-2013 DF Electric Fixed Type Pilot Ladder Reel Type DF
| Reel Model | Speed m/min | Max.Capa. (Ladder Leng.) m | Rated Current A | Volt./Freq. V/Hz | Rated Rotate r/min | Gear Ratio | Rated Power KW | Drum Load KN | Hold Load KN | Weight kg |
| DF | 15~21 | 10 | 4.6 | 380/50Hz /customized | 890 | 1:90 | 1.5 | 1.5 | 3 | 550 |
| DM | 12 | 695 |
