Building a Strong Safety Line for Maritime Container Shipping – Turnbuckles

With the continued growth in global maritime trade, the safety of container stacking and lashing on vessels has drawn increasing attention from shipping companies, shipyards, and ports. As the core adjusting and fastening component in container lashing systems, the container turnbuckle plays a critical role in tensioning, restraining, and preventing the overturning of containers.

The turnbuckle is a high-strength adjustable rigging fitting specifically designed for the deck lashing systems of ocean-going container vessels. It is manufactured in strict compliance with the marine standard CB/T 3818-2013 and can obtain product certification from major classification societies such as CCS, meeting the mandatory requirements for use on ocean-going vessels.

Within the complete deck lashing system of a container vessel (consisting of twistlocks, lashing rods, turnbuckles, and deck fittings), the turnbuckle is the only core component that allows adjustable pre-tensioning. It serves three primary functions:

1.Adjustable length for standard-compliant lashing operations.

2.Sufficient tensioning force to prevent container displacement caused by severe weather and heavy seas.

3.Load distribution to reduce the risk of corner casting tearing and deck pitting plate deformation.

Product advantages:

1.Passes various safety and standard tests, with a safety factor of ≥4.

2.Precision-machined threads ensure smooth and jam-free extension and retraction.

3.Full hot-dip galvanized anti-corrosion coating provides long-lasting protection against rust in marine environments.

4.Available in a full range of specifications and models, and can be supplied as a complete set together with lashing rods, bottom locks, and other accessories.

Though a small-sized ship fitting, the turnbuckle is a vital link in safeguarding the cargo aboard the entire vessel and ensuring navigation safety.

FAQ - Marine Turnbuckles

Q1: What is a marine turnbuckle and what is it used for?

A: A marine turnbuckle is a mechanical tensioning device used to adjust the tension of cables, chains, lashing rods, or tie-down systems on ships and offshore platforms. Its primary function in maritime applications is to secure shipping containers, cargo, and equipment – preventing shifting or loss during rough sea conditions.

Q2: What types of marine turnbuckles does the FAQ Series offer?

A: The FAQ Series offers a variety of turnbuckle types to meet different maritime needs, including:

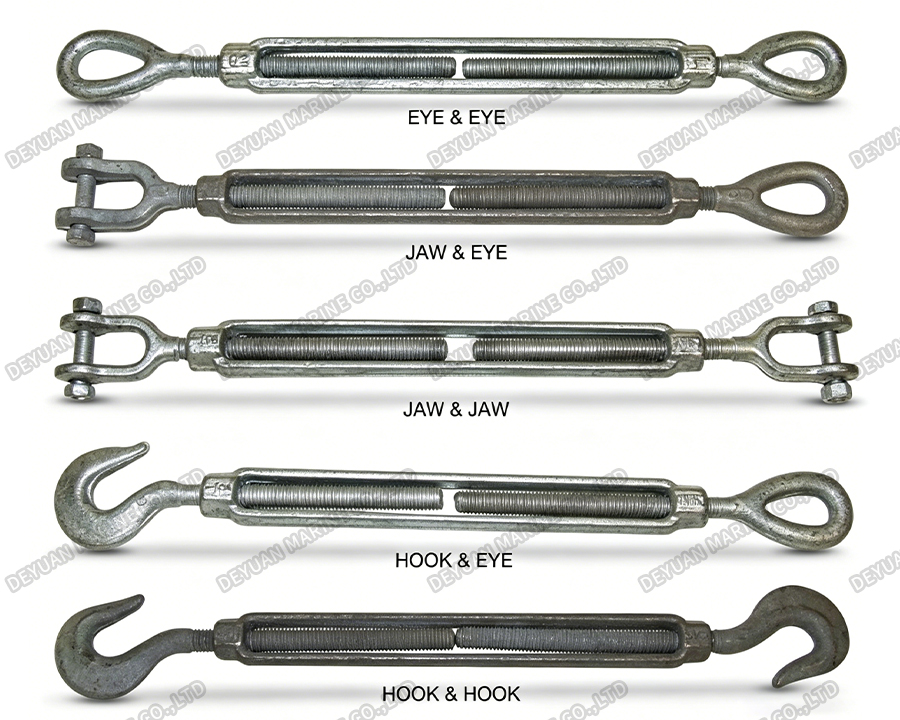

1.Open-body turnbuckles – Allow quick visual inspection of threads and easy cleaning

2.Closed-body turnbuckles – Provide greater strength and protection against impact and corrosion

3.Hook & eye turnbuckles – Suitable for quick connection and temporary lashing

4.Jaw & jaw turnbuckles – Ideal for permanent or semi-permanent rigging applications

Q3: How do I select the right turnbuckle size for my container lashing application?

A: Selecting the correct size depends on four key factors:

1.Working Load Limit (WLL) – Must exceed the expected tension load

2.Thread diameter and length – Determines compatibility with your lashing rods or cables

3.End fitting type – Hook, eye, jaw, or fork must match your connection points

4.Overall length adjustment range – Ensure sufficient take-up for tightening

Q4: What materials are used in marine turnbuckles?

A: The turnbuckles is manufactured using high-quality materials to withstand harsh marine environments:

1.Hot-dipped galvanized carbon steel – Excellent corrosion resistance at an economical price

2.Stainless steel (304 / 316 grade) – Superior rust and saltwater corrosion resistance for long service life

3.High-tensile alloy steel – For extreme load-bearing applications requiring maximum strength

Q5: How do I maintain and inspect my marine turnbuckles?

A: Regular maintenance and inspection are critical for safety and longevity. We recommend:

1.Monthly visual inspection: Check for rust, cracks, bending, or thread damage

2.Annual professional inspection: Have a certified surveyor or engineer inspect all lashing hardware

3.Lubrication: Apply a marine-grade anti-corrosion lubricant to threads to prevent seizing

4.Replacement: Immediately replace any turnbuckle showing signs of wear, deformation, or excessive corrosion

Q6: Can the turnbuckles be used with container lashing rods?

A: Yes. The turnbuckles are specifically designed to integrate seamlessly with container lashing rods. They feature standardized end fitting threads to connect directly to the threaded ends of lashing rods, allowing precise tension adjustment to secure containers stacked on deck.

Q7: Are turnbuckles resistant to seawater corrosion?

A: Yes. All marine turnbuckles are specifically designed to resist seawater corrosion. Our hot-dipped galvanized options provide a robust protective barrier, while our stainless steel versions offer even greater resistance for extended offshore exposure. We also offer additional protective coatings (such as epoxy or zinc-rich paints) for extreme environments.
