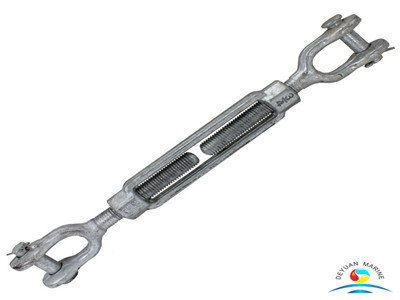

US Type Galvanized Carbon Steel Drop Forged Jaw and Jaw Turnbuckles
A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems.They are commonly used in straight or in-line pull for Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings.
Available material of our turnbuckles are Carbon steel, Malleable Iron, Stainless steel 304 or 316,fabricated as per the standard of US,JIS,DIN1480,DIN1478,Korean standard etc.
We produce the turnbuckles by using the technology of drop forged or Precision Casting.If you want to buy any turnbuckles for you job,pls contact deyuanmarine freely,we standby at anytime.
| Size | WLL | Weight | Dimensions(in) | ||||||||
| in | lbs | lbs | A | B | E(Closed) | G | J (Open) | K (Closed) | M (Open) | N (Closed) | BB |
| 1/4*4 | 500 | 0.36 | 0.25 | 0.41 | 1.58 | 0.62 | 10.9 | 6.9 | 11.9 | 7.9 | 4 |
| 5/16*4.1/2 | 800 | 0.52 | 0.31 | 0.47 | 1.98 | 0.87 | 12.36 | 8.36 | 13.9 | 9.4 | 4.5 |
| 3/7*6 | 1200 | 0.81 | 0.38 | 0.5 | 2.12 | 0.87 | 16.14 | 10.14 | 17.38 | 11.38 | 6 |
| 1/2*6 | 2200 | 1.5 | 0.5 | 0.63 | 2.75 | 1.06 | 17.5 | 11.5 | 19 | 13 | 6 |
| 1/2*9 | 2200 | 1.74 | 0.5 | 63 | 2.75 | 1 | 23.5 | 14.5 | 25 | 16 | 9 |
| 1/2*12 | 2200 | 2.46 | 0.5 | 63 | 2.75 | 61.06 | 29.5 | 17.5 | 31 | 19 | 12 |
| 5/8*6 | 3500 | 2.72 | 0.63 | 0.75 | 3.5 | 1.31 | 18.8 | 12.8 | 20.88 | 14.88 | 6 |
| 5/8*9 | 3500 | 3.24 | 0.63 | 0.75 | 3.5 | 1.31 | 24.8 | 15.8 | 26.88 | 17.88 | 9 |
| 5/8*12 | 3500 | 3.74 | 0.63 | 0.75 | 3.5 | 1.31 | 30.8 | 18.8 | 32.88 | 20.88 | 12 |
| 3/4*6 | 5200 | 4.11 | 0.75 | 0.94 | 4.18 | 1.5 | 20 | 14 | 22.6 | 16.88 | 6 |
| 3/4*9 | 5200 | 5.1 | 0.75 | 0.94 | 4.18 | 1.5 | 26 | 17 | 28.6 | 19.6 | 9 |
| 3/4*12 | 5200 | 5.65 | 0.75 | 0.94 | 4.18 | 1.5 | 32 | 20 | 34.6 | 22.6 | 12 |
| 3/4*18 | 5200 | 7 | 0.75 | 0.94 | 4.18 | 1.5 | 44 | 26 | 46.6 | 28.6 | 18 |
| 7/8*12 | 7200 | 8.17 | 0.88 | 1.13 | 4.85 | 1.75 | 33.36 | 21.36 | 36.32 | 24.32 | 12 |
| 7/8*18 | 7200 | 9.96 | 0.88 | 1.13 | 4.85 | 1.75 | 43.36 | 27.36 | 48.32 | 30.32 | 18 |
| 1*6 | 10000 | 8.56 | 1 | 1.19 | 5.53 | 2.06 | 22.72 | 16.72 | 26.06 | 20.06 | 6 |
| 1*12 | 10000 | 12 | 1 | 1.19 | 5.53 | 2.06 | 34.72 | 22.72 | 38.06 | 26.06 | 12 |
| 1*18 | 10000 | 14 | 1 | 1.19 | 5.53 | 2.06 | 46.72 | 28.72 | 50.06 | 32.06 | 18 |
| 1*24 | 10000 | 17 | 1 | 1.19 | 5.53 | 2.81 | 58.72 | 34.72 | 62.06 | 38.06 | 24 |
| 1-1/4*12 | 15200 | 21.5 | 1.25 | 1.75 | 7.21 | 2.81 | 37.34 | 25.34 | 41.54 | 29.54 | 12 |
| 1-1/4*18 | 15200 | 24.25 | 1.25 | 1.75 | 7.21 | 2.81 | 49.34 | 31.34 | 53.54 | 35.54 | 18 |
| 1-1/4*24 | 15200 | 28 | 1.25 | 1.75 | 7.21 | 2.81 | 61.34 | 37.34 | 65.54 | 41.54 | 24 |
| 1-1/2*12 | 21400 | 30.5 | 1.5 | 2.06 | 7.88 | 2.81 | 38.5 | 26.5 | 43.5 | 31.5 | 12 |
| 1-1/2*18 | 21400 | 36.75 | 1.5 | 2.06 | 7.88 | 2.81 | 50.5 | 32.5 | 55.5 | 37.5 | 18 |
| 1-1/2*24 | 21400 | 40.67 | 1.5 | 2.06 | 7.88 | 2.81 | 62.5 | 38.5 | 67.5 | 43.5 | 24 |
| 1-3/4*18 | 28000 | 55.04 | 1.75 | 2.38 | 9.4 | 3.38 | 53.38 | 35.8 | 59.18 | 41.18 | 18 |
| 1-3/4*24 | 28000 | 63.36 | 1.75 | 2.38 | 9.4 | 3.38 | 65.38 | 41.38 | 71.18 | 47.18 | 24 |
| 2*24 | 37000 | 94.25 | 2 | 2.5 | 11.86 | 3.69 | 69.54 | 45.54 | 76.72 | 52.12 | 24 |
| 2-1/2*24 | 60000 | 165 | 2.5 | 2.88 | 13.56 | 4.44 | 72.98 | 49.98 | 82.18 | 58.18 | 24 |
| 2-3/4*24 | 75000 | 198 | 2.75 | 3.5 | 15.22 | 4.19 | 74.75 | 50.75 | 85.5 | 61.5 | 24 |
