Product Description

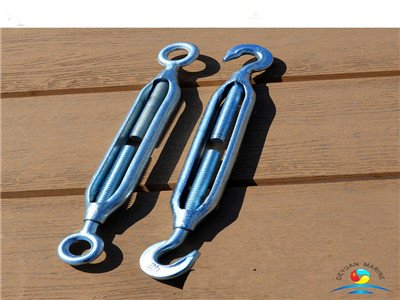

US type Galvanized Quenched and Tempered Hook and Hook Turnbuckles
Deyuan Marine offer a variety range of turnbuckles for option,such as US type,JIS type,DIN1480 type,DIN1478 type,Korean Type Turnbuckles,deck lashing turnbuckles,rigging screw etc.
Popular end fittings are eye/eye,hook/hook,jaw/jaw,hook/eye,jaw/eye,all fittings are interchangeable.surface treatment of our US type Turnbuckles are available in Hot Dipped Galvanized, Electro Galvanized, High polished, Mirror Polished.
This turnbuckle is used for straight or in-line applications,if you are in need of any turnbuckles,pls feel free to contact
deyuanmarine.
| Size(in) | WLL | Weight | Dimensions(in) | ||||||||
| lbs | lbs | A | E (Closed) | J (Open) | K (Closed) | M (Open) | N （Closed) | D | F | BB | |
| 1/4*4 | 400 | 0.3 | 0.25 | 1.59 | 1.59 | 11.12 | 11.94 | 7.94 | 0.45 | 1.27 | 4 |
| 5/16*4 1/2 | 700 | 0.47 | 0.31 | 1.94 | 1.94 | 12.81 | 13.81 | 9.31 | 0.5 | 1.5 | 4.5 |
| 3/8*6 | 1000 | 0.78 | 0.38 | 2.3 | 2.3 | 16.5 | 17.72 | 11.72 | 0.56 | 1.77 | 6 |
| 1/2*6 | 1500 | 1.6 | 0.5 | 2.94 | 2.94 | 18.82 | 20.38 | 13.38 | 0.66 | 2.28 | 6 |
| 1/2*12 | 1500 | 2.28 | 0.5 | 2.94 | 2.94 | 30.82 | 32.38 | 19.38 | 0.66 | 2.28 | 12 |
| 5/8*6 | 2250 | 2.75 | 0.63 | 3.69 | 3.69 | 20.5 | 22.5 | 15.25 | 0.9 | 2.81 | 6 |
| 5/8*12 | 2250 | 3.5 | 0.63 | 3.69 | 3.69 | 32.5 | 34.5 | 21.25 | 0.9 | 2.81 | 12 |
| 3/4*6 | 3000 | 3.89 | 0.75 | 4.52 | 4.52 | 22.38 | 24.78 | 17.28 | 0.98 | 3.33 | 6 |
| 3/4*12 | 3000 | 5.43 | 0.75 | 4.52 | 4.52 | 34.38 | 36.78 | 23.28 | 0.98 | 3.33 | 12 |
| 3/4*18 | 3000 | 8.12 | 0.756 | 4.52 | 4.52 | 46.38 | 48.78 | 29.28 | 0.98 | 3.33 | 18 |
| 7/8*12 | 4000 | 8.1 | 0.88 | 5.19 | 5.19 | 36 | 38.75 | 25 | 1.13 | 3.78 | 12 |
| 1*12 | 5000 | 11.93 | 1 | 5.84 | 5.84 | 37.63 | 40.69 | 26.69 | 1.25 | 4.25 | 12 |
| 1*18 | 5000 | 14 | 1 | 5.84 | 5.84 | 49.63 | 52.69 | 32.69 | 1.25 | 4.25 | 18 |
| 1*24 | 5000 | 17.25 | 1 | 5.84 | 5.84 | 61.63 | 64.69 | 38.69 | 1.25 | 4.25 | 24 |
| 1 1/4*12 | 6500 | 20.58 | 1.25 | 7.22 | 7.22 | 40.44 | 44.06 | 29.56 | 1.5 | 5.13 | 12 |
| 1 1/4*18 | 6500 | 23 | 1.25 | 7.22 | 7.22 | 52.44 | 56.06 | 35.56 | 1.5 | 5.13 | 18 |
| 1 1/4*24 | 6500 | 27 | 1.25 | 7.22 | 7.22 | 64.44 | 68.06 | 41.56 | 1.5 | 5.13 | 24 |
| 1 1/2*12 | 7500 | 27.5 | 1.5 | 8.34 | 8.34 | 43.94 | 47.44 | 32.44 | 1.88 | 5.75 | 12 |
| 1 1/2*18 | 7500 | 31 | 1.5 | 8.34 | 8.34 | 55.96 | 59.44 | 38.44 | 1.88 | 5.75 | 18 |
| 1 1/2*24 | 7500 | 37.5 | 1.5 | 8.34 | 8.34 | 67.94 | 71.44 | 44.44 | 1.88 | 5.75 | 24 |
