Product Description

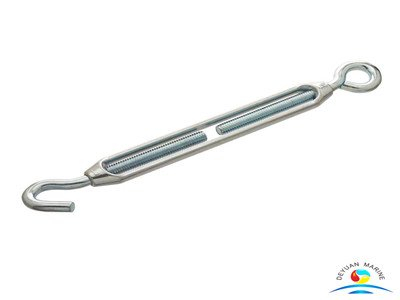

US Type Galvanized Wire Rope Eye and Hook Turnbuckles for Rigging
Turnbuckles are designed for construction and renovation projects, aircrafts and sailboats, manufacturing facilities, and piping systems,integrated into rigging assemblies to allow for fine tension adjustments in the rope or cable.
During the fabrication process, turnbuckles are drop forged from special bar quality steel,surface treatment of the turnbuckles can be Self-Colored, Galvanized, Plated, Electro-Polished.
eye and eye turnbuckle,hook and hook turnbuckle,jaw and jaw turnbuckle,hook and eye turnbuckle,jaw and eye turnbuckles are available.If you are in need of any turnbuckles, pls feel free to contact us.
| Size（in) | WLL | Weight | ||||||||||||
| lbs | lbs | A | D | E Closed | F | J (Open) | K （Closed) | M(Open) | N(closed) | R | S | X closed | BB | |
| 1/4*4 | 400 | 0.3 | 0.25 | 0.45 | 1.59 | 1.27 | 11.46 | 7.46 | 12.09 | 8.09 | 0.78 | 0.34 | 1.75 | 4 |
| 5/16*4-1/2 | 700 | 0.47 | 0.31 | 0.5 | 1.94 | 1.5 | 13.19 | 8.69 | 13.47 | 9.47 | 0.94 | 0.44 | 2.09 | 4.5 |
| 3/8*6 | 1000 | 0.75 | 0.38 | 0.56 | 2.3 | 1.77 | 16.5 | 10.98 | 17.94 | 11.94 | 1.12 | 0.53 | 2.52 | 6 |
| 1/2*6 | 1500 | 1.6 | 0.5 | 0.66 | 2.94 | 2.28 | 18.45 | 12.45 | 19.67 | 13.16 | 1.44 | 0.72 | 3.23 | 6 |
| 1/2*9 | 1500 | 1.83. | 0.5 | 0.66 | 2.94 | 2.28 | 24.45 | 15.45 | 25.67 | 16.67 | 1.44 | 0.72 | 3.23 | 9 |
| 1/2*12 | 1500 | 2.08 | 0.5 | 0.66 | 2.94 | 2.28 | 30.45 | 18.45 | 31.67 | 19.67 | 1.44 | 0.72 | 3.23 | 12 |
| 5/8*6 | 2250 | 2.75 | 0.63 | 0.84 | 3.69 | 2.81 | 19.96 | 13.96 | 21.47 | 15.47 | 1.75 | 0.88 | 3.9 | 6 |
| 5/8*9 | 2250 | 3.13 | 0.63 | 0.84 | 3.69 | 2.81 | 25.96 | 16.96 | 27.47 | 18.47 | 1.75 | 0.88 | 3.9 | 9 |
| 5/8*12 | 2250 | 3.5 | 0.63 | 0.84 | 3.69 | 2.81 | 31.96 | 19.96 | 33.47 | 21.47 | 1.75 | 0.88 | 3.9 | 12 |
| 3/4*6 | 3000 | 3.89 | 0.75 | 0.98 | 4.52 | 3.33 | 21.63 | 25.86 | 23.45 | 17.45 | 2.09 | 1 | 4.69 | 6 |
| 3/4*9 | 3000 | 4.16 | 0.75 | 0.98 | 4.52 | 3.33 | 27.63 | 31.96 | 29.45 | 20.45 | 2.09 | 1 | 4.69 | 9 |
| 3/4*12 | 3000 | 5.43 | 0.75 | 0.98 | 4.52 | 3.33 | 33.63 | 21.63 | 35.45 | 23.45 | 2.09 | 1 | 4.69 | 12 |
| 3/4*18 | 3000 | 7.25 | 0.75 | 0.98 | 4.52 | 3.33 | 45.63 | 27.63 | 47.45 | 29.45 | 2.09 | 1 | 4.69 | 18 |
| 7/8*12 | 4000 | 8.1 | 0.88 | 1.13 | 5.19 | 3.78 | 34.78 | 22.78 | 36.91 | 24.91 | 2.38 | 1.25 | 5.1 | 12 |
| 7/8*18 | 4000 | 9.95 | 0.88 | 1.13 | 5.19 | 3.78 | 46.78 | 28.78 | 48.91 | 30.91 | 2.38 | 1.25 | 5.1 | 18 |
| 1*6 | 5000 | 9.33 | 1 | 1.25 | 5.84 | 4.25 | 24.8 | 18.8 | 27.2 | 21.2 | 3 | 1.44 | 6.36 | 6 |
| 1*12 | 5000 | 11.93 | 1 | 1.25 | 5.84 | 4.25 | 36.8 | 24.8 | 39.2 | 27.2 | 3 | 1.44 | 6.36 | 12 |
| 1*18 | 5000 | 14 | 1 | 1.25 | 5.84 | 4.25 | 48.8 | 30.8 | 51.2 | 33.2 | 3 | 1.44 | 6.36 | 18 |
| 1*24 | 5000 | 17.25 | 1 | 1.25 | 5.84 | 4.25 | 60.8 | 36.8 | 63.2 | 39.2 | 3 | 1.44 | 6.36 | 24 |
| 1-1/4*12 | 5000 | 19 | 1.25 | 1.5 | 7.22 | 5.13 | 39.13 | 27.13 | 42.06 | 30.06 | 3.56 | 1.81 | 7.72 | 12 |
| 1-1/4*18 | 5000 | 23 | 1.25 | 1.5 | 7.22 | 5.13 | 51.13 | 33.13 | 54.06 | 36.06 | 3.56 | 1.81 | 7.72 | 18 |
| 1-1/4*24 | 5000 | 27 | 1.25 | 1.5 | 7.22 | 5.13 | 63.13 | 39.13 | 66.06 | 42.06 | 3.56 | 1.81 | 7.72 | 24 |
| 1-1/2*12 | 7500 | 27.5 | 1.5 | 1.88 | 8.34 | 5.75 | 41.72 | 29.72 | 44.72 | 32.72 | 4.06 | 2.12 | 8.62 | 12 |
| 1-1/2*18 | 7500 | 31 | 1.5 | 1.88 | 8.34 | 5.75 | 53.72 | 35.72 | 56.72 | 38.72 | 4.06 | 2.12 | 8.62 | 8 |
| 1-1/2*24 | 7500 | 37.5 | 1.5 | 1.88 | 8.34 | 5.75 | 65.72 | 41.72 | 68.72 | 44.72 | 4.06 | 2.12 | 8.62 | 24 |
