Introduction Of High Pressure Hydraulic Rubber Hose


Introduction Of High Pressure Hydraulic Rubber Hose


High Pressure Hydraulic Rubber Hose are used to transport petroleum base (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and water base liquid (such as emulsification) with certain pressure and temperature in the mine hydraulic support, oil field development, engineering construction, lifting transportation, metallurgy forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools, mechanization and automation hydraulic system of various industrial departments Liquid, oil and water emulsion, water) and liquid transmission pipeline.


According to the manufacturing process, high-pressure oil pipe is mainly divided into high-pressure steel wire wound rubber hose and high-pressure steel wire braided rubber hose .

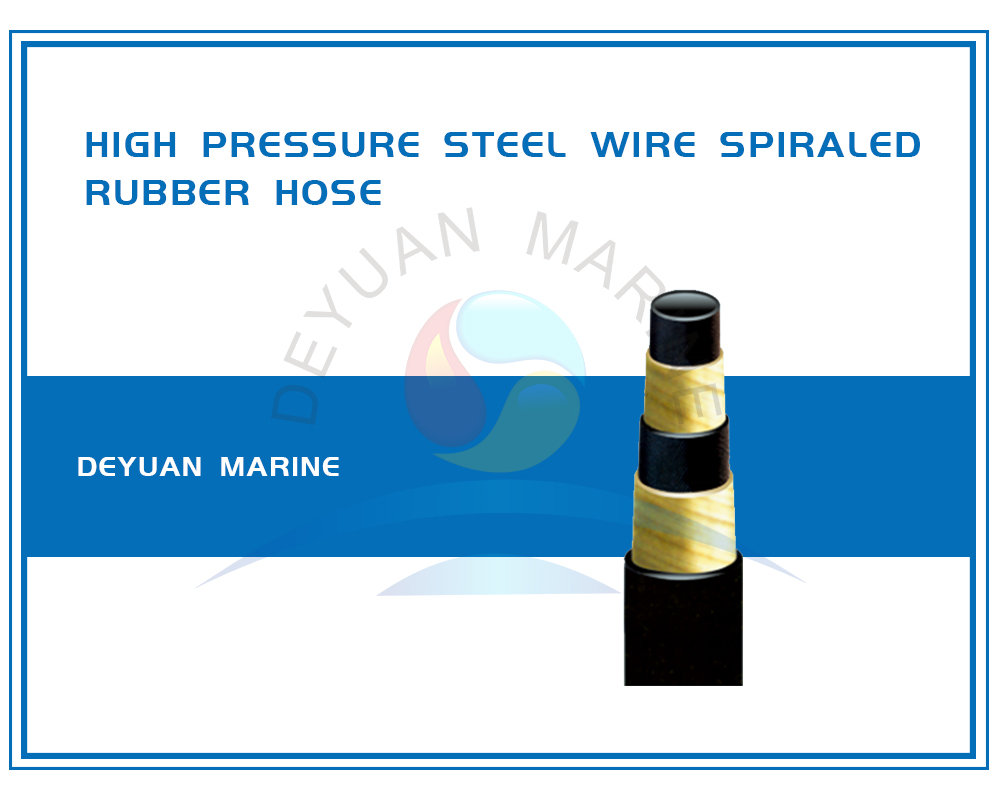

Steel wire wound rubber hose

The structure of high pressure steel wire wound hose is mainly composed of inner rubber layer, middle rubber layer, four or more layers of alternately wound steel wire reinforcement layer and outer rubber layer.


The inner rubber layer can make the conveying medium bear the pressure and protect the steel wire from erosion. The outer rubber layer can protect the steel wire from damage. The steel wire (ф 0.3-2.0 reinforcement layer) layer is the skeleton material to enhance the steel wire.


High pressure steel wire wound oil hose (high pressure oil hose) purpose: high pressure steel wire reinforced hydraulic oil pipe is mainly used for mine hydraulic support and oil field development, suitable for engineering construction, hoisting and transportation, metallurgy and forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools, as well as mechanical and automatic hydraulic system of various industrial departments with certain pressure (higher pressure) Oil based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and water-based liquid (such as emulsion, oil-water emulsion, water) with temperature and liquid transmission, the maximum working pressure resistance can reach 70-120mpa. High pressure steel wire wound oil pipe (high pressure oil pipe) working temperature: - 40 ℃ ~ 120 ℃. Product specification range: DN6mm ~ DN305mm.


Steel wire braided rubber hose

The structure of high pressure steel wire braided rubber hose is mainly composed of liquid resistant synthetic rubber inner layer, medium rubber layer, I, II, III steel wire braid layer and weather resistant synthetic rubber outer layer.


Purpose of high pressure steel wire braided hose: high pressure steel wire reinforced hydraulic tubing is mainly used for mine hydraulic support and oil field development, suitable for engineering construction, lifting and transportation, metallurgy and forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools, and mechanical and automatic hydraulic systems of various industrial departments to transport petroleum base (such as mineral oil) with certain pressure and temperature , soluble oil, hydraulic oil, fuel oil, lubricating oil) and water-based liquid (such as emulsion, oil-water emulsion, water) and liquid transmission.

Working temperature of high pressure steel wire braided hose: oil -40 ~ 100 C, air -30 ~ 50 C, water emulsion below +80 C. Specification range of high pressure steel wire braided rubber hose: DN5mm ~ DN102mm.


Deyuan can provide you with all kinds of high-pressure hoses. Please feel free to contact us for more information and offers.
