Inspection Of Inflatable Life Jacket

Deyuan Marine supply kinds of inflatable life jacket and also Life jacket trainning. Approved certificate are available for client's if needed.

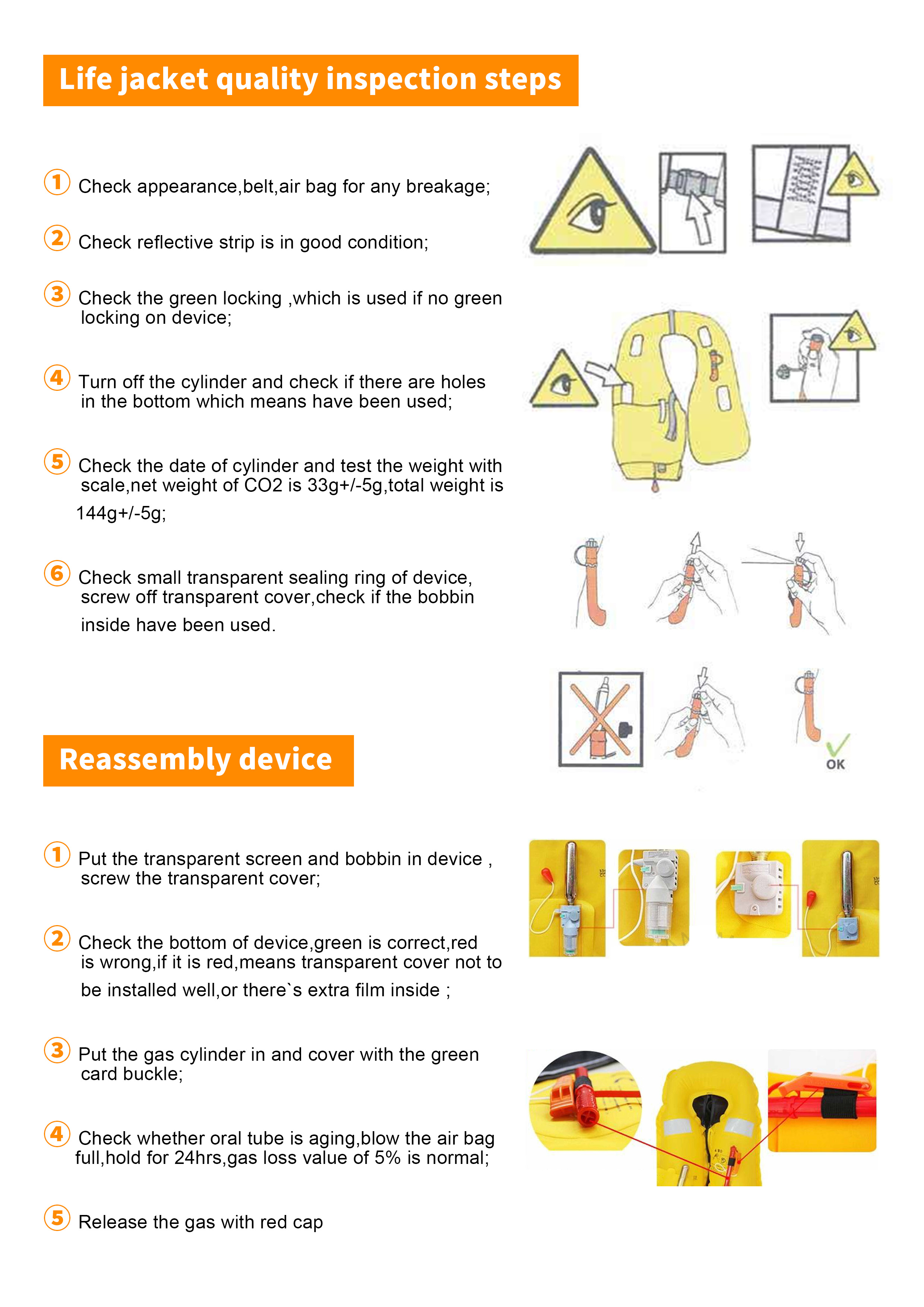

How to inspect an inflatable life jacket?

1. check appearance,belt,air bag for any breakage ;

2. Check reflective strip is in good condition;

3. Check the green locking ,which is used if no green locking on device ;

4. Turn off the cylinder and check if there are holes in the bottom which means have been used .

5. Check the date of cylinder and test the weight with scale,net weight of CO2 is 33g+/-5g,total weight is 144g+/-5g;

6. Check small transparent sealing ring of device,screw off transparent cover,check if the bobbin inside have been used.





Reassembly device:

1. Put the transparent screen and bobbin in device , screw the transparent cover;

2. Check the bottom of device,green is correct,red is wrong,if it is red,means transparent cover not to be installed well,or there`s extra film inside ;

3. Put the gas cylinder in and cover with the green card buckle;

4. Check whether oral tube is aging,blow the air bag full,hold for 24hrs,gas loss value of 5% is normal;

Release the gas with red cap
