Deyuan Marine Diesel Engine Driven Emergency Fire Pump

Views:103     Author:Site Editor     Publish Time: 2020-06-30      Origin:Site

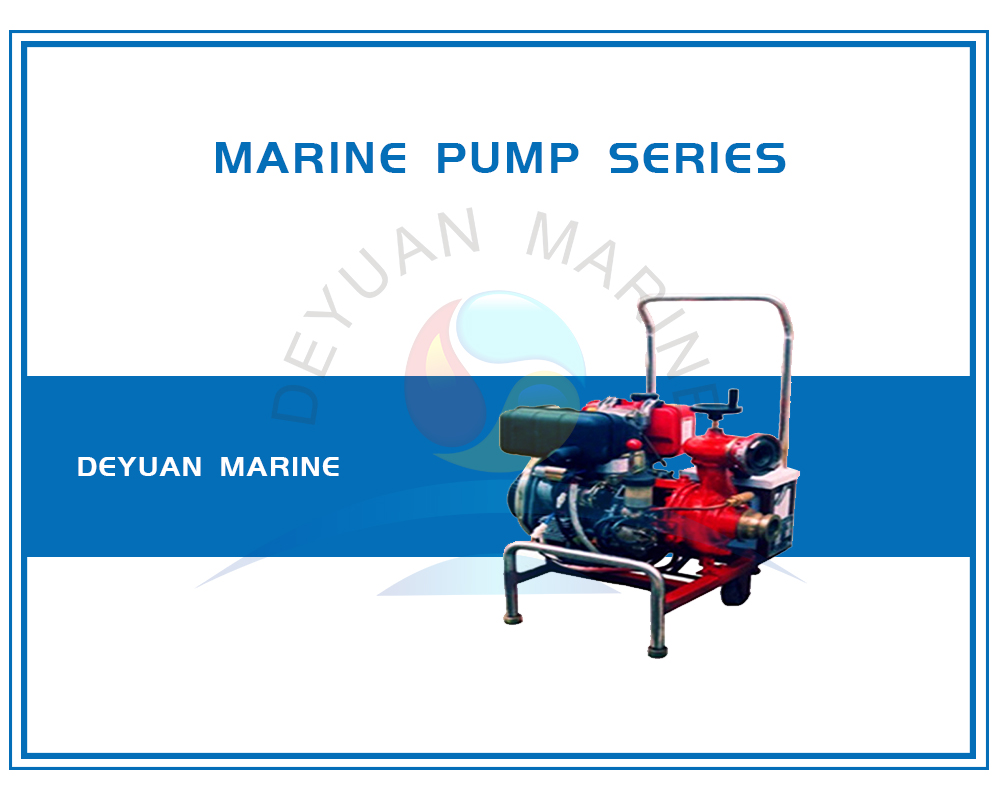

Deyuan Marine Diesel Engine Driven Emergency Fire Pump

Model 65CWY-30 Marine Diesel Emergency Fire Pump


Diesel Emergency Fire Pump:

Emergency fire pump, with independent power source, can start quickly and has self-priming ability in emergency use of fire pump. Ship engineering (first-level discipline), ship machinery (second-level discipline), generally used in the engine room area fire can not start the main fire pump emergency fire pump to the engine room fire.

Our diesel emgergency fire pump is designed according to the CCS standard,maily used for emergency fire protection on vessels or industrial and mining enterprises,port terminals,warehouses etc.

when the diameter is between Φ50-Φ65,the pump set can be manual started or electrically started,the diesel engine is vertical,single cylinder,4 stroke and air cooled.
when the diameter is Φ80-Φ100,the pump set can be spring started or electrically started,the diesel engine is vertical,multi-cylinder,4 stroke and water cooled.


If you are interested,pls donot hesitate to contact us for further discussion.


Portable Sliding vane pump priming
Type Capacity (m3/h)Head(m)Speed
(r/min)
Suction head
m
Time of discharge (s)
65CWY-30253036006~7≤35
65CWY-40304036006~7≤35
TypeDiesel engineWeight
kg
Diameter of discharge
mm
TypePower( kg)
65CWY-30KM186F5.798/8365/50
65 CWY-40KM186F5.7100/8565/50


Details about the Deyuan Marine Pump Series:

specification

other
