Deyuan Air Vent Heads

Deyuan air vent heads serve as the essential "breathing" apparatus for a vessel’s internal systems. Whether a ship is loading fuel, discharging ballast water, or navigating heavy seas, these devices perform two life-critical functions:

-  Pressure Balancing: By allowing air to flow freely during liquid injection or discharge, the units prevent the catastrophic structural failure of tanks caused by overpressure or vacuum effects.

-  Automatic Water Ingress Prevention: Each unit is equipped with a high-responsiveness shut-off mechanism. When waves submerge the vent, an internal float or disc rises instantaneously due to buoyancy, sealing the pipe to prevent seawater from contaminating fresh water or fuel supplies.

We recognizes that global shipping requires hardware that fits diverse technical frameworks. To accommodate this, the product line is engineered across a wide spectrum of international installation and connection standards:

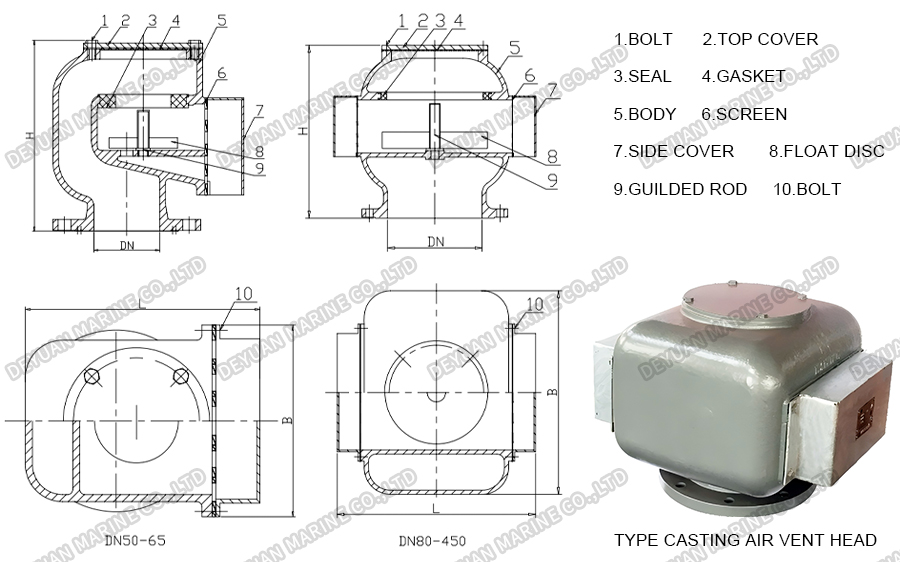

-  Structural Variety: The portfolio includes Disc Type heads for superior sealing in ballast tanks, Ball Type units for simple reliability, and traditional Gooseneck designs for natural ventilation.

-  Global Standards: Flange connections are fully compatible with JIS (5K/10K), DIN (PN10/PN16), and ANSI (Class 150) specifications.

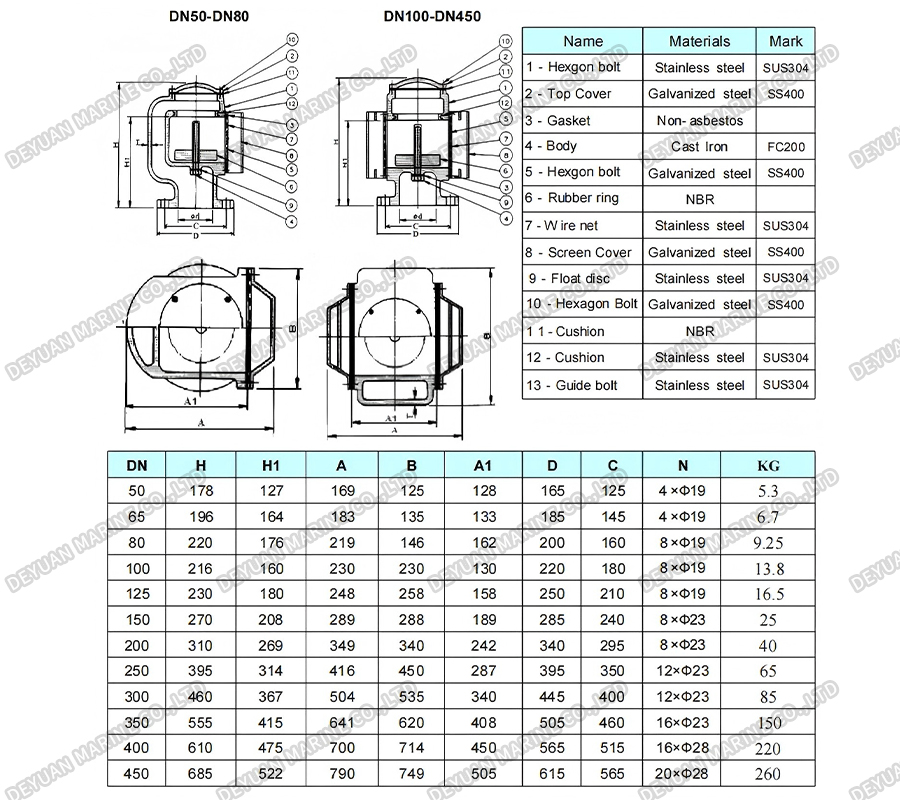

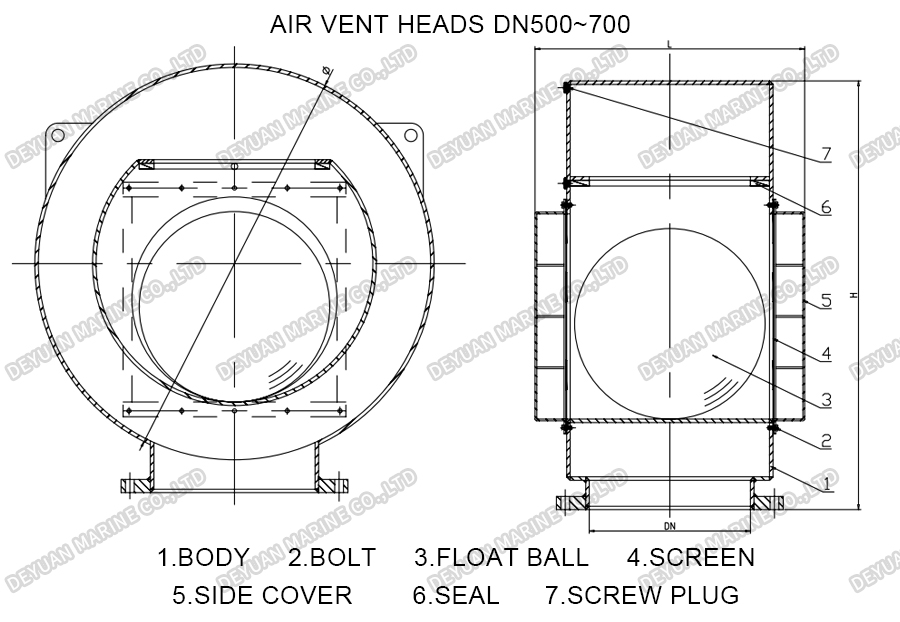

-  Dimensional Range: Standard sizes range from DN40 to DN1000, ensuring a solution for every vessel size, from tugboats to ultra-large crude carriers.

-  Flexible Installation: Options include Type A and E vertical mounts, as well as side-mount configurations for space-constrained environments.

Durability is the core of the Deyuan manufacturing philosophy. Every air vent head is built to resist the corrosive effects of salt spray and the physical impact of the open ocean.

-  Ductile Cast Iron: For high durability and cost-effectiveness in standard applications.

-  Aluminum Alloy: For lightweight requirements and superior resistance to seawater corrosion.

-  Stainless Steel / Cast Steel: Specifically for highly corrosive environments or specialized industrial projects.

Beyond structural strength, each unit is fitted with stainless steel mesh to block insects and foreign objects, while integrated fireproof screens act as a vital barrier against external sparks.

In an industry where compliance is the foundation of trust, Deyuan maintains a complete portfolio of Type Approval Certificates from the world’s most respected classification societies. As a supplier committed to the IACS (International Association of Classification Societies) standards, Deyuan products are fully certified by:

·  CCS (China)

·  ABS (USA)

·  LR (UK)

·  DNV (Norway/Germany)

·  BV (France)

·  NK (Japan)

·  RINA (Italy)

These comprehensive certifications ensure that Deyuan vents meet the stringent safety and environmental requirements of any flag state, providing ship owners and shipyards with globally recognized quality assurance.
