Marine Electronic Inclinometer Installed in Wheelhouse

Views:128     Author:Site Editor     Publish Time: 2020-07-24      Origin:Site

Marine Electronic Inclinometer Installed in Wheelhouse

Marine Electronic Inclinometer Installed in Wheelhouse


Introduction:
It is installed in wheelhouse. When the ship hull heels, the inclined sensor installed in EIM send the heel angle single to CPU. After the single is calculated, the current actual heel angle, roll amplitude and roll period of the ship can be displayed. The positive and negative direction of heel angle (zero is used as the basic value) can be displayed at the same time. The relate information, such as actual heel angle, device position, alarm signal, etc can be transmitted to VDR, BAS and external systems through communication interfaces and output contacts. And the EIM can be acknowledged and silenced by control single from external systems

Specification:
Heel angle
-Display range: -90°~0~+90° (Pendulum pointer:0-±50°)
-Display accuracy (0~±50°): 5% of reading or ±1°(whichever is the greater)

Roll amplitude
-Display range: -90°~0~+ 90°
-Display accuracy (0~±50°):  5% of reading or ±1°(whichever is the greater)

Roll period
-Display range: 4 s ~ 40 s
-Display accuracy: 5 % of reading or ± 1 s
(whichever is the greater)

Relative humidity: 30%~90%
Air pressure: 90 kPa ± 10 kPa
Angles of inclination and rolling: heel: 50°; Trim: 10°
Vibration and shocks which arise from the normal.
operation of the ship.
Damp air, oil mist, salt mist and mildew.
Electromagnetic compatibility.
Power supply:
EIM(Electronic InclinoMeter) system has the auto-changeover function for both supplies, the main source is to supply first.

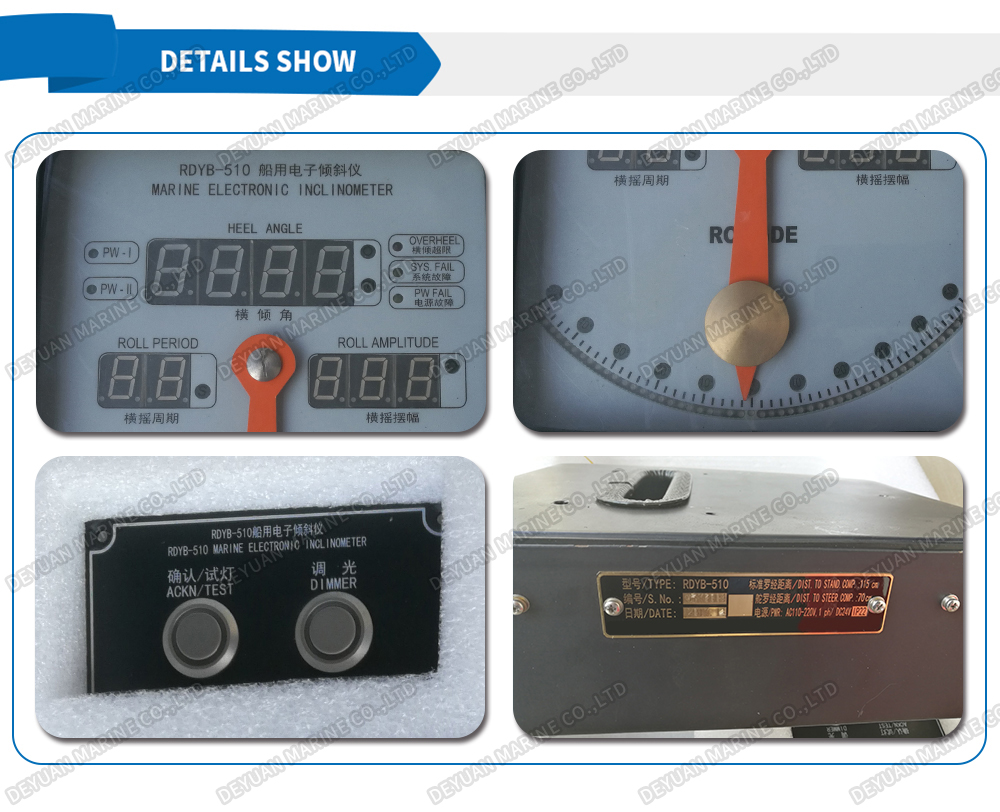

detail
