Common Applications of Wireless Tension Links

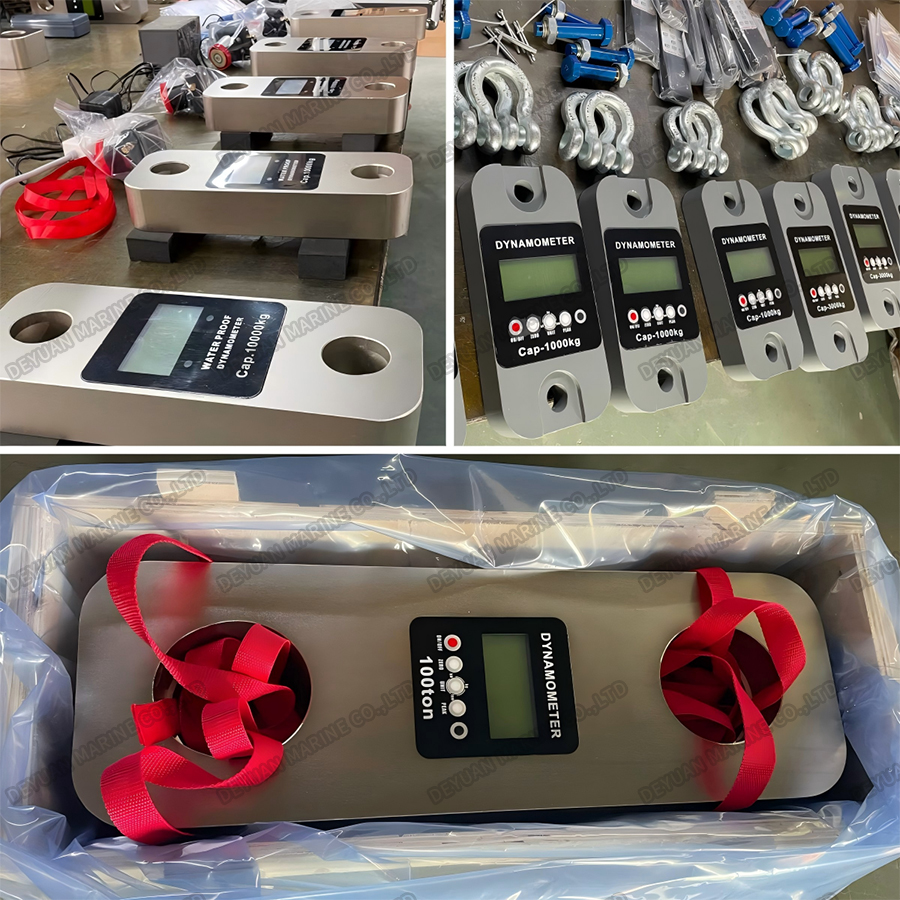

The Wireless Tension Link is a high-precision, battery-powered load measurement device designed for tension force monitoring in a wide range of industrial and rigging applications. Combining the ruggedness of a traditional load shackle or tension link with advanced wireless telemetry, this instrument eliminates the need for cumbersome cables while delivering real-time load data to a remote display or mobile device.

Engineered for safety, accuracy, and durability, the Wireless Tension Link is an essential tool for crane operators, rigging professionals, offshore engineers, and construction site managers who require dependable tension measurement in demanding environments.

Key Features

1. High-Precision Load Measurement:
*Equipped with a strain-gauge-based load cell, the Wireless Tension Link delivers exceptional accuracy with a typical error of less than ±1% of full-scale capacity. The built-in temperature compensation ensures consistent performance across a wide operating temperature range.

2. Wireless Data Transmission:
*Integrated Bluetooth Low Energy (BLE) or proprietary RF modules transmit load data wirelessly to handheld receivers, smartphones, tablets, or centralized control systems. With an operating range of up to 100 meters (330 feet) in open environments, operators can monitor loads from a safe distance.

3. Rugged Construction:
*Manufactured from high-strength alloy steel or stainless steel, the tension link is built to withstand the harshest conditions. A corrosion-resistant finish—available in galvanized, painted, or electroless nickel plating—provides protection against moisture, salt spray, and chemical exposure.

4. Long Battery Life:
*Powered by replaceable or rechargeable lithium batteries, the device offers extended operation time—typically 500 to 1,000 hours of continuous use—reducing downtime and maintenance costs.

5. User-Friendly Interface:
*Onboard LED indicators provide visual status feedback for power, connection, and overload warnings. The device pairs seamlessly with companion mobile apps or dedicated handheld terminals for configuration, calibration, and data logging.

6. Overload Protection:
*Built-in mechanical and electronic overload protection safeguards the sensor from damage during peak load events, with a safe overload rating of 150% of capacity and an ultimate overload rating of 300% to 500%.

7. Data Logging & Reporting:
*Onboard memory stores thousands of load readings with time-stamped records. Data can be exported via USB or wireless connection for analysis, compliance reporting, and maintenance planning.

Applications

1. Crane & Hoist Operations:
*Monitor lifting loads in real time to prevent overloading and ensure safe crane operations. The wireless capability allows the operator to view load data from the cab or ground level.

2. Offshore & Marine:
*Ideal for mooring line tension monitoring, anchor handling, and subsea lifting operations where corrosion resistance and remote monitoring are critical.

3. Construction & Heavy Engineering:
*Used in structural lifting, bridge construction, and heavy equipment installation to verify load distribution and ensure rigging integrity.

4. Mining & Quarrying:
*Monitor tension on conveyor systems, haulage lines, and dragline operations in dusty and high-vibration environments.

5. Research & Testing:
*Employed in material testing, structural load testing, and force calibration laboratories for precise tension measurement.

System Components

A complete Wireless Tension Link system typically includes:

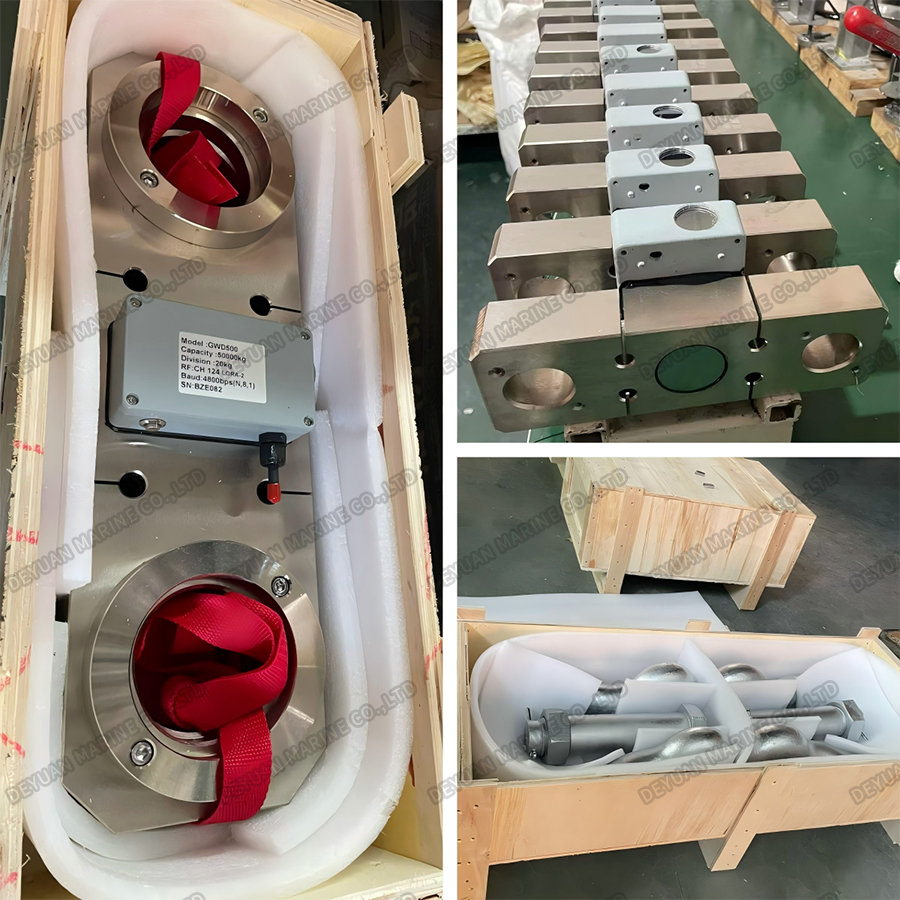

*Tension Link Sensor – The load-bearing unit with integrated load cell and wireless transmitter.

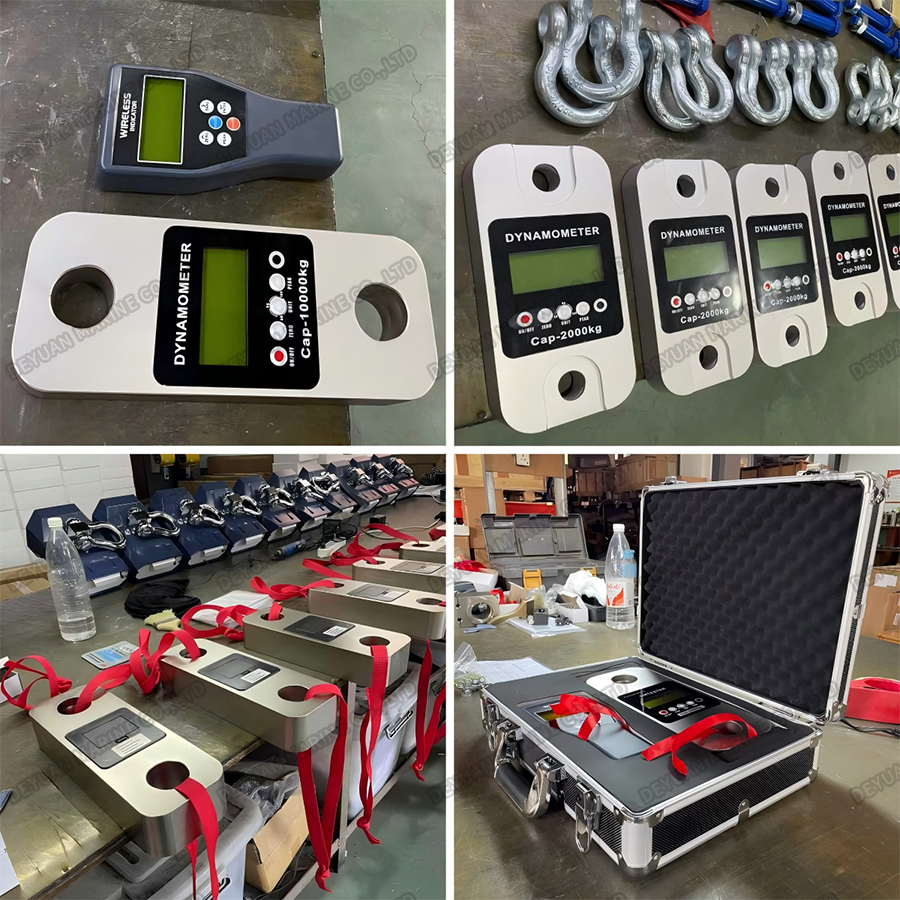

*Handheld Receiver / Display – A dedicated terminal showing real-time load values, peak hold, and alarm status.

*Mobile Application – Companion software for ios and Android devices enabling remote monitoring, data logging, and configuration.

*Charging Dock / Cable – For rechargeable battery models.

*Calibration Certificate – Traceable to national standards.

Main Technical Data:

MODEL	Max. capacity(kg)	Min. weigh(kg)	Division(kg)	Total dispay counts (n)
B-5	5000	40	2	2500
B10	10000	100/80	5	2000
B-20	10000	200	10	2000
B-30	30000	300	10/20	3000
B-50	50000	400	20	2500
B-100	100000	1000	50	2000
B-150	150000	1000	50	3000
B-200	200000	4000	200	2000

Safety & Compliance

The Wireless Tension Link is designed and manufactured in accordance with international safety standards including:

1. ASME B30.26 – Rigging hardware safety standards.

2. DIN EN 13155 – Safety requirements for lifting attachments.

3. CE Marking – Conforms to EU health, safety, and environmental standards.

4. RoHS Compliant – Restriction of Hazardous Substances

Each unit undergoes rigorous factory calibration and proof-load testing before shipment, and a certificate of calibration is provided with every device.

Conclusion

The Wireless Tension Link represents the next generation of tension monitoring technology—combining the reliability of precision load cells with the convenience and safety of wireless communication. Whether you are lifting heavy loads on a construction site, monitoring mooring lines offshore, or ensuring safety on stage, this versatile instrument delivers accurate, real-time data when and where you need it most.

With its rugged construction, long battery life, and compliance with international safety standards, the Wireless Tension Link is the trusted choice for professionals who demand performance, safety, and reliability in every lift.

Wireless Tension Link - FAQ

Q1: What is a Wireless Tension Link, and what does it measure?

A: It is a digital load‑measuring device that integrates a strain‑gauge load cell with a wireless transmitter, typically shaped like a shackle or connecting link. It is used to measure tension (pull force) in real time on wire ropes, guy lines, anchor chains, slings, and other flexible connectors. The data is transmitted wirelessly to a handheld receiver or a mobile app, helping operators avoid overloads and ensure safe lifting operations.

Q2: Can this product replace a standard shackle?

A: Yes. Its mechanical design meets the strength requirements of lifting shackles or connecting links, so it can be used as a load‑bearing component. However, it is a precision instrument with a clear distinction between Working Load Limit (WLL) and ultimate breaking strength. Do not exceed 150% of the rated capacity for extended periods (which is the safe overload limit), whereas ordinary shackles are only rated by breaking strength.

Q3: What capacity ranges are available, and how do I choose the right model?

A: Standard capacities range from 1 ton to 500 tons, with custom ranges available. The general rule is: the expected maximum tension should fall between 20% and 100% of the sensor’s full‑scale capacity for best accuracy. Avoid using a very large‑capacity unit (e.g., 100 t) to measure a small force (e.g., 2 t), as resolution will be insufficient.

Q4: How do I install the device? Do I need special tools?

A: Installation is the same as for a standard shackle – simply remove the pin, insert it through the eye of the sling or fitting, and secure it. No special tools are required. Ensure the load is applied squarely through the centre of the link; off‑axis loading will affect accuracy and may damage the sensor.

Q5: Can one receiver monitor multiple Tension Links at the same time?

A: Yes. Our handheld receivers and mobile apps support multi‑channel grouping, allowing you to connect and cycle through up to 8–16 units simultaneously (depending on the protocol). This is ideal for multi‑point lifting systems or complex cable net tension monitoring.

Q6: The display shows a non‑zero reading when no load is applied. What should I do?

A: This is normal due to residual mechanical stress. With no load applied, press and hold the “Zero” / “Tare” button on the receiver or in the app. The system will reset the current value to zero, and you can then start measuring.

Q7: Will I lose data if the wireless signal drops out?

A: No. The unit has an internal memory that stores up to 10,000–50,000 time‑stamped readings. Even if the wireless link is temporarily lost, the Tension Link continues logging data. Once the connection is restored, all historical records are automatically back‑filled to the receiver.

Q8: What is the wireless transmission range, and does it decrease with obstacles?

A: In open, line‑of‑sight conditions, the stable range is up to 100 metres (330 feet). In steel structures, ship compartments, or behind concrete walls, the range typically reduces to 30–50 metres. For heavily obstructed sites, we recommend the high‑power RF version, which supports repeater extensions.

Q9: How often should the unit be calibrated, and how is it done?

A: We recommend calibration every 12 months or after every 2,000 significant lift cycles. Return the unit to the factory or use a certified load‑cell test machine. A simple on‑site check is to hang a known standard weight and compare the reading; if the deviation exceeds the tolerance, use the app’s “multi‑point linear correction” feature or send the unit back for professional service.

Q10: What is the warranty period, and what is not covered?

A: The standard warranty is 12 months from the date of delivery. Damage caused by overloading, unauthorised disassembly, water ingress (beyond the specified IP rating), impact, or dropping is not covered.
