Product Description

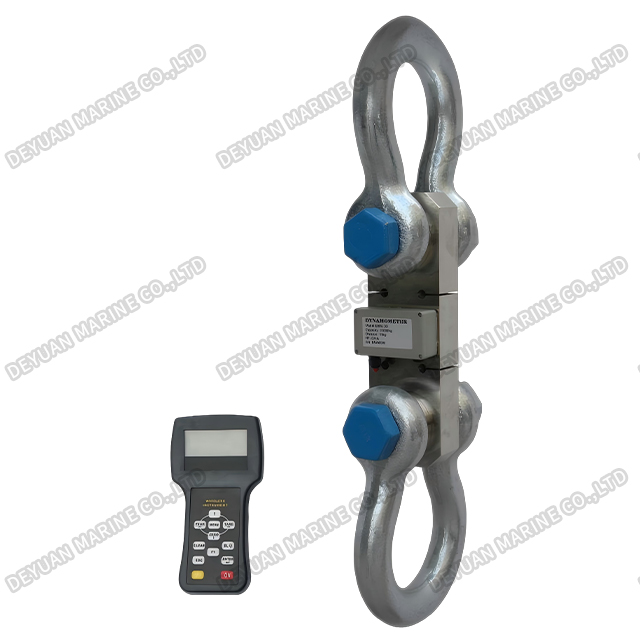

Wireless Telemetry Tension Link
Product introduction
Wireless tension link is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, wireless tension link is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator 280D.
We may build to your special and unique requirements. If you want to know more about our Wireless Tension Link kindly send email and discuss with us.
Key technical indicators
| Product Standards | GB/T11883-2002 Electronic Force Gauge |
| Force Gauge/Instrument Display | 25mm high 5-digit LCD screen with backlight |
| Waterproof Rating | IP66 |
| Initial Zeroing Range | 20% maximum weighing capacity |
| Manual Zeroing Range | 4% maximum weighing capacity |
| Tare Range | 100% maximum weighing capacity |
| Reading Stabilization Time | ≤10 seconds |
| Overload Alarm Value | Maximum weighing capacity +9e |
| Safe Load | 125% maximum weighing capacity |
| Ultimate Load | 400% maximum weighing capacity |
| Continuous Use Time | ≥90 hours |
| Force Gauge Battery | One 18650 lithium battery |
| Instrument Battery | One 18650 lithium battery |
| Operating Temperature Range | -10℃～＋40℃ (14°F ~ 104°F) |
| Operating Humidity Range | ≤85% at 20℃ |
| Wireless Distance | 80 meters in open area |
| Wireless Frequency | 433MHz |
Product Specifications
| Model | Weighing Range (kg) | Minimum Weighing Capacity (kg) | Scale Division (kg) | Number of Scale Divisions (n) |
| B-5 | 5000 | 40 | 2 | 2500 |
| B-10 | 10000 | 100 | 5 | 2000 |
| B-20 | 20000 | 200 | 10 | 2000 |
| B-30 | 30000 | 200 | 10 | 3000 |
| B-50 | 50000 | 400 | 20 | 2500 |
| B-100 | 100000 | 1000 | 50 | 2000 |
| B-150 | 150000 | 1000 | 50 | 3000 |
| B-200 | 200000 | 2000 | 100 | 2000 |

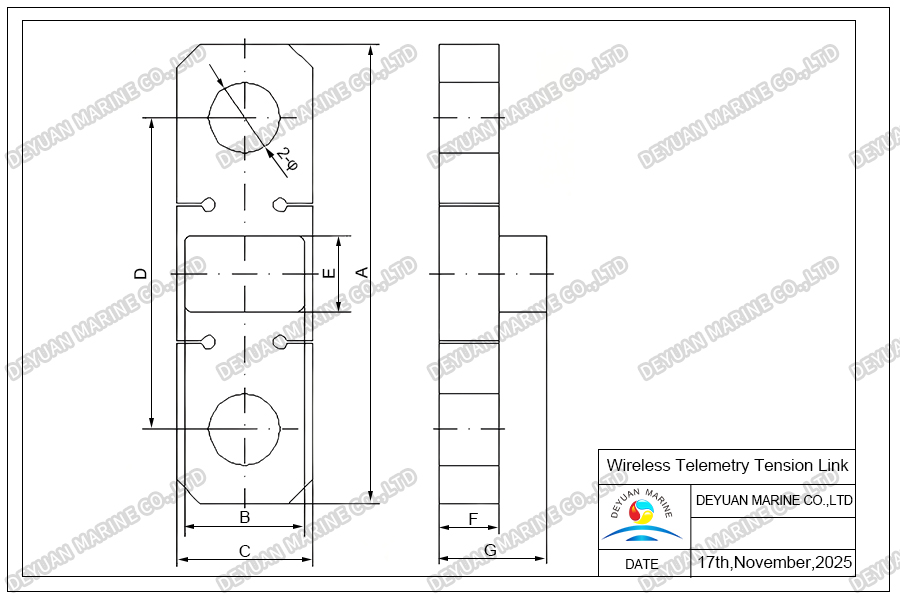

Appearance schematic diagram
Size Chart
| Model | Measuring Range (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | 2-Φ (mm) | Net Weight (kg) |
| B-5 | 5000 | 190 | 110 | 60 | 137 | 65 | 30 | 70 | 27 | 2.6 |
| B-10 | 10000 | 245 | 110 | 70 | 168 | 65 | 36 | 76 | 41 | 4.3 |
| B-20 | 20000 | 312 | 110 | 94 | 206 | 65 | 45 | 85 | 54 | 8.5 |
| B-30 | 30000 | 370 | 110 | 114 | 246 | 65 | 50 | 90 | 60 | 14 |
| B-50 | 50000 | 460 | 110 | 140 | 309 | 65 | 60 | 100 | 73 | 25 |
| B-100 | 100000 | 580 | 110 | 180 | 389 | 65 | 80 | 120 | 99 | 53 |
| B-150 | 150000 | 690 | 110 | 220 | 456 | 65 | 90 | 130 | 112 | 89 |
| B-200 | 200000 | 800 | 110 | 250 | 534 | 65 | 100 | 140 | 134 | 128 |
