32.5㎡ Plate Heat Exchanger

Marine plate heat exchanger is a compact and efficient cooling device specifically designed for use in shipboard systems, such as engine cooling, lubrication oil cooling, fuel oil conditioning, and central cooling circuits. It consists of a series of corrugated metal plates stacked and sealed within a frame, creating separate flow channels for two fluids—typically seawater and freshwater or oil. The corrugations promote turbulence, significantly enhancing heat transfer rates while maintaining a small footprint, which is critical in the confined machinery spaces of vessels. Manufactured with corrosion-resistant materials like titanium or stainless steel to withstand harsh marine environments and saline conditions, marine plate heat exchangers offer high thermal efficiency, easy maintenance (plates can be added or cleaned individually), and reduced weight compared to traditional shell-and-tube designs, making them ideal for modern marine and offshore applications.

Plate Heat Exchanger Process Calculation Sheet:

Model :ES100-1.0-32.5-N     Area:32.5m2            Quantity:2 units
Single Unit Equipment Parameters
	Unit	Circuit A	Circuit B
Fluid Name		Fresh Water	Sea Water
Flow Rate	m3/h	35	100
- Liquid	m3/h	35	100
- Vapor / Gas	m3/h	0.0	0.0
- Non-condensable Gas	m3/h	0.0	0.0
Inlet Temp / Outlet Temp	℃	69.0/38.0	28.0/38.8
Interplate Velocity	m/s	0.17	0.49
Calculated Pressure Drop	KPa	7.3	47.1
Heat Duty	KW	1230
Overall Heat Transfer Coefficient	W /(m2.K)	2809
Mean Temperature Difference	℃	18.28
Structural Parameters
Design Pressure / Test Pressure	MPa	1.0/1.44	1.0/1.44
Design Temperature	℃	80	80
Number of Passes		1	1
Single Plate Area	m2	0.25
Number of Plates		130
Plate Thickness	mm	0.6
Plate Material		Ti
Gasket Material		NBR
Length × Width × Height	mm	880×480×1050
Frame Type		Double support frame type
Frame Material		Q235-B
Design Standard		NB/T47004.1-2017
Connection Standard		EN1092-1 PN10 DN100（Without flanges）
Connection Size		DN100	DN100
Connection Position		F1 → F2	F3 → F4
Remarks：See attached drawing

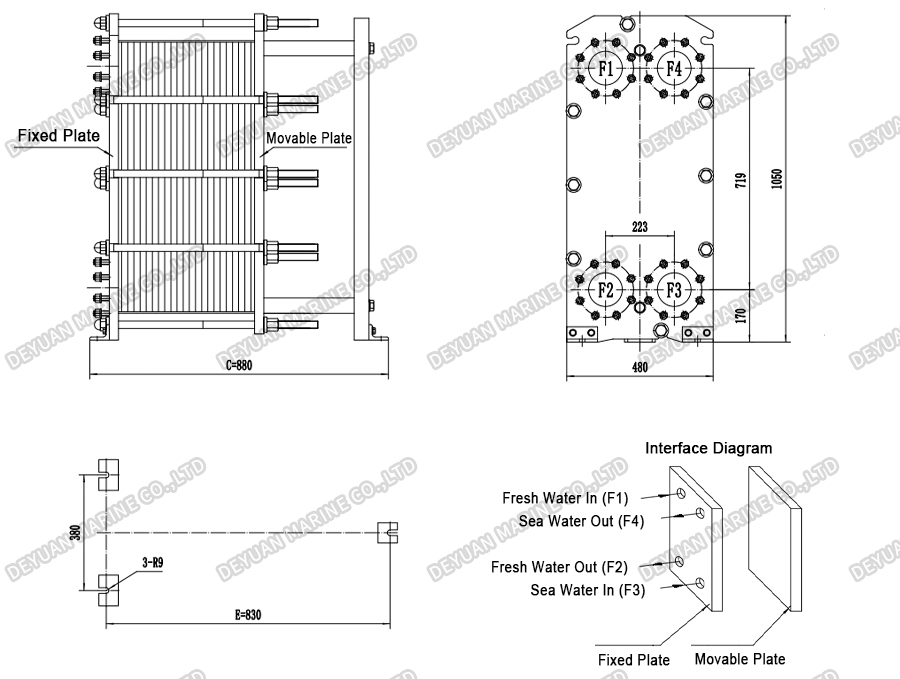

Reference Drawing:

Product Parameters:

Frame Selection	□	□	□	■
	Grade A	Grade B	Grade C	Customization
Anchor Bolt Dimensions E(mm)	763	1063	1213	830
Equipment Length C(mm)	811	1111	1261	880
Flange Standard (Flanges Not Included)	■ EN1092-1 PN10 DN100
	□ HG/T20592-2009(A)SO RF PN16
	□ HG/T20615-2009 Class150 SO RF
Connection Orientation	F1	F2	F3	F4
Nominal Size	DN100	DN100	DN100	DN100
Medium	Fresh Water In	Fresh Water Out	Sea Water In	Sea Water Out
Plate	Ti	Design / Test Pressure		1.0/1.44MPa
Rubber Gasket	NBR	Design Temperature		80℃
Notes:Reserve 1.0 meter of maintenance space on both sides of the equipment;The equipment shall not be used as an electrode (one pole) during welding.

Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
