China Deyuan Marine Generator Set Up To 1800KW

Views:45     Author:Ms. Wenky     Publish Time: 2018-12-14      Origin:Site

China Deyuan Marine Generator Set Up To 1800KW

China Deyuan Marine Generator Set Up To 1800KW


Nowadays, the marine generator has a wide range of application in tug, yachts, ferry, patrol boat, dredging and offshore etc. normally, a generator set will consist of the engine, alternator and control system, we China Deyuan Marine can supply many types of generator set, the power range from 20KW up to 1800KW, the brand of engine we mainly supply Cummins, Yuchai, DEUTZ, MWM, Volve, Perkins etc, the brand of alternator we offer famous brand, such as Marathon, Stamford, if customer has special brand required, we can also satisfy.


Here is one of our marine generator set with 50KW capacity, Model CCFJ50J-W Technical Data Sheet for reference:


1.Coupled with Cummins diesel engine and Marathon alternator

2.24V DC start motor

3.Brushless, Self-excited, IP23, insulation class H alternator


Marine Genset Main Technical Data

3-PH, 50Hz@1500RPM, 380V, 50KW, 0.8PF. according to standard: GB/T13032-1991 and ISO9001:2008 Quality Control System


Cummins Diesel Engine:

Model 6BT5.9-GM83, 6 cylinders in line, 4 stroke, Turbocharged and after-cooled, displacement 5.9 L, prime power and speed 83KW / 1500rpm, speed Governor by Electrical, cooling by heat ex-changer , starter motor DC24V,


Marathon Alternator:

Alternator brand Marathon, model MP-H-50-4, prime power 50KW, 50Hz / 1500rpm / 380 V, Brush-less, Self-excited, PF 0.8, H insulation class, IP56 protection class, 3 phase 3 wires.


Control System: Smartgen HGM6110 Digital Auto Start

Providing the standard functions as follows:

(Also can be made according to the customers’special requirements)

*Start/Stop controller

*Ampere meter

*Voltmeter and selector switch

*Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter

*Emergency stop push-button

*Alarm System: Over speed、High Engine Temperature, Low Oil Pressure、Charge Fail

*Protection System:Over speed、High Engine Temperature、Low Oil Pressure、Emergency Stop. And the other protection function presetting.

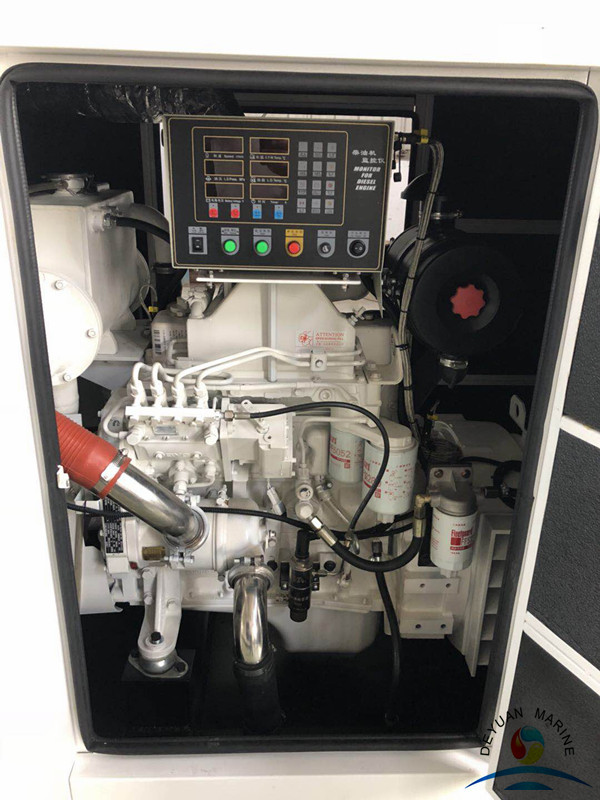

Genset 1 (1)_副本

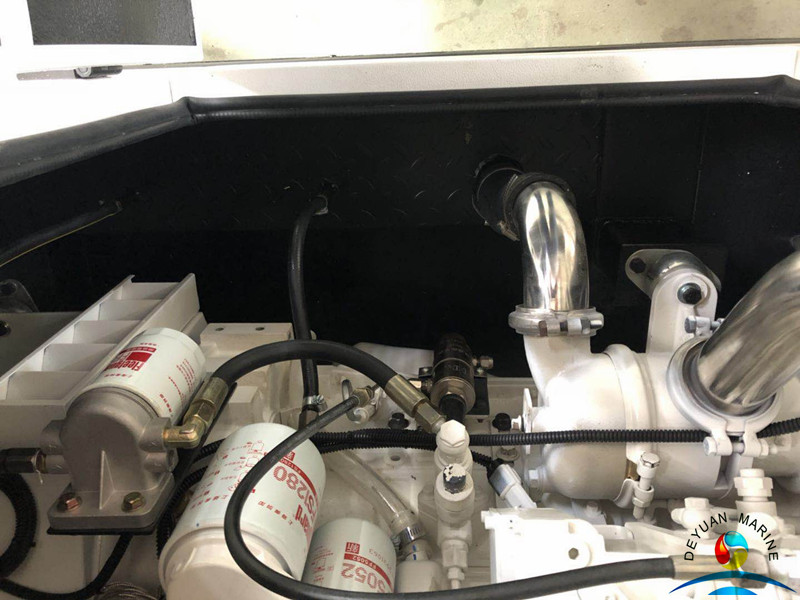

Genset 1 (2)_副本


Genset 1 (3)_副本


Genset 1 (4)_副本

Open Type of genset with sound proof box

Overall size (L*W*H)

2550*1200*1685

Weight: 1600kg


Class certificate such as CCS, BV, NK or any other certificate are available for all our marine generator set, if you are interested in any marine base genset, just feel free to contact with our team!
