High Quality 226B Series Deutz Marine Generator Set With CCS

  • DEYUAN MARINE

Availability:

Product Description

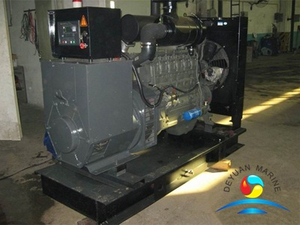

226B Series Deutz Marine Generator Set :

226B series Deutz marine generator set have a power range from 24KW-120KW.

CCS,ZY,BV certificate are available.And the emission can meet the Euro II standard.



Deutz generator features:

1.Compact structure,small volume,light weight,strong  power,low fuel consumption

2.Little vibration,high reliability,easy start,modular design.





Model

Backup

output

(kw)

Continuous

 output

(Kw)

Rated

voltage

(v)

Rated

Current

A

Fuel consumption

at rated load

Engine Model

CCFJ24J-WJ

26.4

24

400

43.5

4.8

D226B-3CD

CCFJ30J-WJ

33

30

400

54

5.9

TD226B-3CD

CCFJ40J-WJ

44

40

400

72

7.9

TD226B-4CD

CCFJ50J-WJ

55

50

400

90

9.9

TD226B-6CD

CCFJ64J-WJ

70.4

64

400

115

12.8

TD226B-6CD

CCFJ75J-WJ

82.5

75

400

135

16

TBD226B-6CD

CCFJ90J-WJ

99

90

400

163

18

TBD226B-6CD

CCFJ100J-WJ

110

100

400

191

20

TBD226B-6CD

CCFJ120J-WJ

132

120

400

217

24

TBD226B-6CD

More Deutz Marine Genset can be offered,pls contact us for more details.
