Product Description

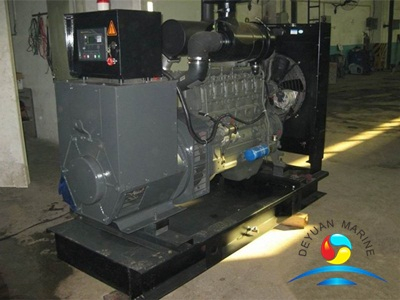

Marine DEUTZ Generator Set :
*Power range: 40KW--120KW(50KVA~150KVA)
*Frequency &Speed: 50HZ @1500RPM; 60HZ@1800RPM
*Powered by DEUTZ engine,coupled with Marathon Alternator,SUNVIM,Stamford,Siemens alternator are optional
*EIAPP(Nox) certificate
*Class Approval Certificate: CCS,BV,RS,RRR,GL,VR,RINA,ABS
Technical Parameter:
Genset Specification | Engine Specification | Alternator | Dimensions/ Weight (mm;kg) | |||||
Rated output | Fre/Volt Hz/V | Model | Power/ speed | Cyl. | Fuel Consumption (L/H) | Mathrathon | ||
KW | KVA | |||||||
40 | 50 | 50/400
| WP4CD60-15 | 60/1500 | 4 | 7.9 | MP-H-40-4 | 1663*620*1242 (970kg) |
50 | 62.5 | WP4CD60-15 | 60/1500 | 4 | 9.9 | MP-H-50-4 | 1663*620*1242 (1000kg) | |
64 | 80 | WP4CD-75-15 | 75/1500 | 6 | 12.8 | MP-H-64-4 | 1958*798*1340 (1100kg) | |
75 | 93.80 | WP6CD-90-15 | 90/1500 | 6 | 16 | MP-H-75-4 | 1958*798*1340 (1150kg) | |
100 | 125 | WP6CD-120-15 | 120/1500 | 6 | 20 | MP-H-100-4 | 2068*798*1340 (1380kg) | |
120 | 150 | WP6CD-132-15 | 132/1500 | 6 | 22 | MP-H-120-4 | 2080*800*1340 (1400kg) | |
| ||||||||
50 | 62.5 | 60/440 | WP4CD60-15 | 60/1800 | 4 | 9.9 | MP-H-50-4 | 1663*620*1242 (1000kg) |
64 | 80 | WP6CD-90-15 | 75/1800 | 6 | 12.80 | MP-H-64-4 | 1958*798*1340 (1100kg) | |
75 | 93.80 | WP6CD-120-15 | 90/1800 | 6 | 16 | MP-H-75-4 | 1958*798*1340 (1150kg) | |
100 | 125 | WP6CD-132-15 | 120/1800 | 6 | 20 | MP-H-100-4 | 2068*798*1340 (1380kg) | |
120 | 150 | WP6CD-132-15 | 132/1800 | 6 | 22 | MP-H-120-4 | 2080*800*1340 (1400kg) | |
