Product Description

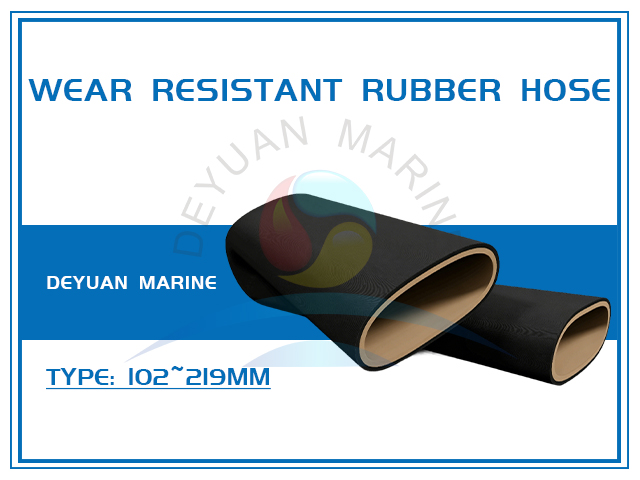

Wear Resistant Rubber Hose
Product Introduction:
Our Wear Resistant Rubber Hose is a durable and cost-effective solution designed for the reliable transfer of granular materials such as lime, sand, gravel, and other abrasive aggregates. Constructed from high-quality synthetic rubber compounds, this hose offers excellent resistance to sliding abrasion, impact, and wear — ensuring long service life in tough industrial environments.
The hose features a smooth, wear-resistant inner tube that allows for efficient material flow while minimizing friction and energy loss. Its flexible rubber construction provides ease of handling and installation, even in confined or complex layouts. A reinforced textile or steel wire spiral layer adds strength, collapse resistance (for suction applications), and pressure-bearing capability.
Commonly used in construction sites, mining operations, quarries, cement plants, and lime processing facilities, this hose effectively handles the daily challenges of abrasive particle transfer. Whether used for pneumatic conveying, gravity feeding, or suction/discharge systems, it consistently delivers reliable performance without premature failure.
Product Parameters:
| Inner | NR+BR |
| Cover | SBR+NR |
| Working Temperature | -20 ℃ ~80 ℃ |
| Safety Factor | 3:1 |
| Color | Blue/Brown |
| Application | Conveying granular objects such as lime and sand, widely used in industries such as construction and mining |
Specification Dimensions:
| Inside Diameter | Wall Thickness | Max Length | Inside Diameter | Wall Thickness | Max Length |
| mm | mm | m | mm | mm | m |
| 102 | 4~6 | 5 | 254 | 4~6 | 5 |
| 114 | 4~6 | 5 | 273 | 4~6 | 5 |
| 125 | 4~6 | 5 | 304 | 4~6 | 5 |
| 140 | 4~6 | 5 | 325 | 4~6 | 5 |
| 152 | 4~6 | 5 | 350 | 4~6 | 5 |
| 168 | 4~6 | 5 | 400 | 4~6 | 5 |
| 180 | 4~6 | 5 | 450 | 4~6 | 5 |
| 203 | 4~6 | 5 | 500 | 4~6 | 5 |
| 219 | 4~6 | 5 | 600 | 4~6 | 5 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||
Key Features:
*Excellent resistance to abrasion from granular materials
*Smooth inner tube for unrestricted flow
*Flexible and easy to handle
*Reinforced construction for suction and pressure applications
*Ideal for construction, mining, and aggregate industries
