Product Description

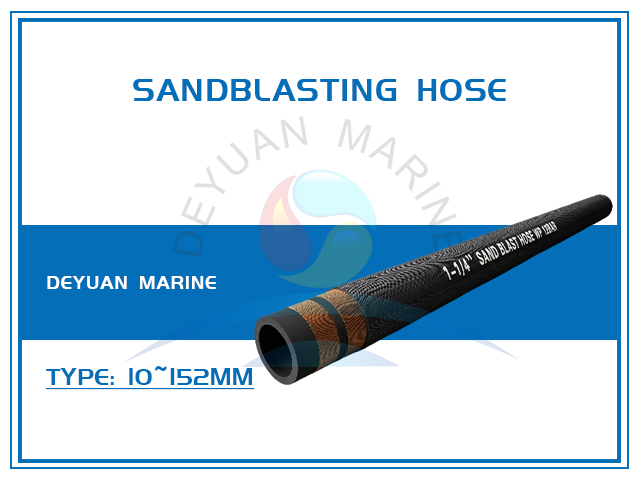

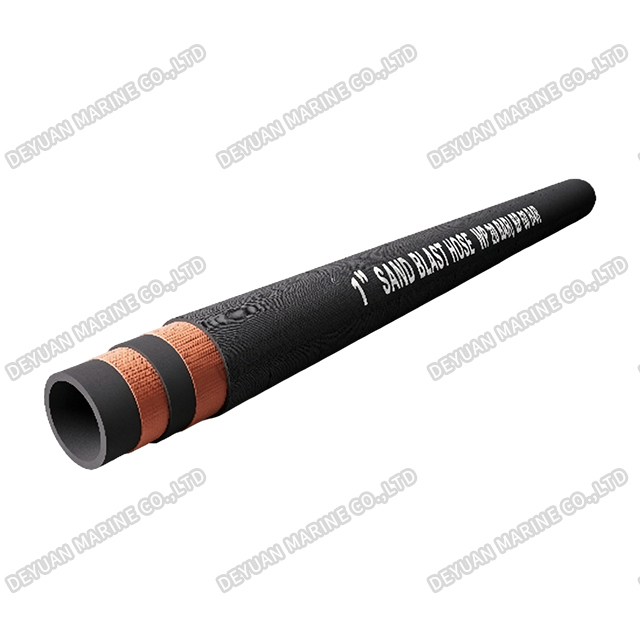

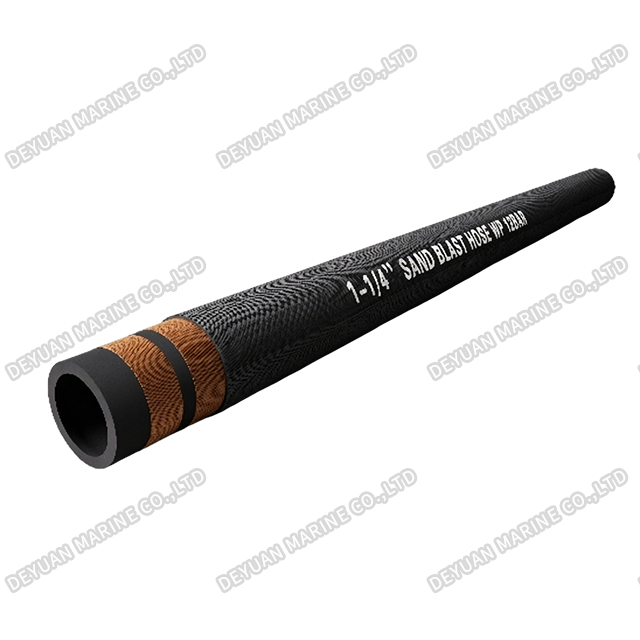

Sandblasting Hose for Abrasive Material Conveying
Product Introduction:
Our Sandblasting Hose is specifically designed for high-performance abrasive conveying in industrial surface preparation applications. Engineered to transport dry, granular materials such as quartz sand, steel grit, copper slag, and other small-particle abrasives, this hose serves as a critical component in sandblasting machinery and abrasive delivery systems.
The hose features a wear-resistant inner lining that effectively withstands continuous impact and friction from high-velocity abrasives. Its reinforced synthetic rubber construction ensures excellent flexibility, pressure resistance, and durability under harsh operating conditions. The outer cover is resistant to abrasion, weathering, and oil, making it suitable for tough workshop and outdoor environments.
Commonly used in shipyards, steel structure fabrication plants, pipeline maintenance, and tank coating projects, the sandblasting hose efficiently removes rust layers, old paint, and surface contaminants. By achieving a clean and profiled surface, it prepares the workpiece for new protective coatings, ensuring strong adhesion and long-term corrosion resistance.
Product Parameters:
| Inner | NR+BR |
| Cover | SBR+NR |
| Working Temperature | -20 ℃ ~80 ℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | Single layer/Double layer braiding with high-strength textile cord;High-strength spiral textile cord |
| Application | Conveying small granular objects such as quartz sand and steel grit. Used for abrasive conveying systems in sandblasting machinery,equipment,vessels to remove rust and old coatings from the surface of workpieces, achieving the effect ofcleaning and preparing new coatings on the surface. |
Specification Dimensions:
| Single layer/Double layer braiding with high-strength textile cord | |||
| Inside Diameter | Working Pressure | Max Length | |
| mm | inch | bar | m |
| 10 | 3/8" | 20 | 100 |
| 13 | 1/2" | 20 | 100 |
| 16 | 5/8" | 20 | 100 |
| 19 | 3/4" | 20 | 100 |
| 22 | 7/8" | 10 | 100 |
| 25 | 1" | 10 | 100 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||
| High-strength spiral textile cord | |||
| Inside Diameter | Working Pressure | Max Length | |
| mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 60 |
| 25 | 1" | 10~20 | 60 |
| 32 | 1-1/4" | 10~20 | 60 |
| 38 | 1-1/2" | 10~20 | 60 |
| 45 | 1-3/4" | 10~20 | 60 |
| 51 | 2" | 10~20 | 60 |
| 64 | 2-1/2" | 10~20 | 60 |
| 76 | 3" | 10~20 | 60 |
| 102 | 4" | 10~20 | 60 |
| 127 | 5" | 10~20 | 60 |
| 152 | 6" | 10~20 | 60 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||
Key Features:
*High resistance to abrasive wear and impact
*Smooth bore for minimal flow resistance
*Static-conductive options available for safety
*Flexible for easy handling even in cold conditions
*Compatible with standard coupling systems
