Product Description

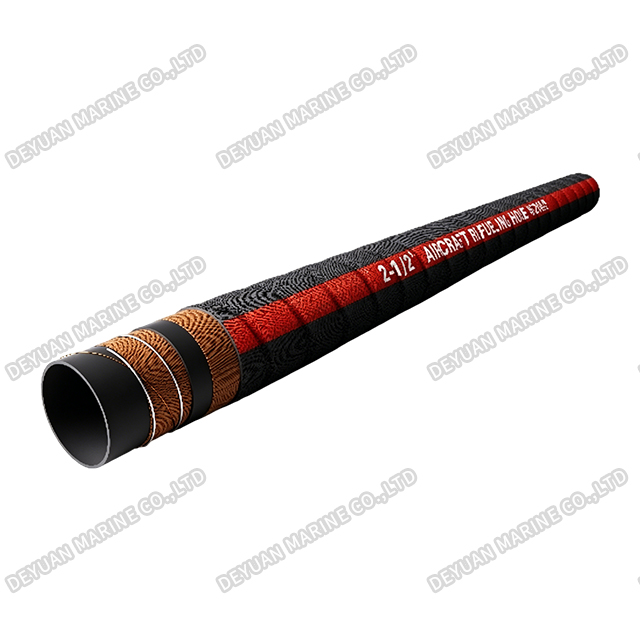

Aircraft Refuelling Hose
Product Introduction:
Our Aircraft Refuelling Hose is a premium-grade, static-dissipating hose specifically engineered for the safe and efficient transfer of aviation fuels (Jet A, Jet A-1, JP-8, AVGAS, and other turbine and piston engine fuels) during aircraft ground refuelling and defuelling operations.
Designed to meet the most stringent international standards, this hose is widely used in both civil aviation (commercial airlines, cargo carriers, general aviation, private jets, helicopters) and military applications (air force, naval aviation, army aviation, military airbases, and field refuelling operations).
Engineered for maximum safety, durability, and operational flexibility, it delivers reliable fuel transfer performance in demanding airport ramp environments, military airfields, and forward operating locations.
Product Parameters:
| Inner | NBR |
| Cover | NBR+CR |
| Working Temperature | -30 ℃ ~120 ℃ |
| Safety Factor | 4:1 |
| Color | Black |
| Reinforcement layer | High-strength spiral textile cord with helix steel wire and copper wire |
| Application | Used for aircraft refuelling operations in different field such as civil aviation and military. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | |
| mm | inch | bar | m |
| 38 | 1-1/2" | 10~20 | 60 |
| 51 | 2" | 10~20 | 60 |
| 64 | 2-1/2" | 10~20 | 60 |
| 76 | 3" | 10~20 | 60 |
| 102 | 4" | 10~20 | 60 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||
Key Features:
1.Approved for Civil & Military Use
Fully compliant with EN ISO 1825 (civil aviation) and DEF STAN 91-69 (military aviation), ensuring suitability for both commercial airport operations and military refuelling missions.
2.Static Dissipating / Conductive
Built with a conductive carbon layer, the hose safely dissipates static electricity generated by high-flow fuel transfer – a critical safety requirement for all aircraft refuelling operations to prevent electrostatic spark ignition.
3.Excellent Aviation Fuel Compatibility
The synthetic rubber inner tube resists swelling, hardening, and degradation caused by Jet A, Jet A-1, JP-5, JP-8, AVGAS 100LL, and other aviation turbine and piston fuels.
4.Extremely Low Fuel Permeation
Engineered with a low-permeation barrier to minimize fuel vapor loss, reducing environmental emissions, fuel waste, and fire hazards – meeting strict airport and military environmental standards.
5.High Flexibility for Easy Handling
Remains flexible even in cold weather conditions, allowing ground crews to easily drag, coil, and manoeuvre the hose around aircraft, ground support equipment, and refuelling vehicles.
6.Abrasion & Cut Resistant Cover
The tough outer rubber cover resists abrasion from tarmac, concrete, runway debris, vehicle tyres, and metal edges – ensuring long service life in demanding ramp and military airfield environments.
7.Kink & Crush Resistance
Reinforced construction prevents hose collapse under vacuum (defuelling) or mechanical crushing from vehicle tyres or ground support equipment.
8.Clear Identification
Available with coloured stripes or branding for easy identification of fuel type, hose grade, and service life tracking – standard for civil and military protocol.
9.Wide Temperature Range
Operates reliably from -40°C to +100°C (-40°F to +212°F), suitable for global operations from arctic military bases to desert civilian airports.
