Product Description

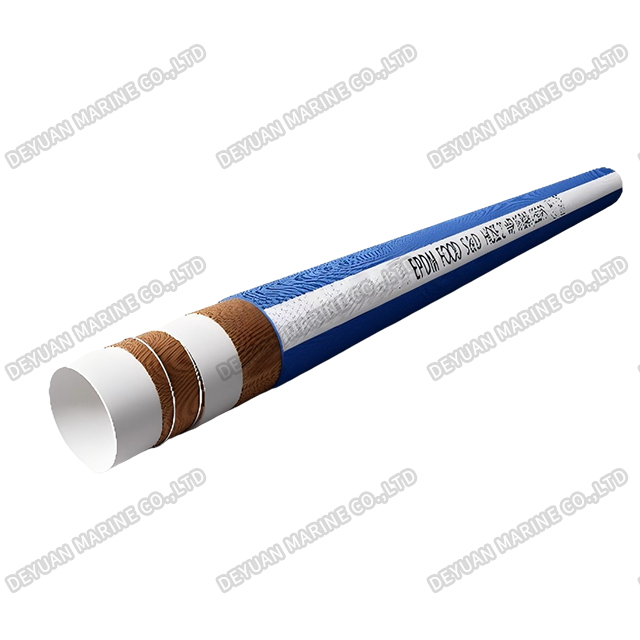

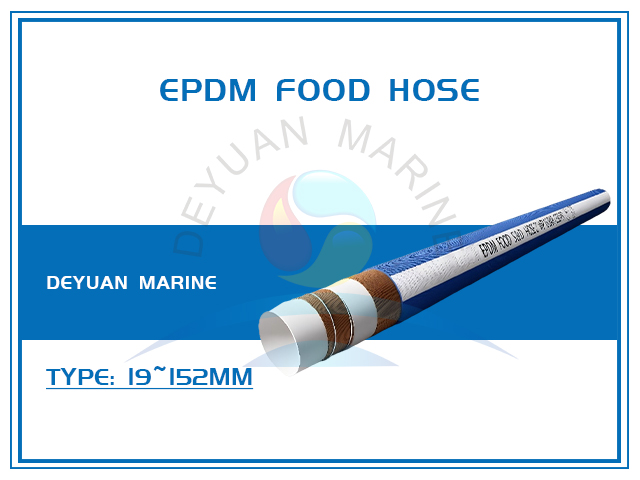

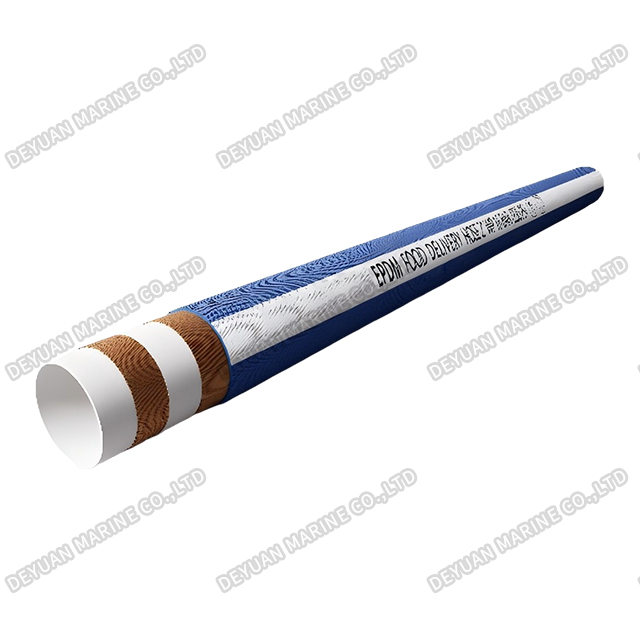

EPDM Food Hose For Beverage And Drinking Water Transfer
Product Introduction:
EPDM Food Hose for Beverage and Drinking Water Transfer is a premium-grade, FDA-compliant rubber hose specifically engineered for the safe, hygienic, and efficient transfer of a wide variety of beverages and potable (drinking) water. Featuring a high-quality EPDM (Ethylene Propylene Diene Monomer) inner tube, this hose delivers excellent heat resistance, outstanding water resistance, superior weatherability, and a taste-free, odor-free transfer experience – making it the ideal choice for beverage processors, bottling plants, breweries, dairies, and municipal water systems.
Product Parameters:
| Inner | EPDM |
| Cover | EPDM |
| Working Temperature | -40 ℃ ~150 ℃ |
| Safety Factor | 3:1 |
| Color | Blue, Green, Black, Etc |
| Reinforcement layer | High-strength spiral textile cord;High-strength spiral textile cord with helix steel wire |
| Application | Used for transporting non greasy foods such as drinking water and beverages.Mainly used in the food processing industry. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 40 | 19 | 3/4" | 10~20 | 40 |
| 25 | 1" | 10~20 | 40 | 25 | 1" | 10~20 | 40 |
| 32 | 1-1/4" | 10~20 | 40 | 32 | 1-1/4" | 10~20 | 40 |
| 38 | 1-1/2" | 10~20 | 40 | 38 | 1-1/2" | 10~20 | 40 |
| 51 | 2" | 10~20 | 40 | 51 | 2" | 10~20 | 40 |
| 64 | 2-1/2" | 10~20 | 40 | 64 | 2-1/2" | 10~20 | 40 |
| 76 | 3" | 10~20 | 40 | 76 | 3" | 10~20 | 40 |
| 102 | 4" | 10~20 | 40 | 102 | 4" | 10~20 | 40 |
| 152 | 6" | 10~20 | 40 | ||||
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.FDA & Food-Grade Compliance – Manufactured from non-toxic, tasteless, and odorless EPDM rubber. Fully compliant with FDA 21 CFR 177.2600, EU Regulation 10/2011, and NSF 51 standards for safe contact with food, beverages, and drinking water.
2.Preserves Natural Taste & Odor – The inert, non-porous inner surface will not impart any taste, smell, or color to beverages or water, ensuring the original flavor profile remains unaltered.
3.Excellent Heat Resistance – Designed for continuous service from -40°C to +120°C (-40°F to +248°F), with the ability to handle intermittent steam cleaning and hot water sanitization up to +140°C (+284°F) for short durations.
4.Superior Water & Detergent Resistance – EPDM rubber offers outstanding resistance to hot and cold water, aqueous cleaning solutions, sanitizers, and CIP (Clean-In-Place) chemicals commonly used in beverage and water processing facilities.
5.Smooth, Bacteria-Resistant Inner Surface – The hygienic, non-porous inner tube prevents microbial growth, product absorption, and residue buildup, allowing easy cleaning and minimizing contamination risks.
6.Excellent Weather & Ozone Resistance – Highly resistant to UV radiation, ozone cracking, and outdoor aging, making it suitable for both indoor processing plants and outdoor tank truck loading/unloading applications.
7.Reinforced & Durable Construction – Reinforced with high-strength synthetic textile braids for excellent pressure resistance, kink resistance, and long service life. Some versions include a helix wire for vacuum resistance and static dissipation.
8.Flexible & Lightweight – Remains flexible even at low temperatures, reducing operator fatigue during handling, installation, and coiling.
