Product Description

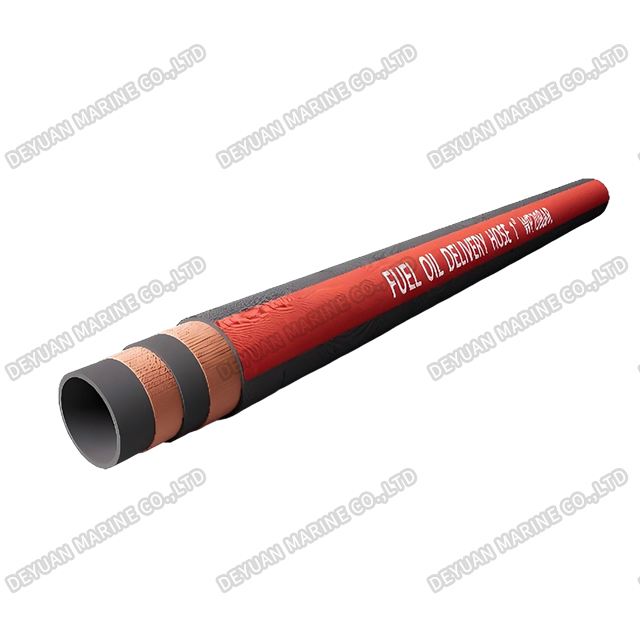

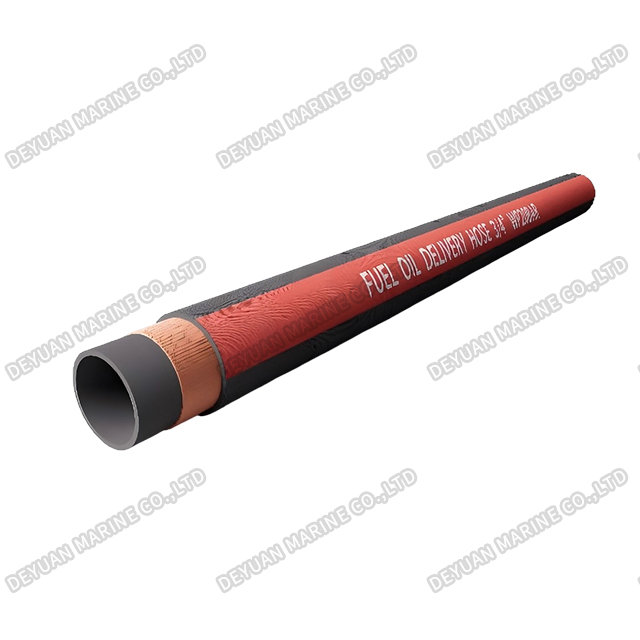

Diesel/Gasoline Hose
Product Introduction:
Our Diesel/Gasoline Hose is a high-performance, multi-purpose fuel transfer hose specifically engineered for the safe and efficient conveying of diesel, gasoline, biodiesel blends, and other petroleum-based fuels. It is widely used in three major application areas:
Construction Equipment – Excavators, bulldozers, loaders, dump trucks, cranes, road rollers
Agricultural Machinery – Tractors, harvesters, sprayers, combines, balers, irrigation pumps
Marine Vessels – Fishing boats, cargo ships, ferries, yachts, workboats, bunkering operations
Designed to withstand the toughest working conditions – including dirt, dust, vibration, weather exposure, saltwater, and strict fire safety requirements – this hose delivers reliable, leak-free, static-dissipating fuel transfer performance across all types of mobile and stationary equipment.
Product Parameters:
| Inner | NBR |
| Cover | NBR |
| Working Temperature | -30 ℃ ~120 ℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | Single layer braiding with high-strength textile cord;Double vlayer braiding with high-strength textile cord |
| Application | Used for transporting diesel gasoline,widely used in various fuel transmission systems such as automobiles,engineering machinery,agriculturalmachinery,and ships. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 6 | 1/4" | 20 | 100 | 6 | 1/4" | 20 | 100 |
| 8 | 5/16" | 20 | 100 | 8 | 5/16" | 20 | 100 |
| 10 | 3/8" | 20 | 100 | 10 | 3/8" | 20 | 100 |
| 13 | 1/2" | 20 | 100 | 13 | 1/2" | 20 | 100 |
| 16 | 5/8" | 20 | 100 | 16 | 5/8" | 20 | 100 |
| 19 | 3/4" | 20 | 100 | 19 | 3/4" | 20 | 100 |
| 22 | 7/8" | 10 | 100 | 22 | 7/8" | 20 | 100 |
| 25 | 1" | 10 | 100 | 25 | 1" | 20 | 100 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Broad Fuel Compatibility
The synthetic rubber inner tube resists swelling, hardening, and degradation caused by diesel, gasoline, biofuel blends (up to E20 or B100), kerosene, and marine gas oil (MGO). One hose – multiple fuel types.
2.Static Dissipating / Anti-Static
Built with a conductive carbon layer or embedded grounding wire, the hose safely dissipates static electricity generated by fuel flow – a critical safety feature for construction sites, agricultural fields, and marine decks where fuel vapors pose an ignition risk.
3.Abrasion & Weather Resistant Cover
The tough outer rubber cover resists abrasion from rocks, soil, concrete, metal edges, and deck surfaces. It also withstands UV radiation, ozone, saltwater, mud, and extreme temperature swings – ideal for outdoor heavy-duty use.
4.Excellent Flexibility for Tight Spaces
Remains flexible even in cold conditions, allowing easy routing around engine compartments, chassis frames, bulkheads, and hydraulic components without kinking or collapsing.
5.Low Fuel Permeation
Engineered with a low-permeation barrier to minimize fuel vapor loss through the hose wall, reducing fuel waste, environmental emissions, and fire hazards – compliant with EPA, CARB, and marine environmental standards.
6.Wide Temperature Range
Operates reliably from -40°C to +100°C (-40°F to +212°F), accommodating freezing winter field operations, hot engine rooms, and tropical marine environments.
7.Oil & Chemical Resistant
The cover resists accidental contact with hydraulic oils, lubricants, coolants, and cleaning solvents commonly found in machinery maintenance and marine engine rooms.
