Product Description

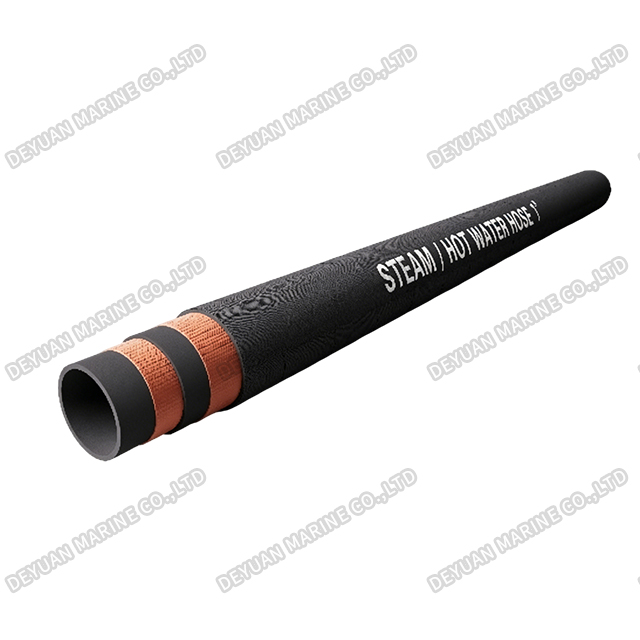

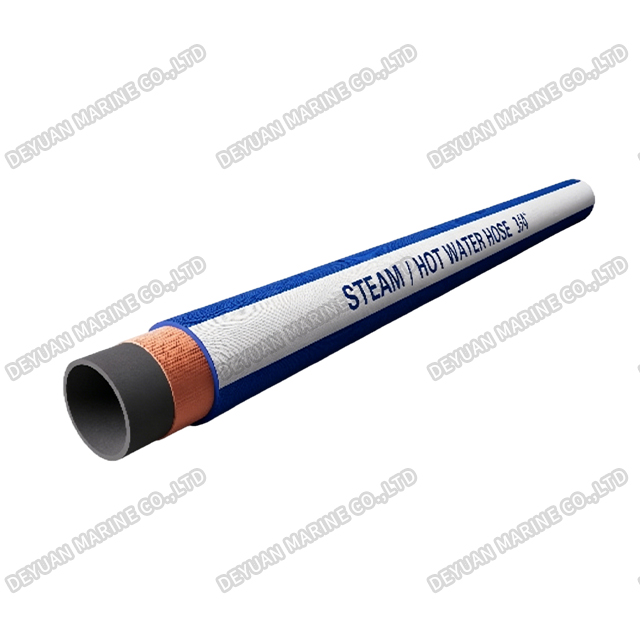

Steam/Hot Water Hose
Product Introduction:
Our Steam/Hot Water Hose is specifically engineered for the safe and reliable transfer of high-temperature steam and hot water in demanding industrial applications. Constructed from high-quality EPDM or chloroprene rubber compounds, this hose offers exceptional resistance to heat, pressure, and steam degradation — ensuring long service life and operational safety.
The hose features a smooth, heat-resistant inner tube that withstands extreme temperatures ranging from -40°C up to +210°C (or higher, depending on model). A high-tensile steel wire or textile reinforcement layer provides excellent pressure resistance and burst protection, while the specially formulated outer cover resists heat, abrasion, weather, and ozone cracking. Pinprick outer cover construction allows trapped steam to escape, preventing blistering and extending hose life.
Commonly used across petrochemical plants, automotive manufacturing facilities, metallurgical industries, power generation stations, and other heavy industrial settings, this hose is ideal for:
*Steam cleaning and degreasing equipment
*Tank and pipeline heating systems
*Vulcanization and curing processes
*Heat transfer in industrial machinery
*Hot water supply lines
Product Parameters:
| Inner | EPDM |
| Cover | EPDM |
| Working Temperature | -40 ℃ ~150 ℃ |
| Safety Factor | 3:1 |
| Color | Black,Blue,Green,Etc |
| Reinforcement layer | Single layer braiding with high-strength textile cord;Double layer braiding with high-strength textile cord |
| Application | Used for conveying high-temperature steam or hot water, widely used in petrochemic alautomotive manufacturing, metallurgy,power and other fields |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 6 | 1/4" | 10~20 | 100 | 6 | 1/4" | 10~20 | 100 |
| 8 | 5/16" | 10~20 | 100 | 8 | 5/16" | 10~20 | 100 |
| 10 | 3/8" | 10~20 | 100 | 10 | 3/8" | 10~20 | 100 |
| 13 | 1/2" | 10~20 | 100 | 13 | 1/2" | 10~20 | 100 |
| 16 | 5/8" | 10~20 | 100 | 16 | 5/8" | 10~20 | 100 |
| 19 | 3/4" | 10~20 | 100 | 19 | 3/4" | 10~20 | 100 |
| 25 | 1" | 10~20 | 100 | 25 | 1" | 10~20 | 100 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
*Withstands high-temperature steam and hot water
*Temperature range: -40°C to +210°C
*High-pressure resistant with steel wire reinforcement
*Pinprick cover prevents steam blistering
*Suitable for petrochemical, automotive, metallurgical, and power industries
