Product Description

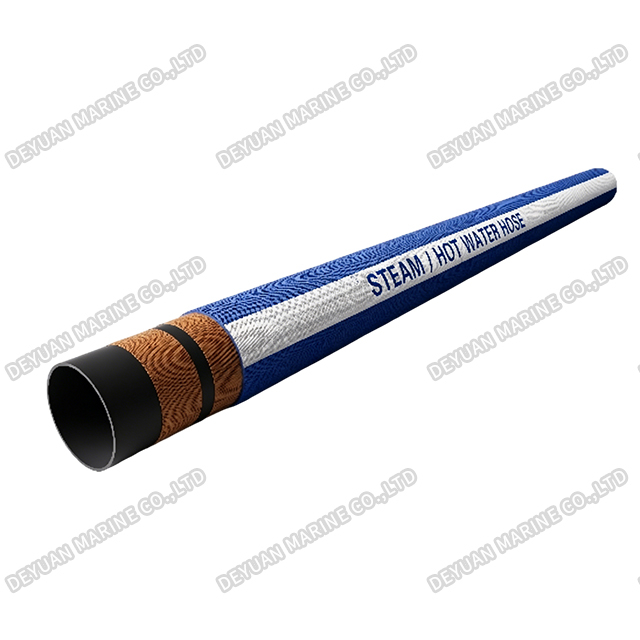

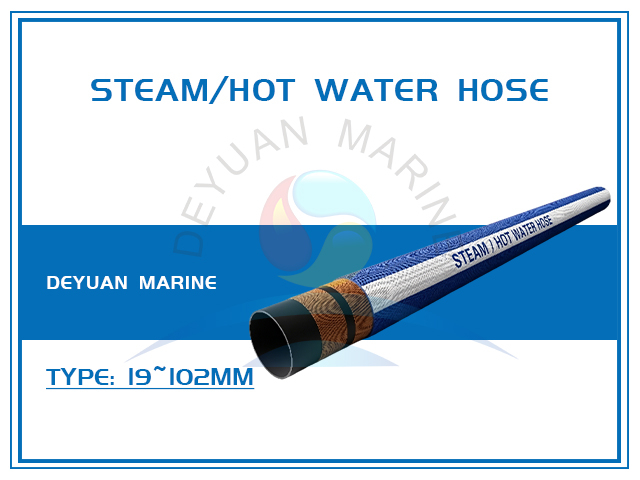

EPDM Steam/Hot Water Hose
Product Introduction:
Our EPDM Steam/Hot Water Hose is specifically engineered for the safe and reliable transfer of high-temperature steam and hot water in demanding industrial environments. Manufactured from premium EPDM (Ethylene Propylene Diene Monomer) rubber compounds, this hose delivers exceptional resistance to heat, steam degradation, ozone, weathering, and aging — ensuring long service life and operational safety.
The hose features a smooth, heat-resistant EPDM inner tube that withstands extreme temperatures ranging from -40°C to +150°C (depending on grade). A high-tensile steel wire or textile reinforcement layer provides excellent pressure resistance and burst protection. The EPDM outer cover offers superior resistance to heat, abrasion, ozone, and chemicals, while the pinprick cover construction allows trapped steam to escape, effectively preventing blistering and extending hose life.
Commonly used across petrochemical plants, automotive manufacturing facilities, metallurgical industries, power generation stations, and other heavy industrial settings, this hose is ideal for:
*Steam cleaning and degreasing equipment
*Tank and pipeline heating systems
*Vulcanization and curing processes
*Heat transfer in industrial machinery
*Hot water supply lines
*Industrial wash-down systems
Product Parameters:
| Inner | EPDM |
| Cover | EPDM |
| Working Temperature | -40 ℃ ~150 ℃ |
| Safety Factor | 3:1 |
| Color | Black,Blue,Green,Etc |
| Reinforcement layer | High-strength spiral textile cordwith helix steel wire;High-strength spiral textile cord |
| Application | Used for conveying high-temperature steam or hot water, widely used in petrochemic alautomotive manufacturing, metallurgy,power and other fields |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 60 | 19 | 3/4" | 10~20 | 60 |
| 25 | 1" | 10~20 | 60 | 25 | 1" | 10~20 | 60 |
| 32 | 1-1/4" | 10~20 | 60 | 32 | 1-1/4" | 10~20 | 60 |
| 38 | 1-1/2" | 10~20 | 60 | 38 | 1-1/2" | 10~20 | 60 |
| 45 | 1-3/4" | 10~20 | 60 | 45 | 1-3/4" | 10~20 | 60 |
| 51 | 2" | 10~20 | 60 | 51 | 2" | 10~20 | 60 |
| 64 | 2-1/2" | 10~20 | 60 | 64 | 2-1/2" | 10~20 | 60 |
| 76 | 3" | 10~20 | 60 | 76 | 3" | 10~20 | 60 |
| 102 | 4" | 10~20 | 60 | 102 | 4" | 10~20 | 60 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
*Premium EPDM construction for superior heat and steam resistance
*Temperature range: -40°C to +150°C
*High-pressure resistant with steel wire reinforcement
*Pinprick cover prevents steam blistering
*Excellent resistance to ozone, weather, and aging
*Ideal for petrochemical, automotive, metallurgical, and power industries
