Product Description

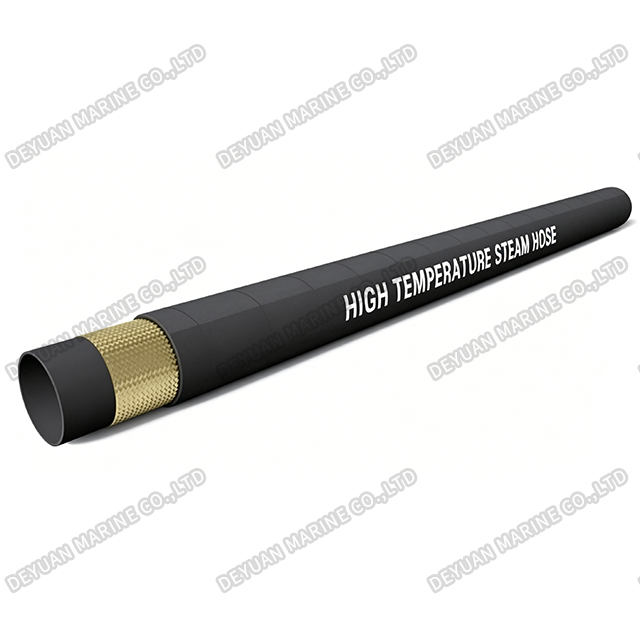

High Temperature Steam Hose
Product Introduction:
The High Temperature Steam Hose is a specialized industrial hose designed for the safe and efficient transfer of saturated and superheated steam in demanding environments. Widely used across industries such as chemical processing, petrochemical, metallurgy, and energy generation, this hose plays a critical role in steam-based cleaning, heating, tracing, and power systems.
Manufactured from high-grade EPDM rubber or PTFE materials, the high temperature steam hose features exceptional thermal stability, excellent aging resistance, and reliable performance under extreme conditions. Its inner tube is specifically formulated to resist the deteriorating effects of hot steam, while the multi-layer steel wire or textile reinforcement provides outstanding pressure resistance and structural integrity.
The outer cover is typically designed to be resistant to abrasion, ozone, weather, and oil-based contaminants, ensuring long service life even in harsh industrial settings. The hose maintains flexibility across a wide temperature range, making it easy to handle and install in tight or complex piping layouts.
Product Parameters:
| Inner | EPDM |
| Cover | EPDM |
| Working Temperature | -30 ℃ ~210 ℃ |
| Safety Factor | 3:1 |
| Color | Black |

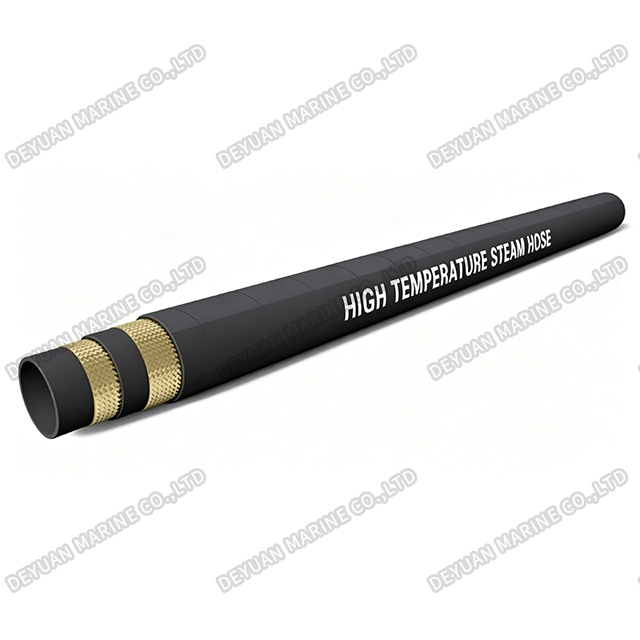

| Reinforcement layer | Single layer /double high-tensile steel wire braid |
| Executive Standard | HGT3036-2009 |
| Characteristic | High temperature steel wire steam hoses have excellent heat resistance and compression resistance, which can maintain stable and safe operation in extreme environments. In addition, this product also has anti-static function, which can effectively reduce the danger of static electricity generation and ensure the safety of the production process. |
| Application | Widely used in industries such as chemical,petroleum,metallurgy,and energy. |
Specification Dimensions:
| Nominal Diameter | Inside Diameter | Outer Diameter | Working Pressure | Burst Pressure | ||
| mm | inch | Min | Max | mm | MPa | MPa |
| 19 | 3/4" | 18.6 | 19.8 | 30.2 | 16 | 48 |
| 25 | 1" | 25.0 | 26.4 | 38.9 | 16 | 48 |
| 32 | 1-1/4" | 31.4 | 33 | 49.6 | 16 | 48 |
| 38 | 1-1/2" | 37.7 | 39.3 | 56 | 10 | 30 |
| 51 | 2" | 50.4 | 52 | 68.6 | 10 | 30 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | ||||||
Key Features:
*Withstands steam temperatures up to 210°C or higher
*Suitable for saturated and superheated steam applications
*Excellent resistance to heat, oxidation, and aging
*Reinforced with high-tensile steel wire or braided fabric
*Smooth inner tube minimizes flow resistance and prevents scaling
*Abrasion and weather-resistant outer cover
