Product Description

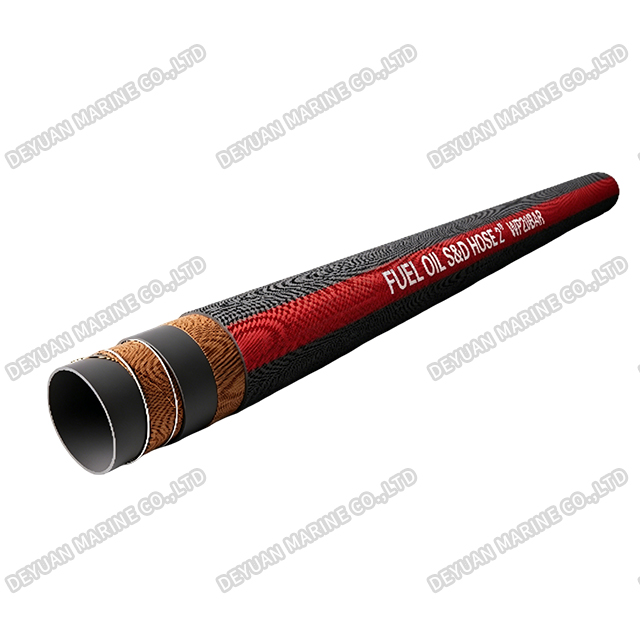

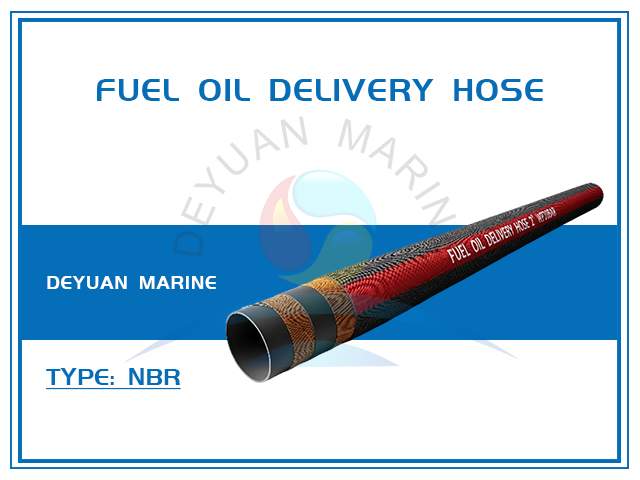

Fuel Oil Delivery Hose
Product Introduction:
Our Fuel Oil Delivery Hose is a high-performance, multi-purpose hose specifically designed for the reliable transfer of diesel, gasoline, and other petroleum-based fuels. It is widely used in fuel transmission systems across four major industries:
Automotive – Trucks, buses, tankers, refueling vehicles
Construction Equipment – Excavators, loaders, bulldozers, dump trucks, cranes
Agricultural Machinery – Tractors, harvesters, combines, sprayers, irrigation pumps
Marine Vessels – Fishing boats, cargo ships, ferries, yachts, workboats, bunkering operations
Engineered to withstand harsh working conditions – including vibration, abrasion, weather exposure, and saltwater – this hose delivers safe, leak-free, and durable fuel delivery performance for both mobile and stationary equipment.
Product Parameters:
| Inner | NBR |
| Cover | NBR |
| Working Temperature | -30 ℃ ~120 ℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | High-strength spiral textile cord with helix steel wire and copper wire;High-strength spiral textile cord and copper wire |
| Application | Used for transporting diesel gasoline,widely used in various fuel transmission systems such as automobiles,engineering machinery,agriculturalmachinery,and ships. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 60 | 19 | 3/4" | 10~20 | 60 |
| 25 | 1" | 10~20 | 60 | 25 | 1" | 10~20 | 60 |
| 32 | 1-1/4" | 10~20 | 60 | 32 | 1-1/4" | 10~20 | 60 |
| 38 | 1-1/2" | 10~20 | 60 | 38 | 1-1/2" | 10~20 | 60 |
| 45 | 1-3/4" | 10~20 | 60 | 45 | 1-3/4" | 10~20 | 60 |
| 51 | 2" | 10~20 | 60 | 51 | 2" | 10~20 | 60 |
| 64 | 2-1/2" | 10~20 | 60 | 64 | 2-1/2" | 10~20 | 60 |
| 76 | 3" | 10~20 | 60 | 76 | 3" | 10~20 | 60 |
| 102 | 4" | 10~20 | 60 | 102 | 4" | 10~20 | 60 |
| 127 | 5" | 10~20 | 60 | 127 | 5" | 10~20 | 30 |
| 152 | 6" | 10~20 | 60 | 152 | 6" | 10~20 | 30 |
| 203 | 8" | 10~20 | 30 | ||||
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Excellent Fuel Compatibility
The synthetic rubber inner tube resists swelling, hardening, and degradation caused by diesel, gasoline, biodiesel blends (up to B100), kerosene, and marine gas oil.
2.Static Dissipating / Anti-Static
Built with a conductive carbon layer, the hose safely dissipates static electricity generated by fuel flow – a critical safety feature for automotive, worksite, farm, and marine fuel transfer.
3.Abrasion & Weather Resistant Cover
The tough outer rubber cover resists abrasion from rocks, soil, concrete, metal edges, and deck surfaces. It also withstands UV radiation, ozone, saltwater, mud, and extreme temperatures.
4.Excellent Flexibility
Remains flexible even in cold conditions, allowing easy routing around engines, chassis, bulkheads, and hydraulic components without kinking.
5.Low Fuel Permeation
Low-permeation design minimizes fuel vapor loss, reducing fuel waste, environmental emissions, and fire hazards.
6.Wide Temperature Range
Operates reliably from -40°C to +100°C (-40°F to +212°F).
