Product Description

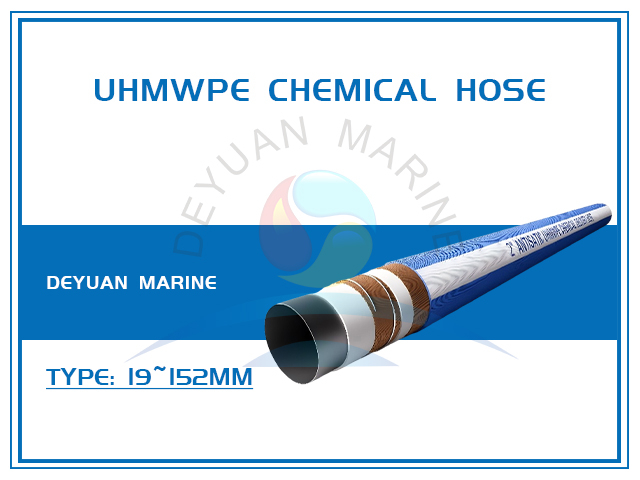

UHMWPE Chemical Antistatic Hose
Product Introduction:
Ultra-High Molecular Weight Polyethylene (UHMWPE) Chemical Antistatic Hose is a premium-grade industrial hose designed for the safe, efficient, and static-controlled transfer of aggressive chemicals, flammable solvents, acids, alkalis, and abrasive fluids. Combining the exceptional chemical resistance of UHMWPE with built-in antistatic properties, this hose is the ideal solution for hazardous environments where electrostatic discharge (ESD) poses a safety risk.
Product Parameters:
| Inner | Antistatic UHMWPE+EPDM |
| Cover | EPDM |
| Working Temperature | -40 ℃ ~90 ℃ |
| Safety Factor | 3:1 |
| Color | Blue, Green, Black, Etc |
| Reinforcement layer | High-strength spiral textile cord;High-strength spiral textile cord with helix steel wire |
| Application | Used for transporting corrosive media such as strong acids and alkalis,mainly used in industries such as new energy,food,pharmaceuticals,etc. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 40 | 19 | 3/4" | 10~20 | 40 |
| 25 | 1" | 10~20 | 40 | 25 | 1" | 10~20 | 40 |
| 32 | 1-1/4" | 10~20 | 40 | 32 | 1-1/4" | 10~20 | 40 |
| 38 | 1-1/2" | 10~20 | 40 | 38 | 1-1/2" | 10~20 | 40 |
| 51 | 2" | 10~20 | 40 | 51 | 2" | 10~20 | 40 |
| 64 | 2-1/2" | 10~20 | 40 | 64 | 2-1/2" | 10~20 | 40 |
| 76 | 3" | 10~20 | 40 | 76 | 3" | 10~20 | 40 |
| 102 | 4" | 10~20 | 40 | 102 | 4" | 10~20 | 40 |
| 152 | 6" | 10~20 | 40 | ||||
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Antistatic / Static Dissipative Design – Engineered with conductive elements (such as a static wire or carbon-doped layer) to safely ground electrostatic charges, preventing sparks that could ignite flammable vapors or damage sensitive equipment.
2.Ultra-High Molecular Weight Polyethylene (UHMWPE) Inner Tube – Provides outstanding resistance to a wide range of corrosive chemicals, including strong acids (e.g., sulfuric, hydrochloric, nitric), caustic alkalis, hydrocarbons, and organic solvents.
3.Superior Abrasion Resistance – The UHMWPE inner layer offers exceptional wear resistance, making the hose ideal for transferring abrasive slurries, fine particles, or gritty liquids without premature failure.
4.Ultra-Low Friction Coefficient – The smooth, non-stick inner surface reduces pressure loss, prevents material buildup, and ensures high flow efficiency, even with viscous or sticky media.
5.Broad Temperature Range – Suitable for continuous service from -40°C to +90°C , depending on the specific chemical and construction.
6.Lightweight & Flexible – Significantly lighter and more flexible than traditional rubber hoses, reducing operator fatigue and improving handling efficiency during loading/unloading operations.
7.Reinforced Construction – Typically reinforced with high-strength synthetic textile layers and a helix wire (often copper or stainless steel) for full vacuum resistance, kink prevention, and continuous static conductivity.
