Product Description

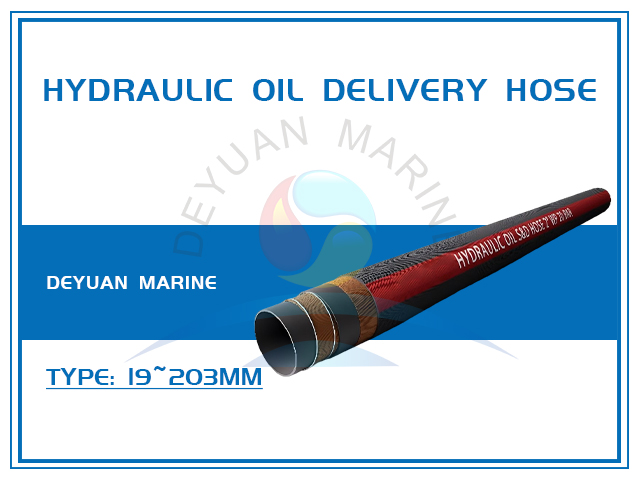

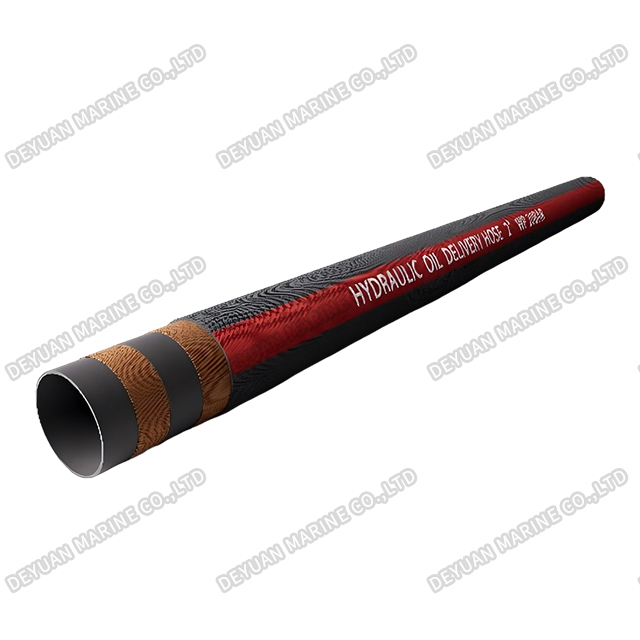

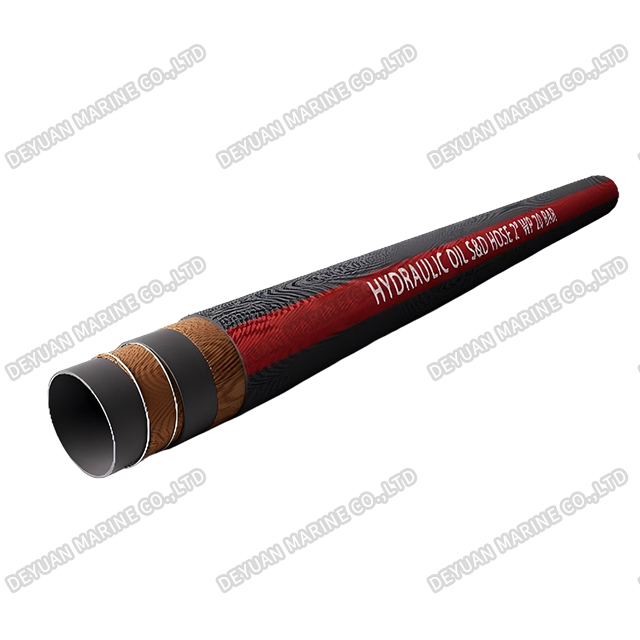

Hydraulic Oil Delivery Hose
Product Introduction:
Our Hydraulic Oil Delivery Hose is specifically engineered for the reliable conveying of hydraulic oil within low-to-medium pressure hydraulic systems, with a primary focus on return lines and suction lines. It safely transports hydraulic oil from actuators, control valves, hydraulic motors, and cylinders back to the reservoir or tank.
Unlike high-pressure hoses designed for pump discharge lines, our delivery hose is optimized for low working pressures, high oil flow volume, excellent oil resistance, and long service life in continuous return oil applications.
Product Parameters:
| Inner | NBR+SBR |
| Cover | SBR+CR |
| Working Temperature | -20 ℃ ~80℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | High-strength spiral textile cord with helix steel wire ;High-strength spiral textile cord |
| Application | Used for transporting diesel gasoline,widely used in various fuel transmission systems such as automobiles,engineering machinery,agriculturalmachinery,and ships. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 60 | 19 | 3/4" | 10~20 | 60 |
| 25 | 1" | 10~20 | 60 | 25 | 1" | 10~20 | 60 |
| 32 | 1-1/4" | 10~20 | 60 | 32 | 1-1/4" | 10~20 | 60 |
| 38 | 1-1/2" | 10~20 | 60 | 38 | 1-1/2" | 10~20 | 60 |
| 45 | 1-3/4" | 10~20 | 60 | 45 | 1-3/4" | 10~20 | 60 |
| 51 | 2" | 10~20 | 60 | 51 | 2" | 10~20 | 60 |
| 64 | 2-1/2" | 10~20 | 60 | 64 | 2-1/2" | 10~20 | 60 |
| 76 | 3" | 10~20 | 60 | 76 | 3" | 10~20 | 60 |
| 102 | 4" | 10~20 | 60 | 102 | 4" | 10~20 | 60 |
| 127 | 5" | 10~20 | 60 | 127 | 5" | 10~20 | 30 |
| 152 | 6" | 10~20 | 60 | 152 | 6" | 10~20 | 30 |
| 203 | 8" | 10~20 | 30 | ||||
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Designed for Return Line Conveying
Engineered specifically for the low-pressure side of hydraulic systems (working pressure up to 10–30 bar / 150–450 psi), making it ideal for delivering hydraulic oil back to the tank from cylinders, motors, valves, and oil coolers.
2.Excellent Hydraulic Oil Compatibility
The synthetic rubber inner tube resists swelling, softening, and degradation caused by mineral hydraulic oils, biodegradable hydraulic fluids, and conventional lubricating oils used in machinery and vehicles.
3.Smooth Bore for Efficient Flow
The smooth inner surface minimizes flow resistance and turbulence, ensuring that hydraulic oil returns freely to the reservoir without pressure buildup or cavitation risks – critical for system efficiency and component longevity.
4.Kink & Crush Resistance
Reinforced with spiral fabric or optional light steel wire helix, the hose maintains its round cross-section under bending or vacuum conditions, preventing collapse in suction applications and ensuring uninterrupted oil delivery.
5.Durable Cover for Harsh Environments
The outer rubber layer resists abrasion, ozone, UV radiation, moisture, dirt, and mechanical wear – ideal for construction sites, agricultural fields, and outdoor machinery operation.
6.Wide Temperature Range
Reliable operation from -40°C to +100°C (-40°F to +212°F), accommodating cold starts and continuous hot oil return cycles.
7.Flexible & Lightweight
Easier to route and install than high-pressure hoses, with excellent flexibility for tight spaces and dynamic machinery movements.
