Product Description

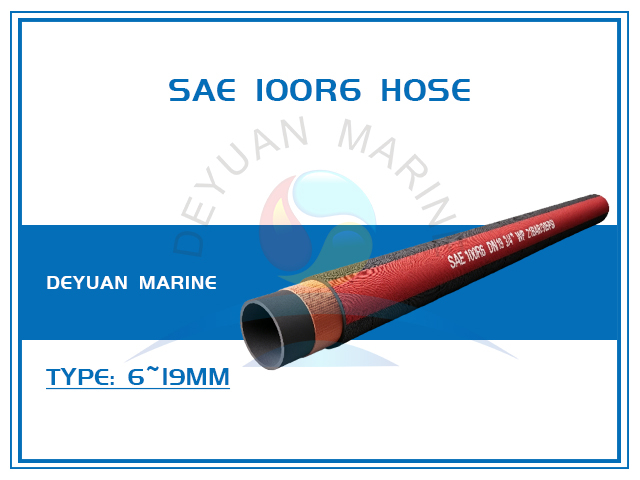

SAE 100R6 Durable Hose
Product Introduction:
Our SAE 100R6 Hose is a lightweight, flexible, low-pressure hydraulic hose specifically designed for the conveying of petroleum-based hydraulic oils in a wide range of mechanical equipment. It is engineered for use in return lines, drain lines, and low-pressure delivery circuits within hydraulic systems where high flexibility and easy routing are priorities.
This hose is widely used across construction machinery, agricultural equipment, industrial machines, material handling equipment, automotive systems, and pneumatic applications. It delivers cost-effective, reliable, and efficient hydraulic oil transfer in low-pressure environments.
Product Parameters:
| Inner | NBR+SBR |
| Cover | SBR+CR |
| Working Temperature | -20 ℃ ~80 ℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | Single layer braiding with high-strength textile cord |
| Application | Used for conveying petroleum based hydraulic oil in various mechanical equipment. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | |
| mm | inch | bar | m |
| 6 | 1/4" | 28 | 100 |
| 8 | 5/16" | 28 | 100 |
| 10 | 3/8" | 28 | 100 |
| 13 | 1/2" | 28 | 100 |
| 16 | 5/8" | 24 | 100 |
| 19 | 3/4" | 21 | 100 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||
Key Features:
1.Designed for Return & Low-Pressure Lines
Engineered specifically for low-pressure hydraulic circuits – ideal for conveying hydraulic oil from components back to reservoir (return lines) and other non-vacuum low-pressure applications.
2.Petroleum-Based Oil Compatibility
The synthetic rubber inner tube resists swelling, softening, and degradation caused by mineral hydraulic oils, lubricating oils, diesel fuels, and other petroleum-based fluids.
3.Lightweight & Highly Flexible
Single textile braid reinforcement makes this hose exceptionally flexible and easy to route around frames, engines, and hydraulic components – perfect for tight spaces.
4.Excellent Kink Resistance
Despite its light construction, the hose resists kinking during handling and installation, maintaining consistent flow in service.
5.Smooth Bore for Efficient Flow
The smooth inner surface minimizes flow resistance and turbulence, ensuring steady hydraulic oil return without pressure buildup.
6.Abrasion & Weather Resistant Cover
The outer rubber cover resists abrasion, UV radiation, ozone, oil splashes, and moisture – suitable for outdoor machinery and industrial environments.
7.Cost-Effective Solution
Lower cost than wire-reinforced hoses (SAE 100R1/R2/R4) while providing excellent performance in non-vacuum low-pressure applications.
8.Wide Temperature Range
Operates reliably from -40°C to +100°C (-40°F to +212°F).
