Product Description

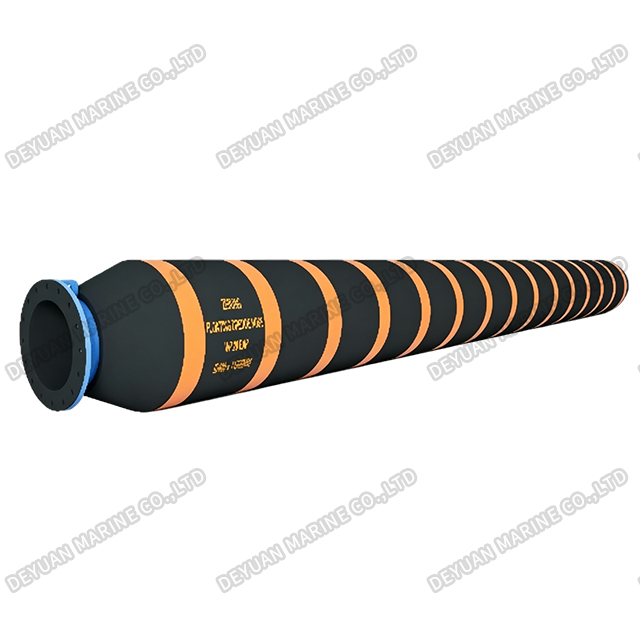

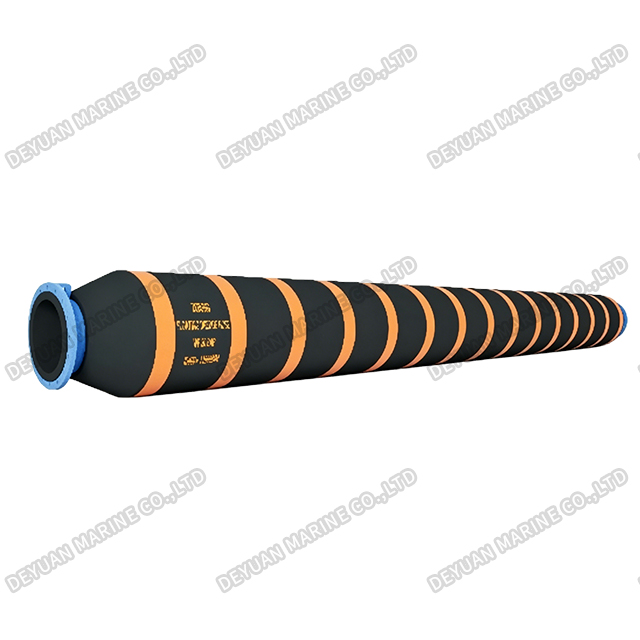

Floating Dredging Hose
Product Introduction:
Our Floating Dredging Hose is a high-performance, self-floating pipeline solution specifically engineered for sediment dredging and sludge removal in waterways, lakes, ports, and other water bodies. It plays an essential role in modern hydraulic engineering, offering reliable operation in demanding marine and freshwater environments.
Designed for Dredging Applications:
This floating hose is ideal for transporting sediment-laden slurries, silt, sand, and clay from the bottom of rivers, lakes, harbors, and coastal areas. It is commonly used in dredging vessels, cutter suction dredgers, and pumping stations for environmental restoration, port maintenance, and waterway deepening projects.
Product Parameters:
| Inner | NR+BR |
| Cover | BR+EPDM |
| Working Temperature | -20 ℃ ~80 ℃ |
| Safety Factor | 3:1 |
| Color | Black+Spiral With Helical Orange Stripe |
| Reinforcement layer | High-strength spiral textile cord |
| Application | Used for sediment dredging and sludge cleaning in rivers,lakes,ports.This product has the advantages of strong load-bearing capacity,corrosion resistance,oxidation resistance,long service life,and low maintenance cost,making it an essential engineering equipment in current water conservancy engineering. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | |
| mm | inch | bar | m |
| 200 | 8 | 10~20 | 11.8 |
| 250 | 10 | 10~20 | 11.8 |
| 300 | 12 | 10~20 | 11.8 |
| 350 | 14 | 10~20 | 11.8 |
| 400 | 16 | 10~20 | 11.8 |
| 450 | 18 | 10~20 | 11.8 |
| 500 | 20 | 10~20 | 11.8 |
| 600 | 24 | 10~20 | 11.8 |
| 800 | 32 | 10~20 | 11.8 |
| 1100 | 44 | 10~20 | 11.8 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||
Key Advantages:
1.High Load-Bearing Capacity – Engineered with multiple reinforcement layers (high-tensile textile or steel wire) and rugged rubber compounds to withstand internal pressure, external abrasion, and the mechanical stress of floating operations.
2.Excellent Corrosion Resistance – The rubber cover resists saltwater, chemicals, UV radiation, and microbial attack, ensuring long-term durability in both fresh and saltwater environments.
3.Superior Oxidation Resistance – Advanced anti-aging compounds prevent cracking and hardening caused by prolonged sun and air exposure.
4.Long Service Life – Robust construction and wear-resistant materials extend operational life, reducing replacement frequency.
5.Low Maintenance Cost – The floating design eliminates the need for complex support structures, and the hose's durability minimizes routine maintenance efforts.
Reliable Floating Performance:
Built-in buoyancy materials or an integrally bonded flotation layer keeps the hose afloat on the water surface, reducing drag, preventing seabed abrasion, and simplifying deployment and retrieval. This design also protects subaqueous ecosystems by minimizing contact with the bottom.
Flexible Connection Options:
We offer floating dredging hoses with flanged or threaded end fittings, and can customize flange materials (carbon steel, stainless steel, etc.) and standards (ANSI, DIN, JIS, BS) to match your existing pipeline systems.
Typical Applications:
*River channel sediment dredging
*Lake and reservoir sludge removal
*Port and harbor deepening
*Land reclamation and sand filling
*Environmental cleanup of polluted water bodies
*Pumping and transport of mining tailings
As an indispensable piece of equipment in contemporary hydraulic engineering, our floating dredging hose combines strength, buoyancy, and longevity to ensure efficient and cost-effective dredging operations worldwide. Contact us to discuss your project requirements.
