Product Description

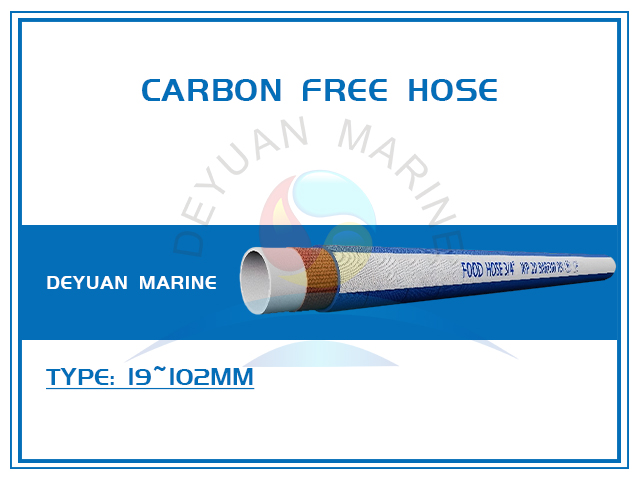

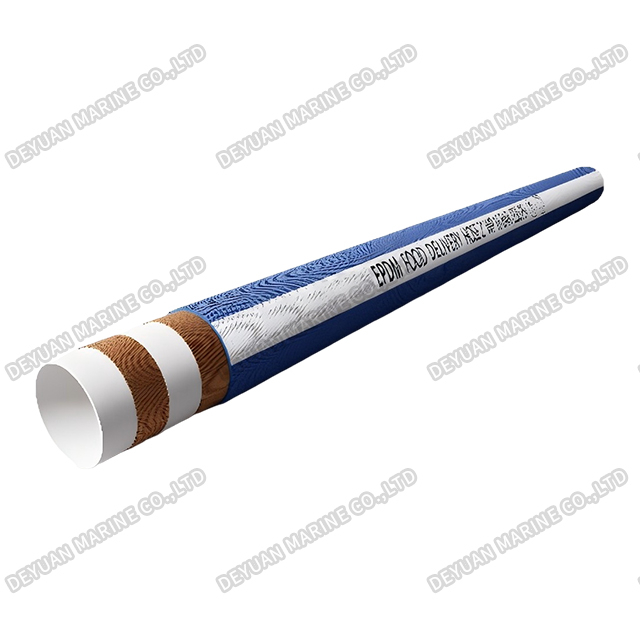

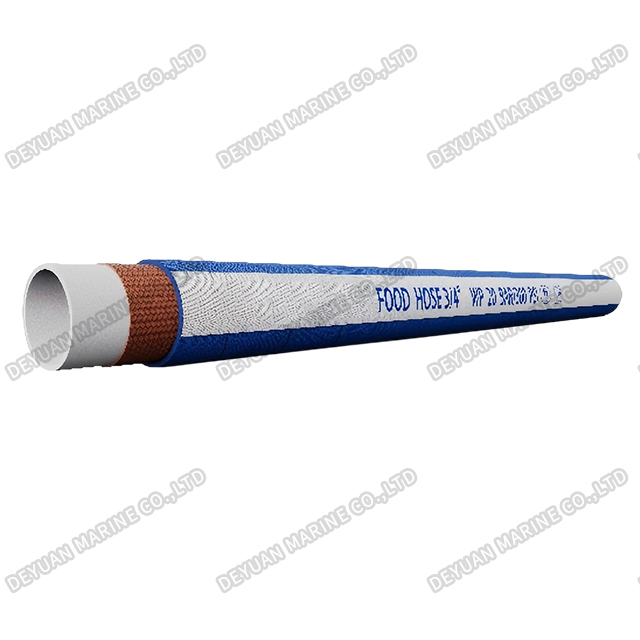

(Non Conductive) Carbon Free Hose
Product Introduction:
Non-Conductive Carbon Free Hose is a specialty industrial hose engineered for applications requiring complete electrical insulation. Unlike standard conductive or antistatic hoses that contain carbon black or other conductive additives, this hose is deliberately manufactured without any conductive materials (carbon free), resulting in extremely high electrical resistance and superior dielectric properties. It is the ideal choice for electrical safety, high-voltage environments, and operations where stray currents or galvanic corrosion must be avoided.
Product Parameters:
| Inner | EPDM |
| Cover | EPDM |
| Working Temperature | -40 ℃ ~150 ℃ |
| Safety Factor | 3:1 |
| Color | Blue, Green Etc |
| Reinforcement layer | High-strength spiral textile cord;Braiding with high-strength |
| Application | Excellent electrical insulation properties,environmentally friendly,excellent high temperature resistance,and good corrosion resistance.Widely used in chemical,petroleum,metallurgical,food,and pharmaceutical industries. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 13 | 1/2" | 20 | 100 | 19 | 3/4" | 10~20 | 40 |
| 16 | 5/8" | 20 | 100 | 25 | 1" | 10~20 | 40 |
| 19 | 3/4" | 20 | 100 | 32 | 1-1/4" | 10~20 | 40 |
| 25 | 1" | 20 | 100 | 38 | 1-1/2" | 10~20 | 40 |
| 51 | 2" | 10~20 | 40 | ||||
| 57 | 2-1/4" | 10~20 | 40 | ||||
| 64 | 2-1/2" | 10~20 | 40 | ||||
| 76 | 3" | 10~20 | 40 | ||||
| 102 | 4" | 10~20 | 40 | ||||
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Non-Conductive / Electrically Insulating – Engineered to have extremely high electrical resistance (typically >10⁶ Ω per unit length), preventing the flow of electrical current through the hose. This protects operators from electric shock in high-voltage or stray-current environments.
2.Carbon Free Construction – Manufactured without carbon black, conductive fillers, or static wires. The tube, reinforcement, and cover are all non-conductive materials, ensuring complete electrical isolation.
3.High Dielectric Strength – Capable of withstanding high voltage without electrical breakdown, making it suitable for use near power lines, substations, electrified railways, and other high-voltage equipment.
4.Excellent Chemical Resistance – Depending on the tube material (e.g., EPDM, NBR, UHMWPE, PTFE), offers good to excellent resistance to a wide range of chemicals, oils, water, and other industrial fluids.
5.Wide Temperature Range – Available in various constructions to suit temperatures from -40°C to +150°C (-40°F to +302°F) depending on the specific material.
6.Durable & Reinforced Construction – Reinforced with high-strength synthetic textile braids (non-conductive) for excellent pressure resistance, kink resistance, and long service life.
7.Flexible & Easy to Handle – Maintains flexibility across its operating temperature range, reducing operator fatigue during installation and use.
