Product Description

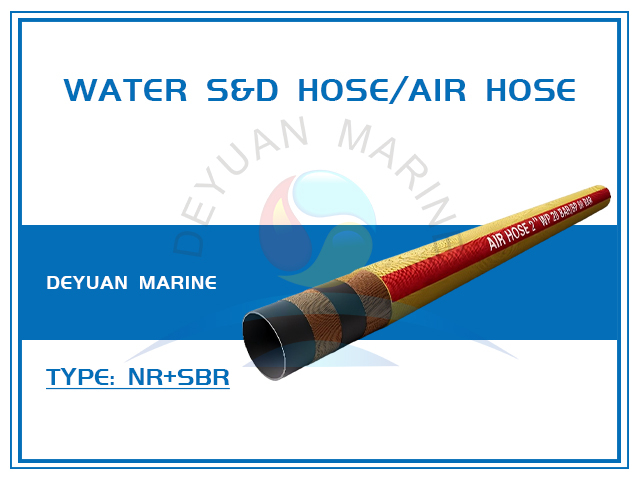

Water Suction And Discharge Hose/Air Hose
Product Introduction:
Water Suction and Discharge Hose and Air Hose are two essential product families designed to meet the demanding fluid and air transfer requirements of industrial machinery, agricultural irrigation systems, and construction job sites. Whether you need to pump water from a pond, drain a flooded excavation, or power pneumatic tools from a compressor, these hoses deliver reliable performance, durability, and safety.

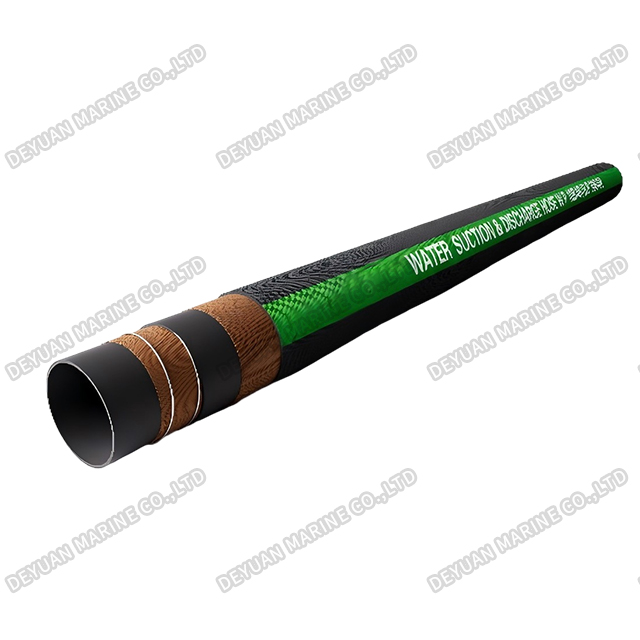

Water Suction and Discharge Hose – Engineered for both suction (vacuum) and discharge (pressure) of water, sludge, light slurries, and non-aggressive fluids. Reinforced with a helix wire to prevent collapse under vacuum.

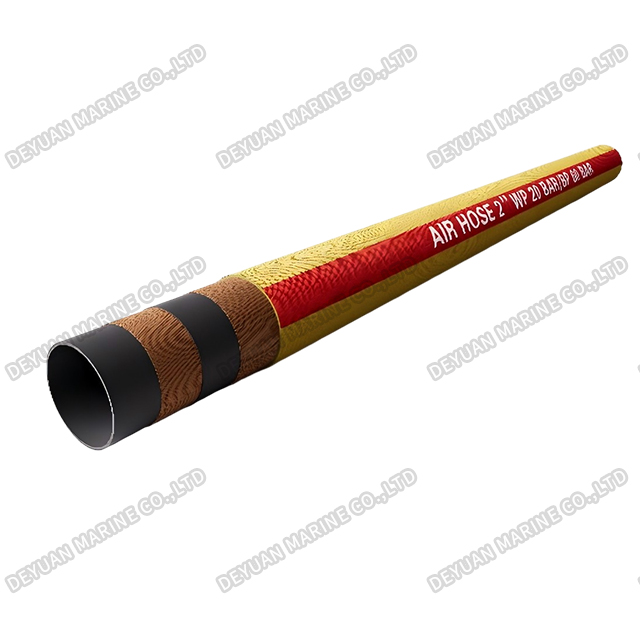

Air Hose – Designed specifically for compressed air transmission to power pneumatic equipment, tools, and control systems in factories, farms, and construction sites.
Both hose types share a commitment to flexibility, long service life, and resistance to weather, abrasion, and the rigors of daily industrial use.
The Water Suction and Discharge Hose and Air Hose represent two indispensable fluid and power transmission solutions for modern industry. Whether you are moving water across a farm, dewatering a construction pit, or powering pneumatic tools on a factory floor, these hoses deliver the performance, durability, and safety you need. Choose the right hose for your application, follow proper installation and maintenance procedures, and enjoy years of reliable service.
Product Parameters:
| Inner | NR+SBR |
| Cover | NR+SBR |
| Working Temperature | -20 ℃ ~80 ℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | High-strength spiral textile cord;High-strength spiral textile cord with helix steel wire |
| Application | Mainly used to transport air,water for industry of machinery,agriculture,construction etc. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 19 | 3/4" | 10~20 | 60 | 19 | 3/4" | 10~20 | 60 |
| 25 | 1" | 10~20 | 60 | 25 | 1" | 10~20 | 60 |
| 32 | 1-1/4" | 10~20 | 60 | 32 | 1-1/4" | 10~20 | 60 |
| 38 | 1-1/2" | 10~20 | 60 | 38 | 1-1/2" | 10~20 | 60 |
| 51 | 2" | 10~20 | 60 | 51 | 2" | 10~20 | 60 |
| 64 | 2-1/2" | 10~20 | 60 | 64 | 2-1/2" | 10~20 | 60 |
| 76 | 3" | 10~20 | 60 | 76 | 3" | 10~20 | 60 |
| 102 | 4" | 10~20 | 60 | 102 | 4" | 10~20 | 60 |
| 127 | 5" | 10~20 | 60 | 127 | 5" | 10~20 | 30 |
| 152 | 6" | 10~20 | 60 | 152 | 6" | 10~20 | 30 |
| 203 | 8" | 10~20 | 30 | ||||
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
