Product Description

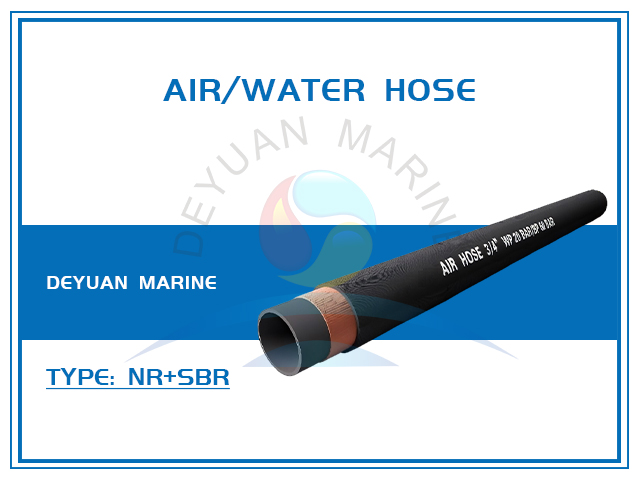

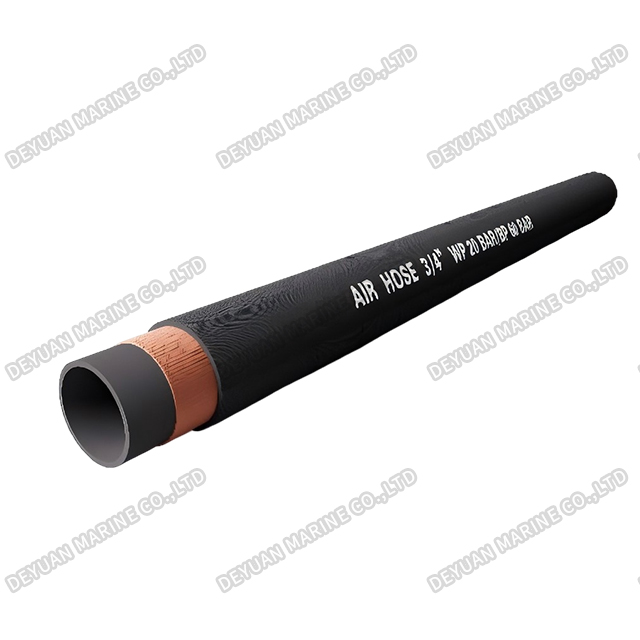

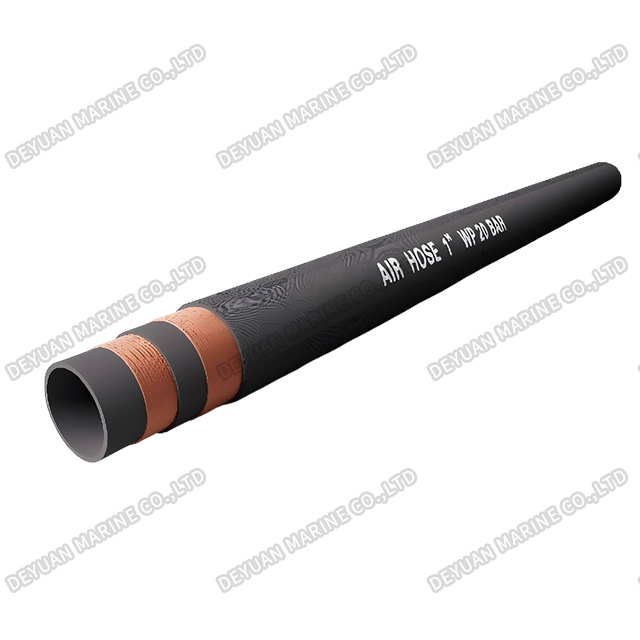

Air And Water Rubber Hose
Product Introduction:
Air/Water Hose is a versatile, high-performance hose specifically designed for the reliable transfer of compressed air, water, and other non-aggressive fluids across a wide range of industries. Engineered for durability and flexibility, this hose is the go-to solution for industrial machinery, agricultural irrigation systems, and construction sites. Whether you need to power pneumatic tools, supply water to crops, or handle temporary utility lines at a job site, the Air/Water Hose delivers consistent performance under demanding conditions.
Product Parameters:
| Inner | NR+SBR |
| Cover | NR+SBR |
| Working Temperature | -20 ℃ ~80 ℃ |
| Safety Factor | 3:1 |
| Color | Black |
| Reinforcement layer | Single layer braiding with high-strength textile cord;Double vlayer braiding with high-strength textile cord |
| Application | Mainly used to transport air,water for industry of machinery,agriculture,construction etc. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 6 | 1/4" | 20 | 100 | 6 | 1/4" | 20 | 100 |
| 8 | 5/16" | 20 | 100 | 8 | 5/16" | 20 | 100 |
| 10 | 3/8" | 20 | 100 | 10 | 3/8" | 20 | 100 |
| 13 | 1/2" | 20 | 100 | 13 | 1/2" | 20 | 100 |
| 16 | 5/8" | 20 | 100 | 16 | 5/8" | 20 | 100 |
| 19 | 3/4" | 20 | 100 | 19 | 3/4" | 20 | 100 |
| 22 | 7/8" | 10 | 100 | 22 | 7/8" | 20 | 100 |
| 25 | 1" | 10 | 100 | 25 | 1" | 20 | 100 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Dual Media Compatibility – Designed to safely handle both compressed air and water, as well as other non-aggressive fluids such as mild coolants and light slurries.
2.Excellent Pressure Resistance – Reinforced with high-strength synthetic textile braids, providing reliable working pressure typically from 150 PSI to 300 PSI (10 to 20 bar), suitable for most industrial and agricultural applications.
3.Wide Temperature Range – Operates effectively from -20°C to +70°C (-4°F to +158°F), with specialized versions available for extreme temperatures.
4.Durable, Weather-Resistant Cover – The outer cover is resistant to abrasion, ozone, UV radiation, and general weathering, ensuring long service life in outdoor construction and agricultural environments.
5.Flexible and Lightweight – Remains flexible even in cold weather, reducing operator fatigue and making it easy to coil, store, and handle on job sites.
6.Non-Marking Construction (select grades) – Ideal for indoor industrial use where floor or product marking is a concern.
7.Kink and Crush Resistance – Designed to resist kinking and crushing during normal use, maintaining consistent flow and pressure.
8.Broad Size and Length Availability – Available in standard inner diameters from ¼ inch (6.4 mm) to 1 inch (25.4 mm), and in custom lengths to suit any application.
